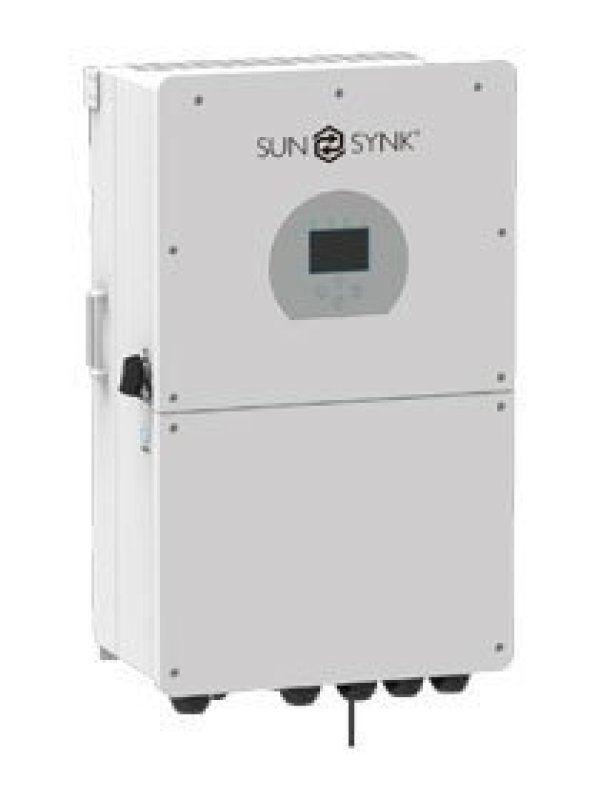

Sunsynk Plus 16KW 48VDC Single Phase Classic Hybrid Inverter With Wifi Included

Features

Description

Please note that your stock will be available within 23 business days after your purchase. Sunsynk 16 kW Plus Single-Phase Hybrid Inverter A high-capacity 48 V low-voltage hybrid inverter designed for off-grid, grid-support, backup and self-consumption applications. The inverter supports both single-phase and three-phase parallel configurations, providing a scalable solution for larger residential and commercial energy systems.

Features High PV Input Capacity: Supports a maximum PV input power of 25.6 kW. Triple MPPT Technology: Equipped with 3 MPPTs, each supporting a maximum PV input current of 36 A. High Battery Current: Supports up to 290 A maximum charge/discharge current. Generator Integration: Allows connection and integration of a backup generator.

Scalable System: Supports parallel connection of up to 16 units for increased system capacity. Multiple Operating Modes: Programmable for On-Grid, Off-Grid and UPS operation. Outdoor Protection: IP65-rated enclosure for enhanced protection in outdoor installations. Remote Monitoring: Includes a Wi-Fi dongle as standard, enabling remote monitoring through the Sunsynk Cloud.

Lithium Battery Compatibility: Compatible with leading lithium battery brands, including Hubble Lithium, Pylontech LV and Freedom Won. Downloads Specifications Weight: 54.1 kg Rated Power: 16000W Min MPPT Voltage: 250V Max MPPT Voltage: 450V DC Startup Voltage: 150V DC Shutdown Voltage: 125V Max Input Voltage: 450V Max DC Power: 25,600W Max AC Power (5 Minutes): 16001W Surge AC Power (1 Second): 32000W Max DC Current: 108A Max DC Inputs: 6 Has DC Fuses: 0 Connector: Screw Terminal Included Connectors: 12 Euro Efficiency: 97.6% Transformer: None MPPT Quantity : 3 Has Integrated DC Switch: Yes Warranty: 5 Years IP Rating IP20 Warranty: Equipment warranty registration needs to take place within 7 (seven) days of commissioning of the project, failure to register the warranty may result in the warranty being made void.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. We will not be held liable for any product malfunctions as a result of incorrectly installed systems. 5-year standard warranty and extended to 10-years when paired with the Sunsynk batteries.

Warranty Registration | Sunsynk Delivery: Free delivery to retail customers within a 100 km radius from our store in Rayton, Gauteng. Clients who are outside our free delivery area, must arrange their own collection. Please take note of warranty claims that transport to The Sun Pays office will be the customer's cost.
