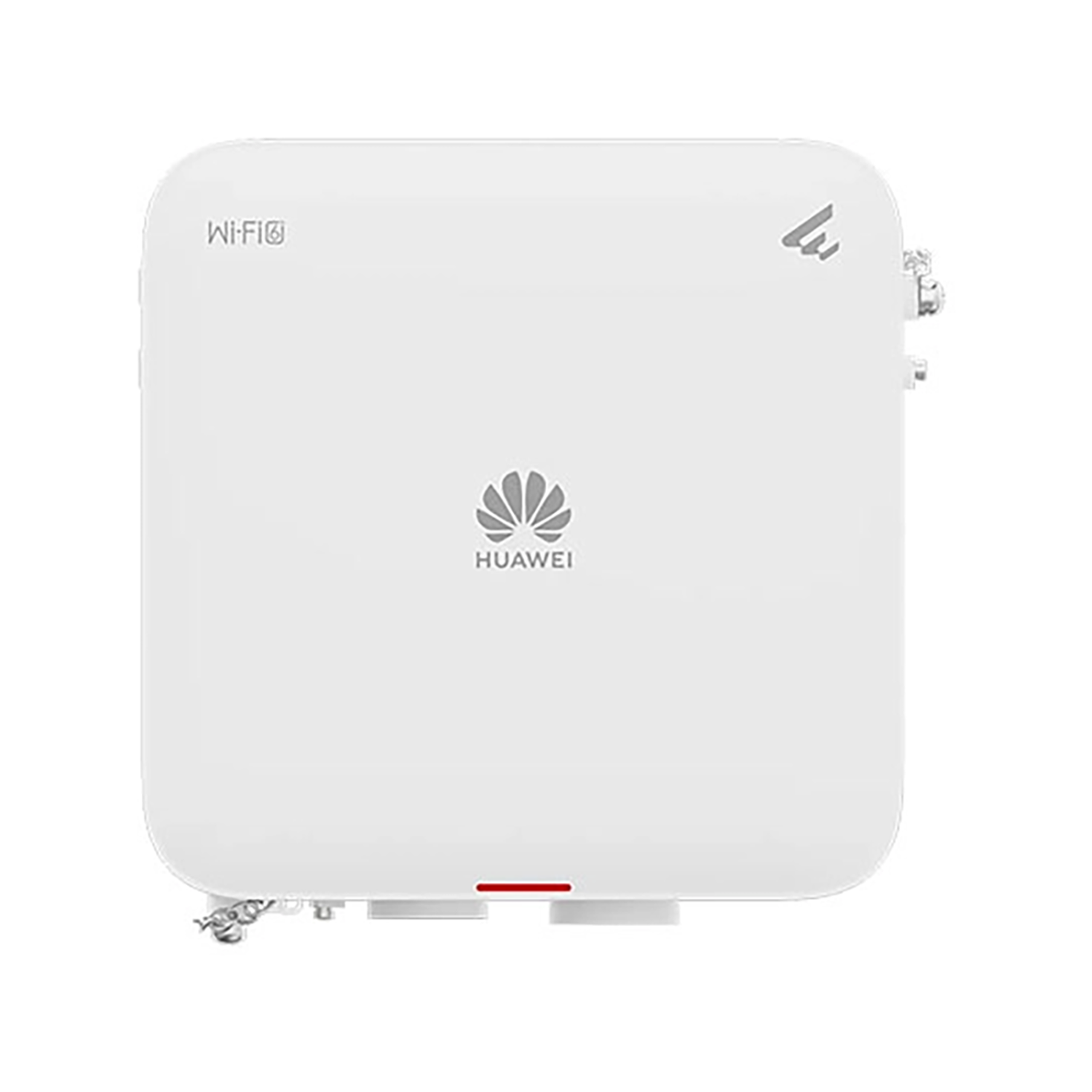

Huawei AP761 Ekit Dual-band Wi-fi Access Point

The Huawei eKitEngine AP761 is a robust outdoor Wi-Fi 6 access point designed to deliver high-speed wireless connectivity in challenging environments. It supports the 802.11ax standard and operates on dual bands (2.4 GHz and 5 GHz), providing a maximum device rate of 1.775 Gbps. Featuring built-in directional antennas with high gain (10 dBi for 2.4 GHz and 11 dBi for 5 GHz), it ensures extensive coverage up to 180 meters.

Built to withstand extreme conditions, the AP761 boasts an IP68 rating for dust and water resistance, making it an excellent choice for outdoor deployments requiring reliable and secure wireless access. Key Features Outdoor Wi-Fi 6 (802.11ax) dual-band access point Maximum device rate of 1.775 Gbps (575 Mbps at 2.4 GHz, 1200 Mbps at 5 GHz) Built-in directional antennas with high gain for extensive coverage IP68-rated enclosure for exceptional dust and water resistance Supports up to 1024 maximum access users (120 recommended) Includes Bluetooth Low Energy (BLE) 5.2 support Specifications Brand Huawei Model eKitEngine AP761 SKU 02355VFB Wi-Fi Standard 802.11b/g/n/ax (2.4 GHz), 802.11a/n/ac/ac Wave 2/ax (5 GHz) Device Rate 1.775 Gbps Antenna Gain 10 dBi (2.4 GHz), 11 dBi (5 GHz), 5 dBi (BLE) Ingress Protection IP68 Operating Temperature -40 C to 65 C
