Ajax Dualcurtain Outdoor Bi-directional Wireless Motion Detector

Features

Description

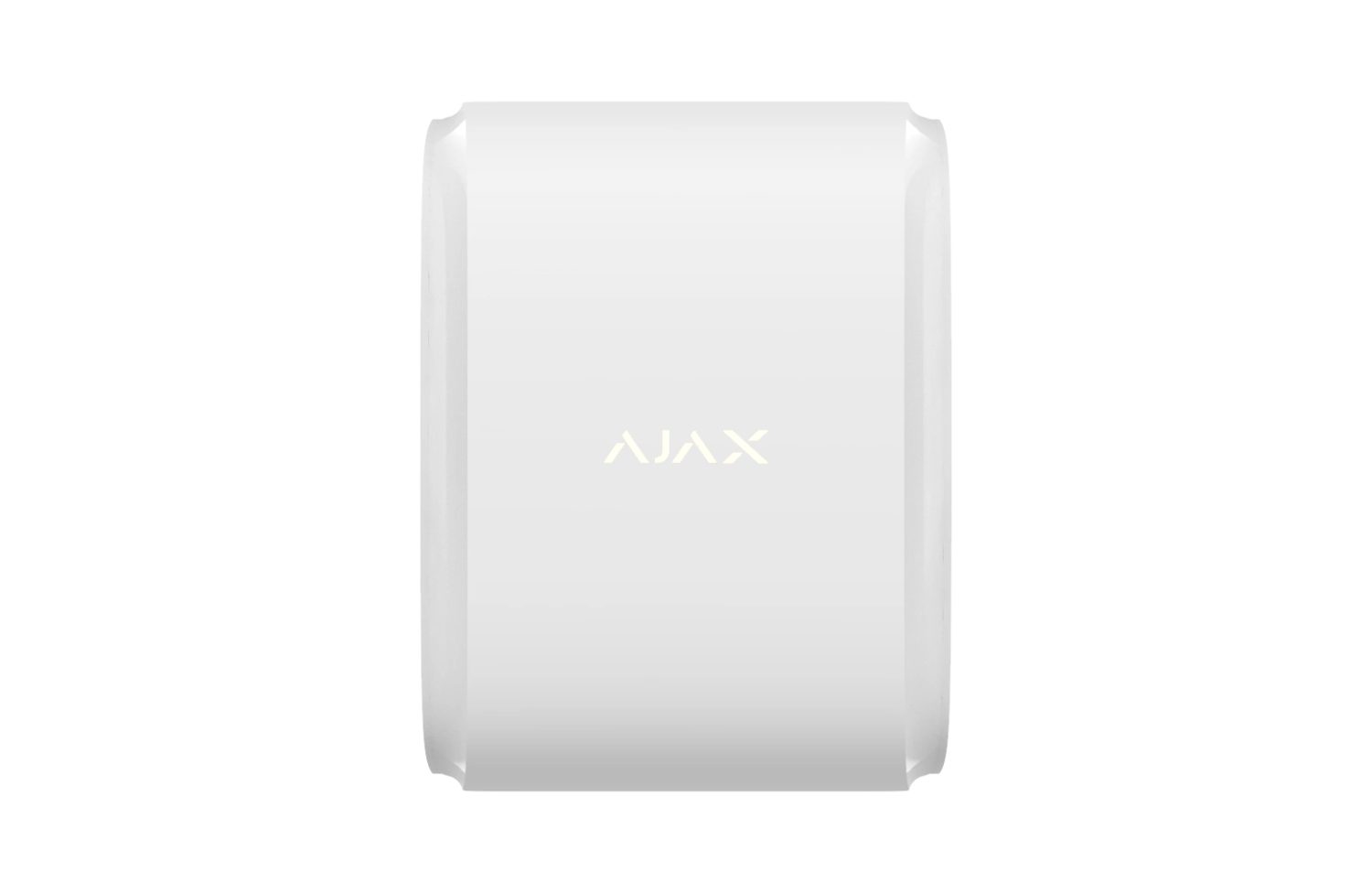

Secure Your Perimeter with Unmatched Precision Introducing the AJAX DualCurtain Outdoor, a state-of-the-art wireless motion detector designed to provide a formidable, invisible barrier around your property. This device offers precise, bi-directional perimeter control without interfering with the movement of people already inside.

Two independent optical systems with narrow viewing sectors allow you to meticulously adjust a detection zone of up to 30 meters (15 meters in each direction), effectively guarding windows, doors, archways, and fences while excluding common sources of false alarms. Intelligent False Alarm Filtration At the core of the DualCurtain Outdoor is the unique ELSA (Extended Live Signal Analysis) software.

This advanced digital algorithm analyzes signals from two independent PIR sensors within each optical system. An alarm is triggered only when both sensors on the same side simultaneously detect human motion, effectively screening out false triggers from pets up to 80cm tall, swaying trees, and other natural interferences.

This ensures that you are only alerted to genuine threats. Eliminate Blind Spots with Near Area Detection A common vulnerability in perimeter detectors is the blind spot directly beneath the device. AJAX solves this with its patented Near Area Detection technology. When enabled, the upper PIR sensor gains an additional narrow viewing sector angled 40 degrees downward, ensuring any attempt to cross the perimeter close to the detector's body is instantly identified.

Advanced Anti-Sabotage Protection The DualCurtain Outdoor is engineered to resist tampering and sabotage. An integrated tamper alarm will trigger if the device is detached from its mount. Furthermore, advanced anti-masking sensors immediately detect attempts to obstruct the view by painting, covering, or placing obstacles in front of the lenses.

The system also features protection against device forgery and detects communication loss with the hub in seconds. Robust, Weatherproof, and Long-Lasting Built to withstand the elements, the DualCurtain Outdoor operates flawlessly in a wide temperature range from -25C to +60C and is housed in an IP54-rated enclosure, protecting it from dust and splashes.

It is powered by two pre-installed CR123A batteries that provide up to 4 years of autonomous operation, offering you long-term, reliable security. Effortless Installation and Remote Management Installation is made simple with the SmartBracket mounting panel, which allows for setup without disassembling the detector's body.

Connecting to your AJAX hub is as easy as scanning a QR code with the app. All settings, including sensitivity and detection zones, can be configured and tested in real-time through the app, with the ability to reconfigure parameters remotely at any time. Technical Specifications Classification Electro-optical radio channel security detector Installation Outdoor / Indoor Sensing Element 4 x PIR sensors (2 per side) Motion Detection Distance Up to 15 m for each side (adjustable) Detection Angles (Horizontal) 4.5 Pet Immunity Up to 80 cm height Anti-Sabotage Features Anti-masking system, Protection against forgery, Jamming detection, Tamper-resistant (front and back) Communication Technology Jeweller radio technology Communication Range Up to 1,700 m in an open space Operating Frequencies 868.0 868.6 MHz Power Supply 2 CR123A batteries, 3 V (pre-installed) Battery Life Up to 4 years Protection Class IP54 Operating Temperature Range -25C to +60C Operating Humidity Up to 95% Dimensions 174 x 123 x 88 mm Weight 615 g Compatibility Hub Plus, Hub 2, Hub 2 Plus, ReX (with OS Malevich 2.11 and higher)
