AMD Ryzen 5 9600 Cpu - 6-CORE Socket Socket AM5 3.8GHZ 100-100000718BOX

Features

Description

AMD RYZEN 5 9600 CPU - 6-core Socket Socket AM5 3.8GHz 100-100000718BOX The AMD Ryzen 5 9600 is a six-core, 12-thread desktop processor designed for gaming, productivity and responsive everyday computing. Built on AMD's Zen 5 architecture, it combines a 3.8 GHz base clock with boost speeds of up to 5.2 GHz.

The boxed processor includes AMD Radeon graphics and an AMD Wraith Stealth cooler, providing the essential components needed to begin an AM5 desktop build. Six-Core Zen 5 Processing Six processor cores and 12 threads provide the resources required for modern games, office applications, content creation and general multitasking.

AMD's Zen 5 architecture and Precision Boost 2 technology allow the processor to adjust its operating frequency according to workload, temperature and available power. The processor contains 480 KB of L1 cache, 6 MB of L2 cache and 32 MB of L3 cache. Its CPU cores are manufactured using a TSMC 4 nm FinFET process, while the separate input/output die uses a TSMC 6 nm process.

Up to 5.2 GHz Boost Performance The Ryzen 5 9600 operates at a 3.8 GHz base clock and can boost up to 5.2 GHz under suitable operating conditions. Its 65 W default thermal design power provides a practical foundation for performance-focused desktop systems without requiring the higher power allocation of some enthusiast processors.

AM5 Platform with DDR5 and PCIe 5.0 Designed for the Socket AM5 platform, the processor supports compatible A620, B650, B650E, X670, X670E, X870 and X870E motherboards. PCI Express 5.0 connectivity provides support for high-bandwidth expansion and storage devices when paired with a motherboard that offers the required PCIe configuration.

The integrated memory controller supports two DDR5 memory channels and a maximum memory capacity of 256 GB. Official memory speeds reach DDR5-5600 with supported two-module configurations, while AMD EXPO technology provides memory tuning options when compatible memory and motherboard hardware are used.

Integrated AMD Radeon Graphics Built-in AMD Radeon graphics provide display capability without requiring a separate graphics card. The integrated graphics section contains two graphics cores operating at 2200 MHz and supports DisplayPort Alternate Mode through a compatible USB Type-C connection. A discrete graphics card can still be added for more demanding gaming, rendering or graphics workloads.

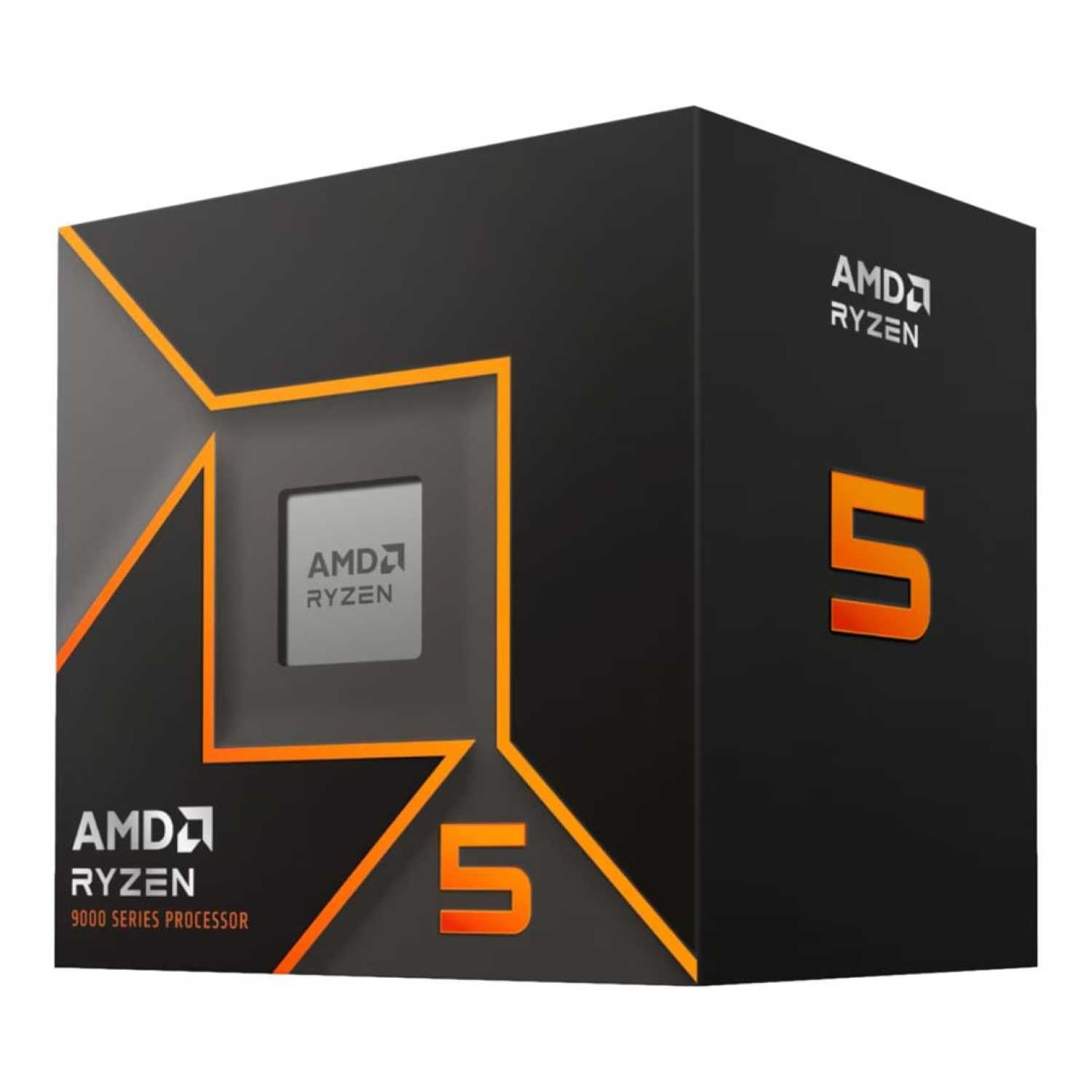

AMD Wraith Stealth Cooler Included The boxed 100-100000718BOX version includes an AMD Wraith Stealth CPU cooler. This provides a compatible cooling solution for standard operation, although customers may choose an alternative AM5-compatible cooler to meet particular noise, temperature or system-design requirements.

Performance Tuning Options The processor is unlocked for overclocking and supports AMD Ryzen Master, Precision Boost Overdrive, Curve Optimizer voltage offsets and AMD EXPO memory profiles. Overclocking or undervolting outside AMD's published specifications can affect stability, hardware life and warranty coverage, so settings should only be adjusted with appropriate cooling and compatible hardware.

Key Features: Six Zen 5 CPU cores and 12 processing threads support gaming, productivity and multitasking. 3.8 GHz base clock with a maximum boost frequency of up to 5.2 GHz. 38 MB combined L2 and L3 cache helps provide efficient access to frequently required data. Socket AM5 platform supports DDR5 memory and PCI Express 5.0 connectivity.

Integrated AMD Radeon graphics provide built-in display capability. AMD Wraith Stealth cooler is included with the boxed processor. 65 W default TDP supports capable performance within a practical power envelope. Technical Specifications: Specification Details Brand AMD Model Ryzen 5 9600 Manufacturer Part Number 100-100000718BOX Product Type Boxed desktop processor Processor Family AMD Ryzen Processor Series AMD Ryzen 9000 Series Former Codename Granite Ridge AM5 Market Segment Enthusiast desktop Processing Performance Processor Architecture AMD Zen 5 CPU Cores 6 Processing Threads 12 Simultaneous Multithreading Supported Base Clo
