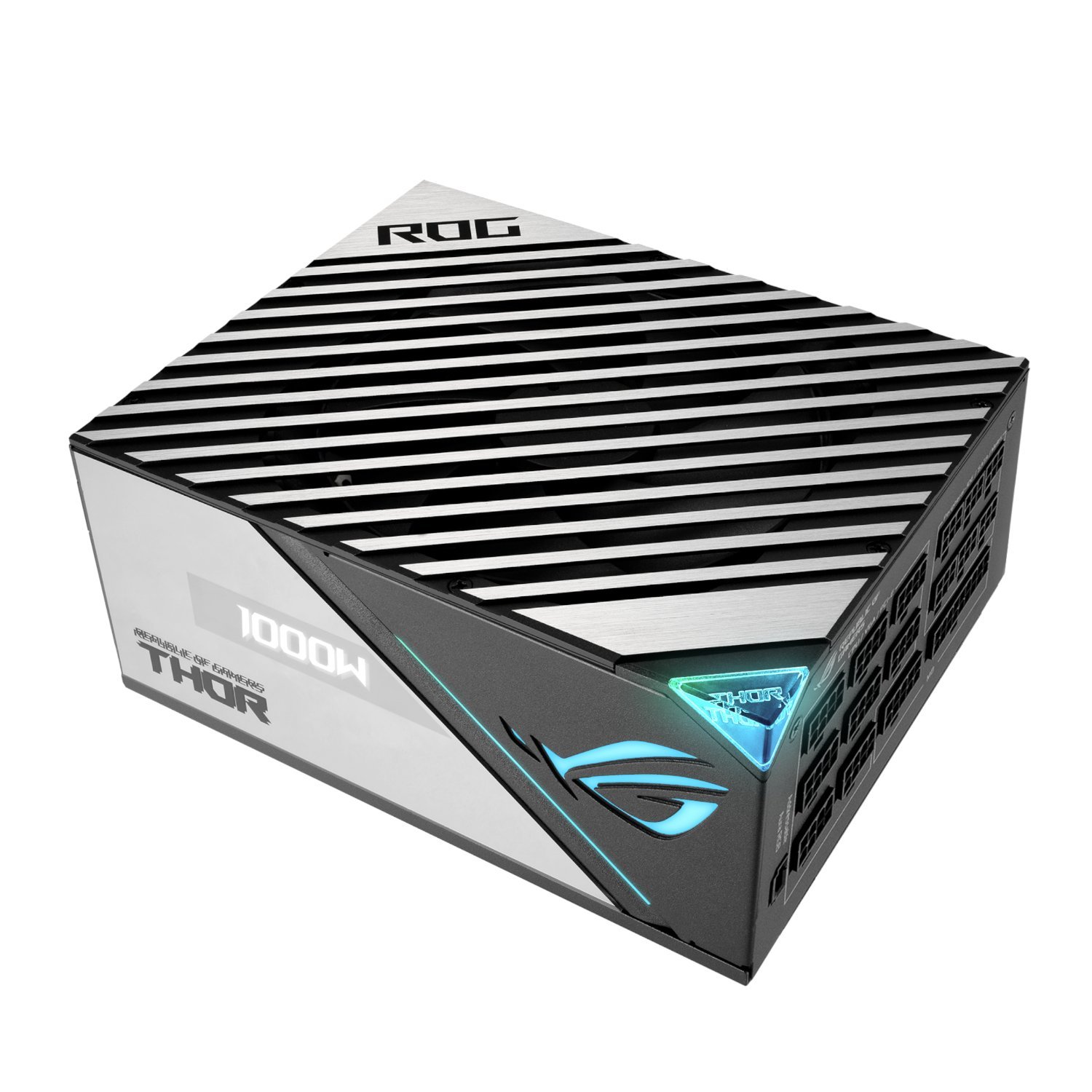

Asus Rog Thor Platinum II 1000W 80 Plus Fully Modular Power Supply

Features

Description

Unleash elite-level power and whisper-quiet efficiency with the Asus ROG Thor Platinum II 1000W 80 Plus Fully Modular Power Supply. Engineered for high-performance gaming and content creation rigs, this next-gen PSU is equipped with upgraded components, massive cooling enhancements, and stealthy acoustics that earn it the Lambda A++ noise ratingmaking it one of the quietest power supplies in its class.

A standout feature is the mirrored OLED panel, framed stylishly on the side, providing real-time power draw monitoring while adding visual flair to your premium build. Under the hood, the ROG heatsinks deliver 2x the surface area of traditional PSU designs, promoting lower thermals, extended component lifespan, and longer 0dB fan operation.

The 135mm Axial-tech fan with PWM control ensures optimized cooling and silent operation, shutting off completely under 50% load. Enhanced with dual ball bearings rated for 80,000 hours, the Thor Platinum II maintains performance longevity far beyond sleeve and fluid dynamic fans. Built to push boundaries, this PSU supports the latest PCIe 5.0 graphics cards via a bundled 16-pin 600W power cable, setting the stage for next-gen hardware.

Power delivery is elevated with superior PCIe connectors that reduce temperatures by 29%, ensuring reliable performance even under extreme GPU loads. Certified 80 PLUS Platinum, this PSU offers up to 92% efficiency at 50% load and 89% at full load, minimizing waste heat while maximizing stability and energy savings.

Inside, premium low-ESR Japanese capacitors further enhance electrical performance and durability. The result is a powerhouse ready to fuel intense workloads or demanding AAA games with unwavering efficiency. Aesthetically and functionally ahead of the curve, the Asus ROG Thor 1000W Platinum II features Aura Sync RGB support, allowing you to personalize your lighting and synchronize it with the rest of your ROG ecosystem.

Flexible, UL-certified etched modular cables simplify installation and improve thermal handling during intense cable routing. With a 10-year warranty, comprehensive safety protections (OPP, OVP, SCP, OTP, etc.), and cutting-edge design, the ROG Thor 1000W is the definitive PSU for gamers, creators, and PC enthusiasts building for performance, silence, and future-proof compatibility.

FEATURES: Lambda A++ Certification confirms the latest Thor wields menacing power in absolute stealth. ROG heatsinks cover critical components, delivering lower temperatures and reduced noise. A 135mm Axial-tech fan with PWM control delivers lower noise and keeps thermals in check. Built with low-ESR capacitors and other premium components to achieve 80 Plus Platinum Certification.

OLED display monitors power draw in real time. Aura Sync compatibility lets you customize and sync lighting effects with other compatible hardware. SPECIFICATIONS: PFC Type: Active PFC Efficiency: 80Plus Platinum MTBF: >120,000hrs @ 25C Protection Features: OPP/OVP/UVP/SCP/OCP/OTP Hazardous Materials: ROHS AC Input Range: 100-240Vac DC Output Voltage: +3.3V +5V +12V -12V +5Vsb Maximum Load: 25A 25A 83A 0.3A 3A Combined Load: 125W 125W 996W 3.6W 15W Total Output: 1000W Cable Connectors: MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (component side) PCI-E 6+2-pin x 8 SATA x 12 PERIPHERAL x 6 Aura Sync: ARGB Cybernetics Noise Level Certification: A++ 0dB Technology: Supported.

The fan shuts off entirely when the PSU is under certain load 0dB Fan Button: Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels Dimensions: 19 x 15 x 8.6 cm Weight: 2370 g WHAT'S IN THE BOX: Asus ROG Thor Platinum II 1000W 80 Plus Fully Modular Power Supply x1 Power Cord x 1 Motherboard Power Cable (610mm) x1 CPU Cable (650mm) x2 PCIE Cable 16-pin (675mm) x1 PCIE 1-to-1 Cable (675mm) x4 PCIE 1-to-2 Cable (675+75mm) x2 SATA 1-to-4 Cable (400+120+120+120mm) x3 Peripheral 1-to-3 Cable (450+120+120mm) x2 Addressable RGB Cable (800mm) x1 ROG sticker x 1 ROG cable tie x 6 Sleeved Cable
