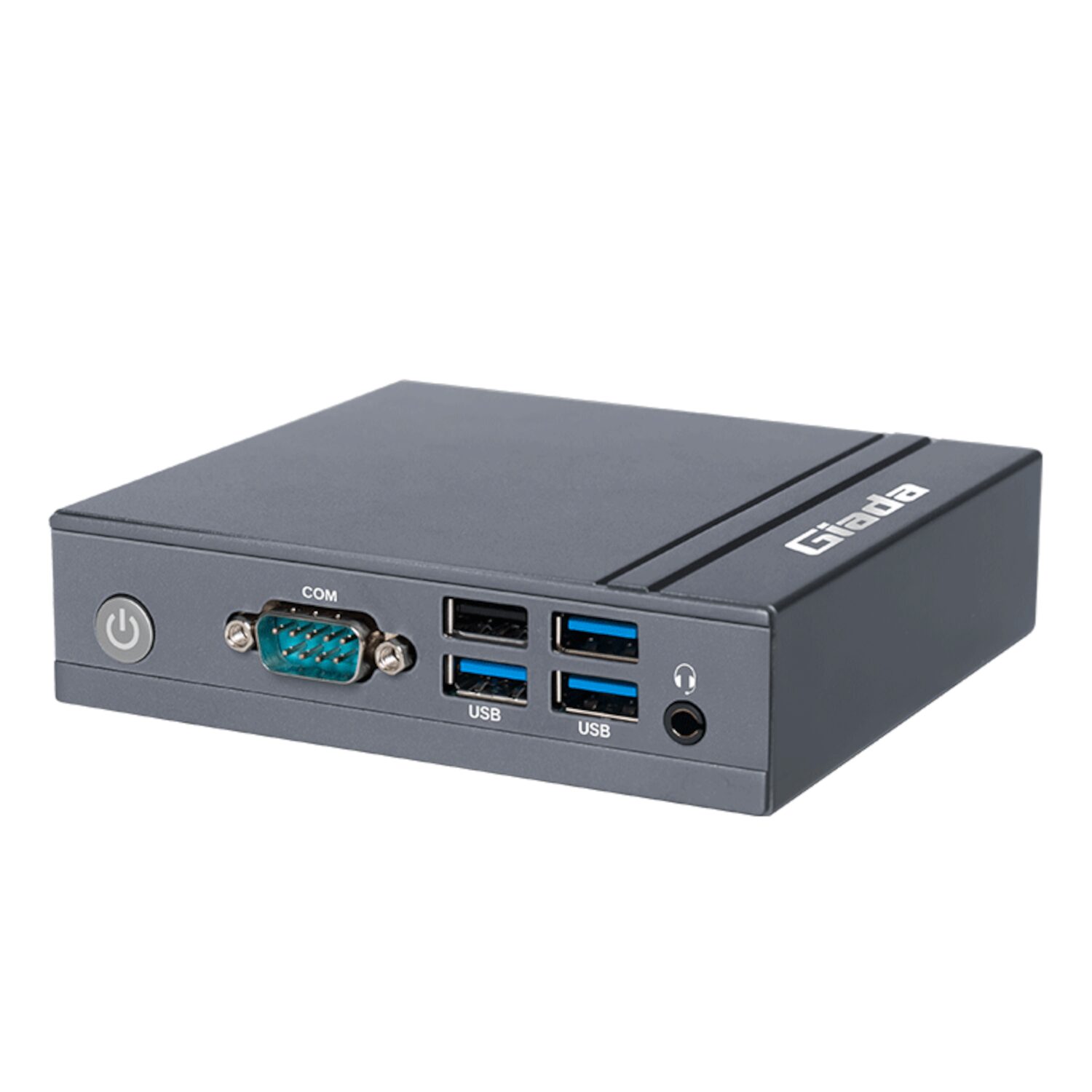

Giada DN24 Raspberry Pi Compact Signage Player - CM4 Lite

Elevate your digital signage deployments with the Giada DN24 Raspberry Pi, a compact and energy-efficient media player tailored for cost-effective signage solutions. Powered by the Raspberry Pi CM4 module, this robust device is engineered for seamless 24/7 operation, making it ideal for retail displays, corporate communications, transportation hubs, and educational environments.

The Giada DN24 Raspberry Pi combines an ultra-slim form factor with a silent, fanless design, delivering high performance without compromising reliability. It supports 4K video output via HDMI and can power an additional Full HD display via GPIO DSI, making it a versatile solution for dual-display signage requirements.

Integrated with Giadas patented JAHC technology, it ensures automatic power-on and scheduling, enhancing system stability in unattended environments. Designed for deployment flexibility, the Giada DN24 Raspberry Pi supports VESA mounting and offers extensive connectivity, including dual USB ports, RJ45 LAN, and expansion options through GPIO, UART, and I2C.

Whether used in smart kiosks or menu boards, this unit empowers businesses to deliver engaging content with minimal maintenance. Built for integration, scalability, and long-term reliability, the Giada DN24 Raspberry Pi is the go-to signage player for solution providers seeking an affordable and high-performing media platform.

FEATURES: Powered by Raspberry Pi CM5 Dual-display support outputs @ 4K via HDMI and Full HD via GPIO DSI, ideal for multi-screen digital signage Ultra-compact, slim, fanless design and silent operation for space-constrained and noise-sensitive environments JAHC hardware watchdog ensures automatic power-on, power failure recovery, and scheduled power management Flexible connectivity options include USB 3.2 Gen 1, USB 2.0, HDMI 2.0a, RJ45 LAN, GPIO, UART, and I2C VESA mount supports integration into kiosks, POS systems, and digital signage enclosures Built for 24/7 operation, industrial-grade reliability for continuous use across high-demand environments Energy-efficient, low-power consumption design tailored for scalable, cost-effective deployments SPECIFICATIONS: Compute Module Compute Module: Raspberry Pi CM4 Lite Frequency: 1.50 GHz Processing units: 4 Cores Cortex-A72 Memory on Module: 2 GB, Onboard LPDDR4-3200 MHz System Storage: 32 GB, Onboard eMMC (Optional: 64 GB) Watchdog Timer: Yes Auto Power On: Yes RTC: Set up independently every day, a week as a cycle Power Requirement: DC-INN, 12 V/2.08 A Dimensions: 11.6 x 10.6 x 3 cm Construction: Metal Operating System: Raspberry Pi OS Operating Temperature: 0C ~45C @0.7m/s Air Flow Humidity: 95% @ 45C (non-condensing) Certifications: CE, FCC Class B, UKCA Network Network Controller: 1 x Pef7071 PHY Ethernet Interface: 1 x RJ45 Wi-Fi/BT: Onboard Wi-Fi/BT module (2.4 GHZ/5 GHz) Mobile Network: NA Display GPU: Video Core VI Graphic Engine: OpenGL ES3.0, Vulkan 1.0 Multi-Media: 4K60 H.265 video decoders 1080p60 H. 264 decoders 1080p30 H.264 video encoders Display Interface: 2 x HDMI2.0 (Max. 3840 x 2160 @60 Hz) I/O interface USB: 3 x USB3.2 Gen 1 x USB2.0 Serial Port: 1 x RS232 Audio: 1 x 2-IN-1 headset (MIC-IN & AUDIO-OUT) Button: 1 x Power on 1 x U-Boot Antenna: 1 x Connector for Wi-FI/BT 1 x Reserved WHAT'S IN THE BOX: Giada DN24 Raspberry Pi Compact Signage Player - CM4 Lite
