VS132 3D Tof People Counting Sensor VS132-868M

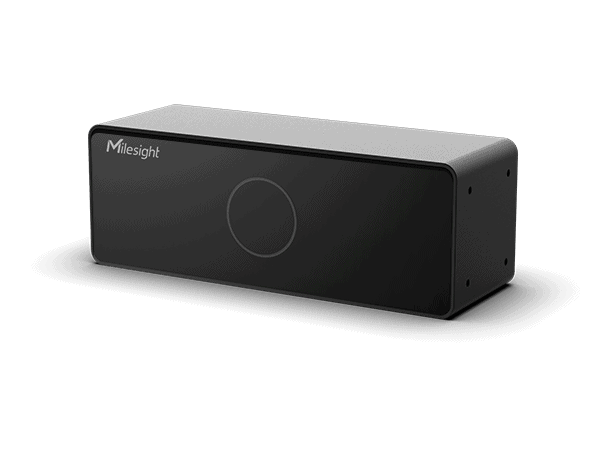

Milesight VS132 3D ToF People Counting Sensor VS132-868M VS132 is a LoRaWAN3D ToF people counting sensor designed to count the number of people entering and exiting. Applied the most advancedTime-of-Flight technology, VS132 only obtains depth maps instead of images to protect privacy and provide a high level of accuracy upto 99.5%.Cooperating with Milesight LoRaWANgateway and the Milesight IoTCloud solution, it allows users to monitor the flow of people andtrigger linkage to control other devices via browser or mobile App remotely.

With easy installation, VS132 has great use in entrances or corridors of retail stores, malls, offices, subways, etc. Features Bi-Directional Counting Equipped with Wi-Fi and Ethernet Port Acquire People Counting Data Technical Specification Wireless Transmission Protocol: LoRaWAN Frequency: CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 Max Tx Power: 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) Sensitivity: -137 dBm @300bps Mode: OTAA/ABP Class C People Counting ToF FoV: 92.5 Horizontal, 67 Vertical Detection Range: 0.5 to 3m Installation Height: 3m Accuracy: Up to 99.5% Local Storage: 1,000,000 data records Advanced Setting: Entrance and exit area customization Interface Wi-Fi: IEEE 802.11 b/g/n, 2.4GHz, only support configuration Ethernet Port:1xRJ45 10/100 Mbps Ethernet Port (PoE PD), provides CGI forintegration Power Input: 2-pin 5.08 mm Terminal Block
