Ewelink Garage Door Opener Lite Version

Features

Description

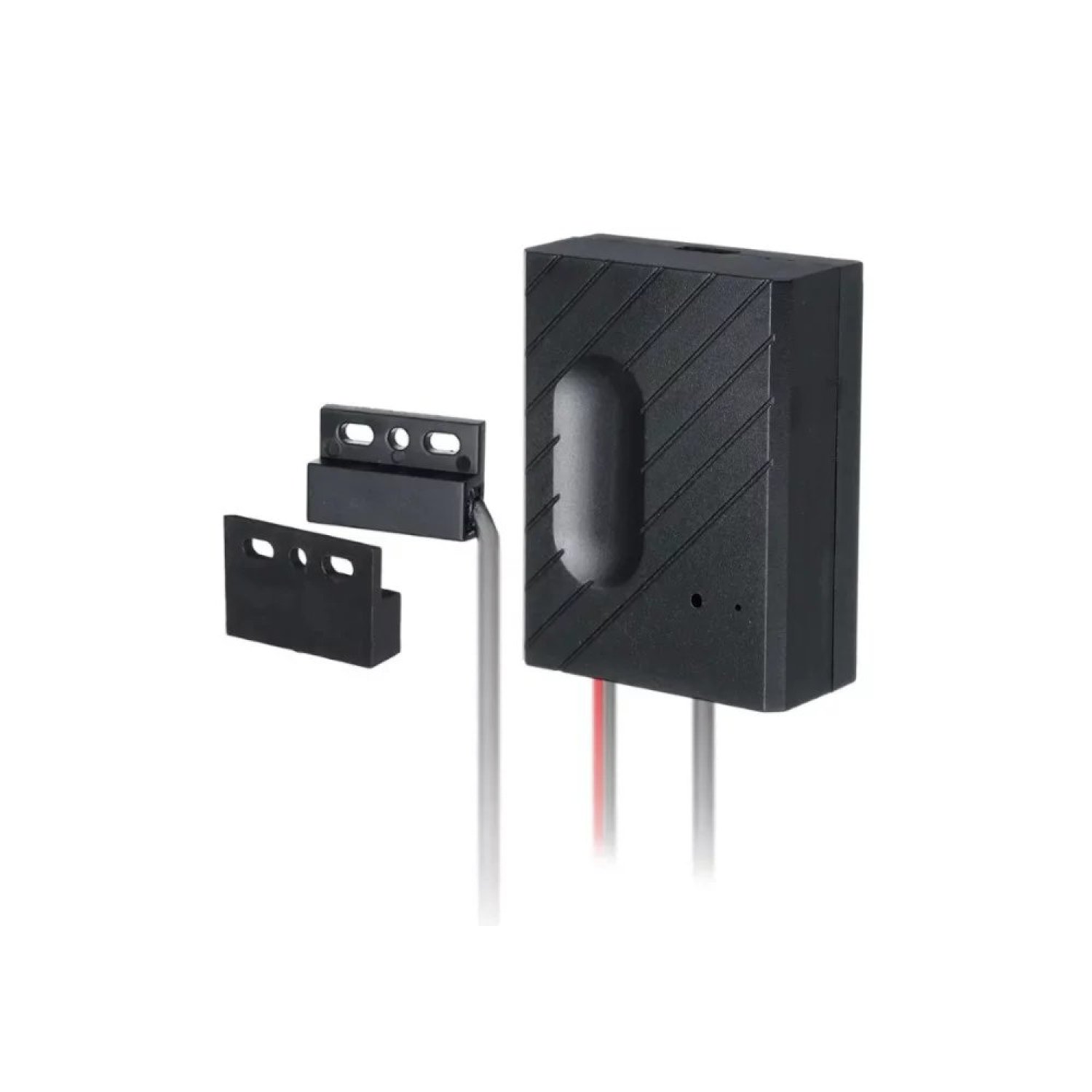

Description Garage Door Opener Lite is a DIY mounting version for those who like to tinker as it does not come with included mounting kit. It also has a shorter cable for the sensor (30cm). **Lite version does not include brackets **Lite version has a shorter sensor cable (30cm) EACHEN GD-DC5-Lite smart garage door system is compatible with most garage doors that have an opener motor.

The installation takes 20 minutes. After that, you can use your smartphone to open and close your garage door from anywhere. This product is a WiFi smart device which controls your garage door opener and allows you to monitor the door status at any time. You can add the device to the Ewelink APP in order to remotely control your garage door, available on both Android and iOS.

Garage Door Opener Lite supported functions include: Remote turn on/off Timing Schedules Device Sharing History Record Compatible with Amazon Echo, Echo Dot, Amazon Tap Works with Google Home, Google Nest Works with IFTTT If your garage door opener is on the compatible list below, you can connect the device to the opener, if not on this list, you can do the following to test if GD-DC5 will work with your garage door opener: Take a wire with both ends stripped or a straightened-out paper clip and put each end to the same terminals as the wall button wires are terminated to.

By doing so, if your door activates, then your garage door opener is compatible with EACHEN GD-DC5 by default. If the door does not activate, then the opener is not compatible by default, then you can try to connect the device to the remote controller or the wall console. Compatibility List Also you can ask Google Home to control the device with the following voice commands.

Try out these phrases ( {deviceName} should be the name of your device): hey, google, turn on {deviceName} OK, google, turn off {deviceName} This product is also compatible with Amazon Alexa. You can ask Alexa to control the device with the following voice commands. Alexa, turn on {deviceName} Alexa, turn off {deviceName} Works with IFTTT: Search Ewelink in the IFTTT APP.

You can create applets such as: If my location is 200 meters away form home, Then turn off the garage door. If the device is turned on/off, then send me a email. Sharing the device to other users: You can share it to your family and friends or visitors, OF COURSE, you can take back the permissions at any time.

Installation Power up the device with DC 5V adapter and micro USB cable. Connect the Red & Black wires to your garage door opener: Put each end to the same terminals as the wall button wires are terminated to. Connect the sensor and install steadily on the garage door with screws/3M gums/braket and so on.

Control the device on your smart phone. Specifications Accessories: 2pin wire*2/Door sensor *30cm/USB Cable Working with: Amazon Alexa, Google assistant,IFTTT Input: DC 5V/1000mA Gross Weight: 100g Output: 0V Wireless standard: IEEE802.11b/g/n Wireless Type: Only 2.4GHz, does not support 5G Mobile Phone: EweLink For android & IOS In the box WiFi Smart Switch Garage Door Opener x1 Set of Mounting Accessories x1 Connection Cable x1 USB cable x1 User Manual x1 Please EMAIL for stock availability (E&OE)
