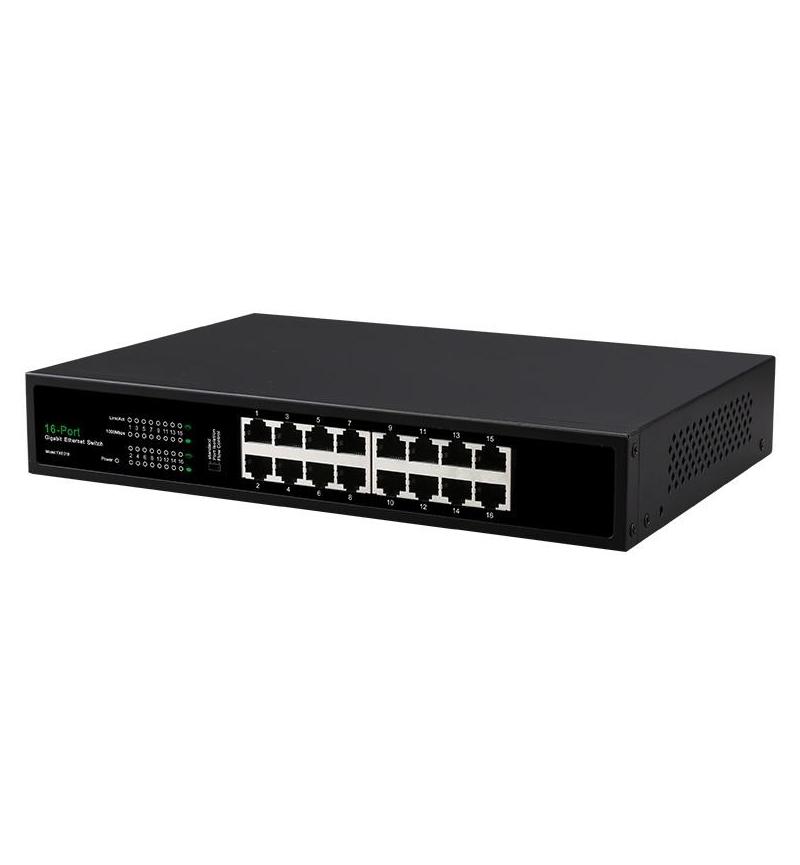

MicroWorld 16 Port Gigabit Switch

16 PORT GIGABIT SWITCH -TXE018Standards and Protocols: IEEE 802i, IEEE 802.3u, IEEE 802.3abInterface: 16 10/100/1000Mbps RJ45 Ports, Auto Negotiation/Auto MDI/MDIXForwarding Mode: Store-and-ForwardNetwork Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000BASE-T:UTP category 5, 5e or above cable (maximum 100m)Hardware FeaturesPower Supply: AC Power: 100-240VAC, 50/60HzFeatures: Port lsolation / Flow ControlLED: Power, 1000Mbps, Link/ActFanless Size: YesSize: 270 x 181 x 44MMShell Material: Iron ShellSwitching Capacity: 32GbpsPacket Forwarding Rate: 23.8MppsPerformanceMAC Address Table: 8KJumbo Frame:10KBMaximum Power Consumption: (220V/50Hz) 9.26WCertifications:CE, FCC, RoHSOperating Temperature: 0C- 40C(32F-104F)Storage Temperature: -40C-70C(-40F-158F)EnvironmentOperating Humidity: 10%-90%RH non- condensingStorage Humidity: 5%-90%RH non- condensingOrdering Information:16-Port Gigabit switchOverviewThe TXE018/TXE168 Gigabit Ethernet Switch represents a high-performance, low-cost, simple, seamlessAnd standardized upgrade that allows you to transform your existing network and achieve 1000Mbps speedsAll 16/24 ports support auto MDI/MDIX, so there is no need to worry about cable typesSimply plug and playWith the innovative energy-efficient technologyTheTXE018/TXE168canreducepower consumption and the vast majority of its packaging material can be recycledMaking it an eco-friendly solution for your business networkEnhanced PerformanceAll 16/24Ports are Gigabit RJ-45 Ports,allowing them to support large file transfers and makes them compatible with 10Mbps and 100Mbps Ethernet devicesSince both switches feature a non-blocking switching architecture, the TXE018 and TXE168 forward and filter packets at full wire-speed, achieving maximum throughput10KBJumboframe significantly improves performance during large file transfers IEEE802.3 x flow control supportsFull Duplex mode and back pressure for Half Duplex mode alleviates traffic congestion to make the TXE018/TXE168 more reliableThis makes the TXE018/TXE168 a perfect choice for upgrading your network to Gigabit speed while protecting your previous investmentEasy of UseThe automated features of this Gigabit switch make installation hassle-freeNo configuration is required.

Auto MDI/MDIX eliminates the need for crossover cablesAuto -negotiation on each port senses the link speed of network devices (10,100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance
