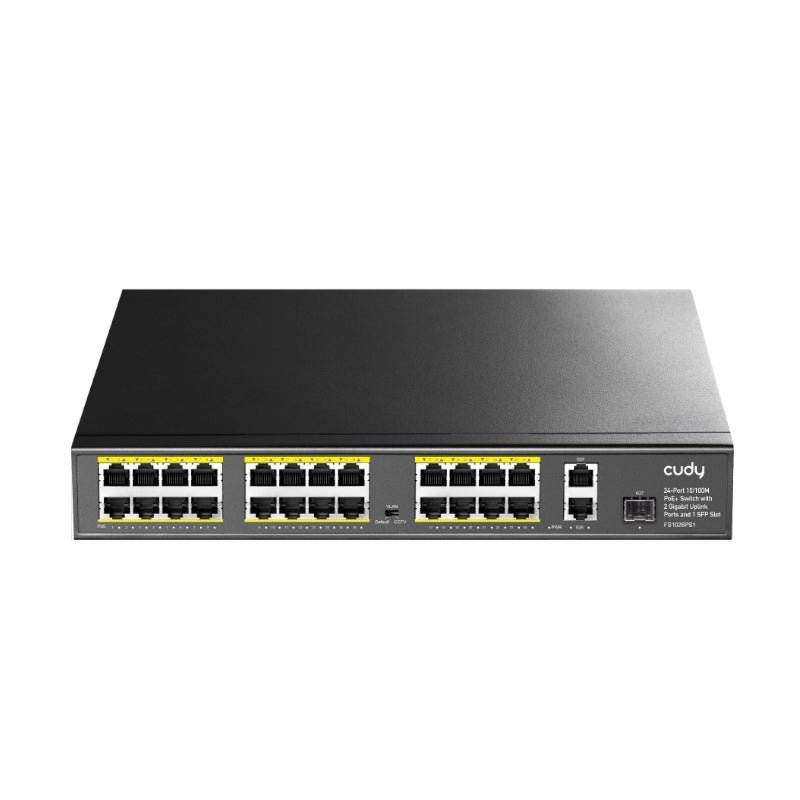

Cudy FS1026PS1 26-PORT Poe+ Switch 300W

The Cudy FS1026PS1 26-Port 10/100M PoE+ Switch with 1 FSP Slot allows you to manage your home or office network with ease. It features 24 Ethernet PoE ports with 2 uplink ports and 1 SFP slot. it's PoE RJ-45 connectors support any 10/100Mbps Ethernet devices, while the 2 non-PoE uplink ports support 10/100/1000Mbps Ethernet devices and it's compliant with IEEE 802.3af/802.3at network standards.

Used for many applications the Cudy FS1026PS1 works with IP Cameras for home, office or small businesses. It also works well with PCs, printers and access points in your home or office, making it ideal for small businesses. It even features a VLAN mode for additional security, this allows the ports to be isolated from one another. it's simple plug and play interface makes it incredibly easy to use. it's sturdy design is made from high-quality metal.

This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a fanless design with venting holes to help dissipate heat with silent operation. Watchdog guarantees the uninterrupted operation of your PoE devices. The PoE watchdog continuously monitors the connection status of remote hosts.

If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation. FEATURES: 24 x 10/100M PoE+ ports 2 x Gigabit Uplink port 1 x 1.25Gbps SFP slot 300 Watts PoE power budget IEEE 802.3at / IEEE 802.3af standard compliant Plug&play, simple setup with no configuration needed SPECIFICATIONS: Connector Type 24-Port 10/100M PoE+ Switch with 2 Gigabit Uplink Ports and 1 SFP Slot Network Protocols IEEE802.3IEEE802.3uIEEE802.3abIEEE802.3xIEEE802.3z IEEE802.3 IEEE802.3u IEEE802.3ab IEEE802.3x IEEE802.3z PoE Parameters PoE Standard: IEEE802.3af /IEEE802.3atMax each port: 15.4W ( IEEE 802.3af )Max each port"30W ( IEEE 802.3at )PoE compatibility: IEEE 802.3af/at adaptivePoE port output: DC48-55VPower Pin : Power over spare pairs 1/2(+) , 3/6 (-) PoE Standard IEEE802.3af /IEEE802.3at Max each port 15.4W ( IEEE 802.3af ) Max each port"30W ( IEEE 802.3at ) PoE compatibility IEEE 802.3af/at adaptive PoE port output DC48-55V Power Pin Power over spare pairs 1/2(+) , 3/6 (-) Network Media 10BASE-T: Cat 6 UTP("250 meters)100BASE-TX: Cat5 or more UTP ("100 meters)1000BASE-TX: Cat5 or more UTP ("100 meters) 10BASE-T Cat 6 UTP("250 meters) 100BASE-TX Cat5 or more UTP ("100 meters) 1000BASE-TX Cat5 or more UTP ("100 meters) Optical Multi-Mode Fiber: 850nm, 1310nmTransmission Distance: 550m/2KmSingle-Mode Fiber: 1310nm, 1550nmTransmission Distance: 20/40/60/80/100/120km Multi-Mode Fiber 850nm, 1310nm Transmission Distance 550m/2Km Single-Mode Fiber 1310nm, 1550nm Transmission Distance 20/40/60/80/100/120km Performance SpecificationBandwidth 10.8GbpsMAC Address: 2KPacket Neck Scarfer Memory: 1MPacket Forwarding Rate: 8MppsForwarding Mode: Store-And-Forward Bandwidth 10.8Gbps MAC Address 2K Packet Neck Scarfer Memory 1M Packet Forwarding Rate 8Mpps Forwarding Mode Store-And-Forward Power SupplyProduct Input Voltage AC100-240V 50/60HzOutput: 52V5.76A, Power Budget: 300W Product Input Voltage AC100-240V 50/60Hz Output 52V5.76A, Power Budget: 300W Led indicator PWR - Power supply indicator(Red):Lighting: PoweredUn-Light: No PowerSW - DIP indicator(Green):OFF: NormalVlan: LightingExtend: Slow flash1-27 - RJ-45 ACT indicator(Green):Lighting: ConnectingFlashing: Data TransmitUn-Light: Disconnect PWR - Power supply indicator(Red) Lighting: PoweredUn-Light: No Power Lighting Powered Un-Light No Power SW - DIP indicator(Green) OFF: NormalVlan: LightingExtend: Slow flash OFF Normal Vlan Lighting Extend Slow flash 1-27 - RJ-45 ACT indicator(Green) Lighting: ConnectingFlashing: Data TransmitUn-Light: Disconnect Lighting Connecting Flashing Data Transmit Un-Light Disconnect MTBF 100,000 hours Product Dimensions 32 x 21 x 4.6 cm Product Weight 1900g WHAT'S IN THE BOX: Cudy FS1026PS1 26-Port 10/100M PoE+ Switch with 1 FSP Slot - Grey x1 Power Adapter x1
