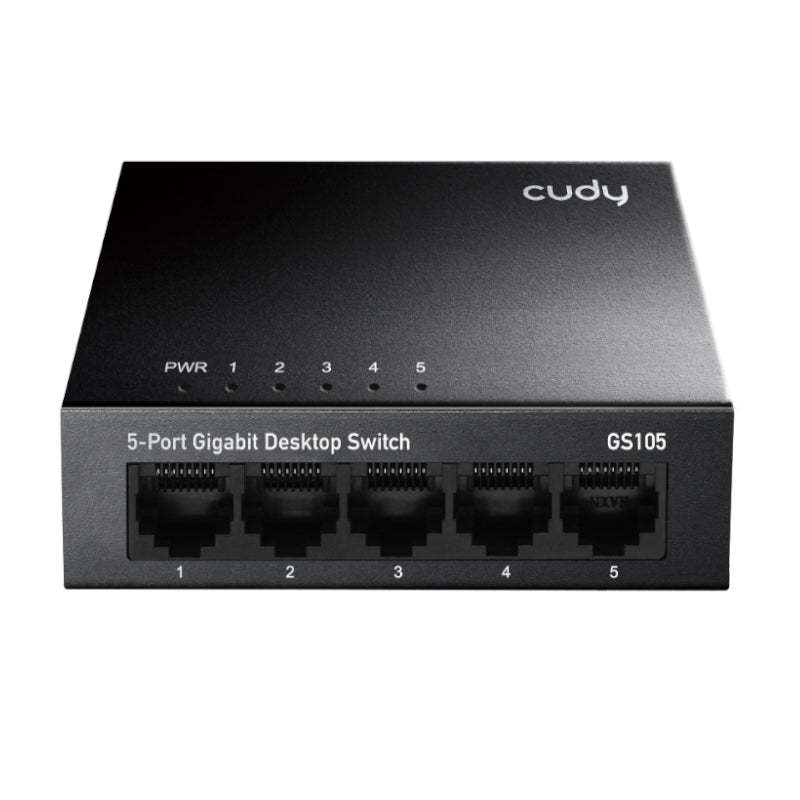

Cudy GS105 5-PORT Gigabit Ethernet Unmanaged Switch

The Cudy GS105 5-Port Gigabit Desktop Switch allows you to manage your home network with ease. It supports bandwidth speeds of up to 10Gbps and features 5 Ethernet ports. it's high-speed RJ-45 connectors support any 10/100/1000Mbps Ethernet devices. Used for many applications the Cudy GS105 works with IP Cameras for home, office or small businesses.

It also works well with PCs, printers and access points in your home or office, making it ideal for small businesses. For additional protection, it features a VLAN mode which helps isolate the ports from each other. The IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer increased bandwidth to alleviate network congestion, making the switch work reliably. it's simple plug and play interface makes it incredibly easy to use. it's sturdy design is made from high-quality metal.

This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a fanless design for silent operation. FEATURES: Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards 5 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware Non-blocking switching architecture enables full wire-speed packets forwarding and filtering Store-and-Forward switching method Supports 16K MAC address auto-learning and auto-ageing SPECIFICATIONS: Standard configuration 5 10/100/1000M RJ-45 adaptive ports Switching Capacity 10Gbps Throughput 7.44Mpps Packet Neck Scarfer 1M MAC Address 1K Jumbo Frame 2K Transfer Mode Store and forward MTBF 100000 hour Network protocol IEEE802.3 (10Base-T)IEEE802.3u (100Base-TX)IEEE802.3ab (1000Base-TX)IEEE802.3x (Flow control) IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) Industry StandardEMI FCC Part 15 CISPR (EN55032) class AEMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT)Shock: IEC 60068-2-27Free Fall: IEC 60068-2-32Vibration: IEC 60068-2-6 EMI FCC Part 15 CISPR (EN55032) class A EMS EN61000-4-2 (ESD), EN61000-4-4 (EFT) Shock IEC 60068-2-27 Free Fall IEC 60068-2-32 Vibration IEC 60068-2-6 Network Medium10Base-T Cat3, 4, 5 or above UTP("100m)100Base-TX: Cat5 or above UTP("100m)1000Base-TX: Cat5 or above UTP("100m) 10Base-T Cat3, 4, 5 or above UTP("100m) 100Base-TX Cat5 or above UTP("100m) 1000Base-TX Cat5 or above UTP("100m) LED Indicators PWR (Power indicator)Link (Network Link)LOOP (Loop alarm) PWR (Power indicator) Link (Network Link) LOOP (Loop alarm) VLAN Port Isolation, 1-4 ports are isolated each other, all communicate with uplink port 5 Default Default mode, Support loop alarm Extend Monitor Mode, 1-4 ports support 100M speed reduction negotiation, support 250 meters in 10Mbps/s mode, port 5 as an uplink port Power Voltage Power Input Voltage: AC 100-240 VSwitch Input Voltage: DC 5V Power Input Voltage AC 100-240 V Switch Input Voltage DC 5V Product Dimensions 8.7 x 5.4 x 2.3 cm Product Weight 200g WHAT'S IN THE BOX: Cudy GS105 5-Port Gigabit Desktop Switch - Black x1 Power Adapter x1 Quick Install Guide x1
