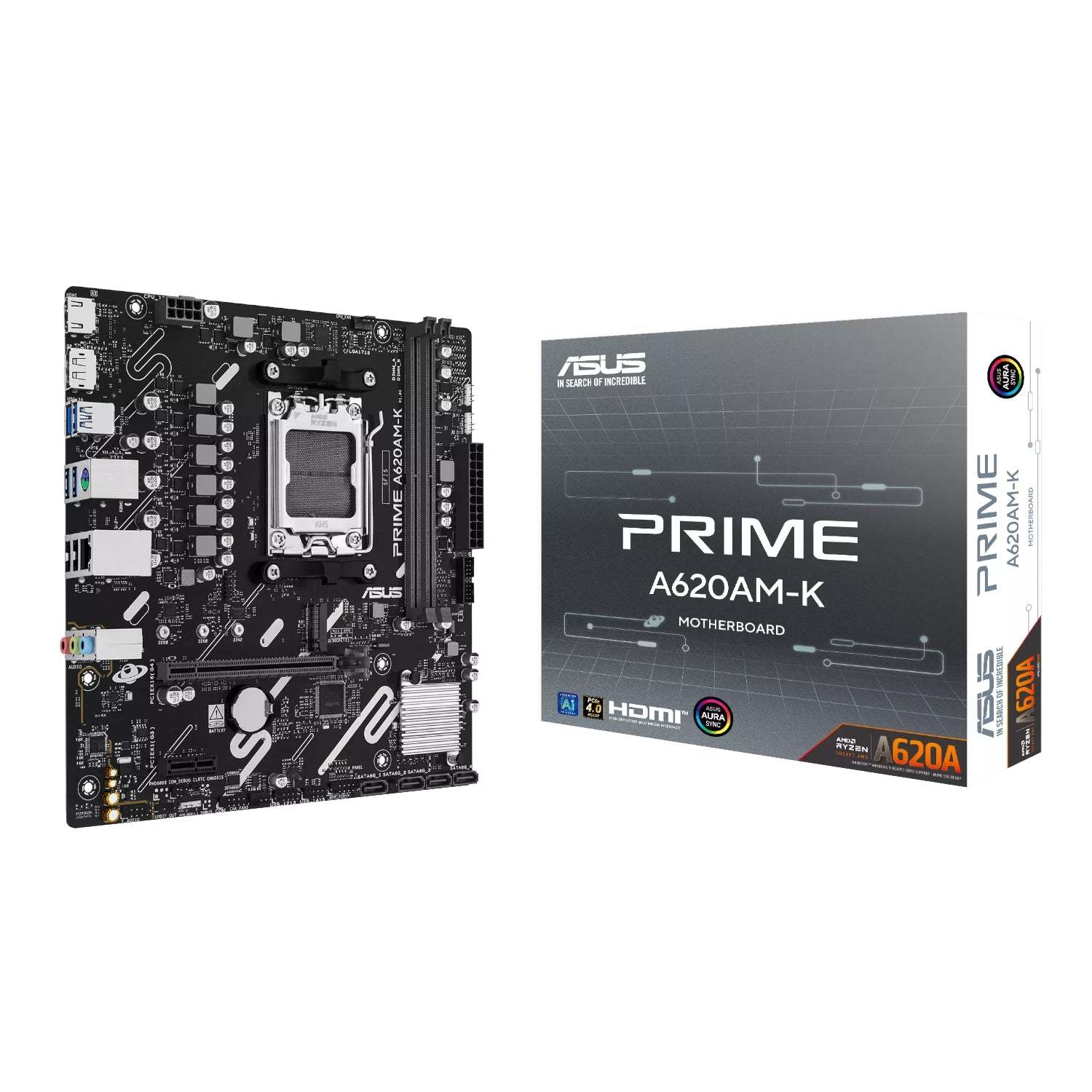

Asus Prime A620M-K AM5 M-atx Motherboard

Unlock Next-Gen Performance with the ASUS PRIME A620M-K Expertly engineered to unleash the full potential of AMD Ryzen 7000, 8000, and 9000 series processors, the ASUS PRIME A620M-K is the solid foundation your next PC build deserves. This micro-ATX motherboard combines a robust power design, comprehensive cooling solutions, and intelligent tuning options to deliver exceptional performance and stability.

Whether you're a first-time builder or a seasoned enthusiast, the PRIME A620M-K provides a range of performance optimizations via intuitive software and firmware features. Ultrafast Connectivity and Speed Experience blazing-fast data speeds and reduced load times. The PRIME A620M-K is equipped with a PCIe 4.0 x16 slot for the latest graphics cards and an M.2 slot that also supports PCIe 4.0, delivering data-transfer speeds of up to 64 Gbps.

This enables quicker boot-up and application loading, getting you into the action faster. It also features DDR5 memory support, pushing beyond the limits of previous generations for higher frequencies and better performance. Comprehensive and Intelligent Cooling Stability under pressure is paramount.

This motherboard features a PCH heatsink and is configurable with Fan Xpert software, giving you complete control over your system's cooling. Each fan header can dynamically reference multiple thermal sensors, allowing you to map temperatures of supported ASUS graphics cards to optimize cooling for both CPU and GPU-intensive tasks.

A dedicated integrated circuit also protects each fan header from overheating and overcurrent. Customize Your Build with Aura Sync Make your build truly your own. The PRIME A620M-K includes onboard Addressable Gen 2 headers and an Aura RGB header, allowing you to connect and sync a wide array of RGB LED strips and other Aura Sync-capable hardware.

Create stunning, synchronized lighting effects that reflect your personal style. Built to Last ASUS 5X PROTECTION III ensures long-term durability with multiple hardware safeguards. This includes SafeSlot Core, a fortified PCIe slot anchored to the motherboard that provides stronger retention and greater shearing resistance for heavy graphics cards.

Additionally, features like Two-Way AI Noise Cancelation reduce background noise for crystal-clear communication in games and meetings. Detailed Specifications CPU AMD Socket AM5 for AMD Ryzen 9000, 8000 & 7000 Series Desktop Processors Chipset AMD A620 Memory 2 x DIMM, Max. 96GB, DDR5, Non-ECC, Un-buffered Memory with On-Die ECC function Graphics 1 x VGA port, 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) Expansion Slots 1 x PCIe 4.0 x16 slot (SafeSlot Core), 1 x PCIe 3.0 x1 slot Storage 1 x M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports Ethernet 1 x Realtek 1Gb Ethernet Audio Realtek 7.1 Surround Sound High Definition Audio CODEC Back Panel I/O Ports 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x VGA port1 x HDMI port1 x Realtek 1Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors 1 x CPU Fan header1 x Chassis Fan header1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x M.2 slot (Key M)4 x SATA 6Gb/s ports1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports)2 x USB 2.0 headers (support 4 additional USB 2.0 ports)2 x Addressable Gen 2 headers1 x Aura RGB header1 x S/PDIF Out header1 x Speaker header1 x COM port header1 x Front Panel Audio header (AAFP)1 x Chassis Intrude header1 x SPI TPM header (14-1pin) Form Factor m-ATX Form Factor (22.6 cm x 22.1 cm)
