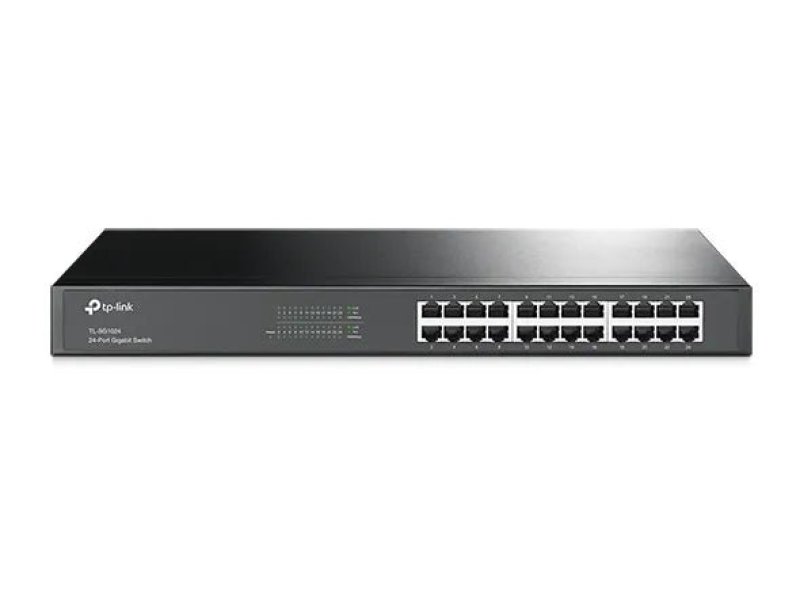

TP-link TL-SG1024 24-PORT Gigabit Ethernet Unmanaged Rackmount Switch

Features

Description

Upgrade Your Network with High-Speed Gigabit Performance Experience a seamless and powerful network upgrade with the TP-Link 24-Port Gigabit Switch, the TL-SG1024. This high-performance, easy-to-use switch is designed to boost your network to 1000Mbps, providing a standard, low-cost solution for your home or office.

With 24 gigabit ports, it dramatically expands your network's capacity, enabling instant transfers of large, bandwidth-intensive files. Whether you're in a creative production environment, a busy office, or a workgroup, you can move graphics, CGI, CAD, or multimedia files across the network almost instantly.

Effortless Plug-and-Play Installation The auto features of this gigabit switch make installation hassle-free and require no configuration. All 24 ports support Auto-MDI/MDIX, which cleverly eliminates the need for crossover cables. Additionally, auto-negotiation on each port intelligently senses the link speed of a network device (10, 100, or 1000 Mbps) and adjusts for optimal performance and compatibility.

Eco-Friendly and Energy Efficient The TL-SG1024 features the latest in innovative, energy-efficient technology that significantly expands your network capacity with much less power. It automatically adjusts power consumption based on the link status, helping to limit your network's carbon footprint.

This switch is also compliant with the EU's RoHS, which prohibits the use of certain hazardous materials. Robust Performance and Reliability Housed in a standard 19-inch rack-mountable steel case, this switch is built for durability. It features a non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput.

With a 10KB Jumbo frame, the performance of large file transfers is significantly improved. IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate traffic congestion, ensuring the TL-SG1024 works reliably. Comprehensive Specifications Hardware Features Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x Interface 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m) Fan Quantity Fanless Power Supply 100-240VAC, 50/60Hz Max Power Consumption 13.62W Max Heat Dissipation 46.44 BTU/h Dimensions (W x D x H) 17.3 x 7.1 x 1.7 in. (440 x 180 x 44 mm) Mounting Rack Mountable Performance Switching Capacity 48Gbps Packet Forwarding Rate 35.7Mpps MAC Address Table 8K Jumbo Frame 10KB Green Technology Yes Transfer Method Store-and-Forward Others Certification FCC, CE, RoHS Package Contents 24-Port Gigabit Rackmount Switch, Power Cord, Installation Guide, Rackmount Kits, Rubber Feet Environment Operating Temperature: 0~40 (32~104)Storage Temperature: -40~70 (-40~158)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
