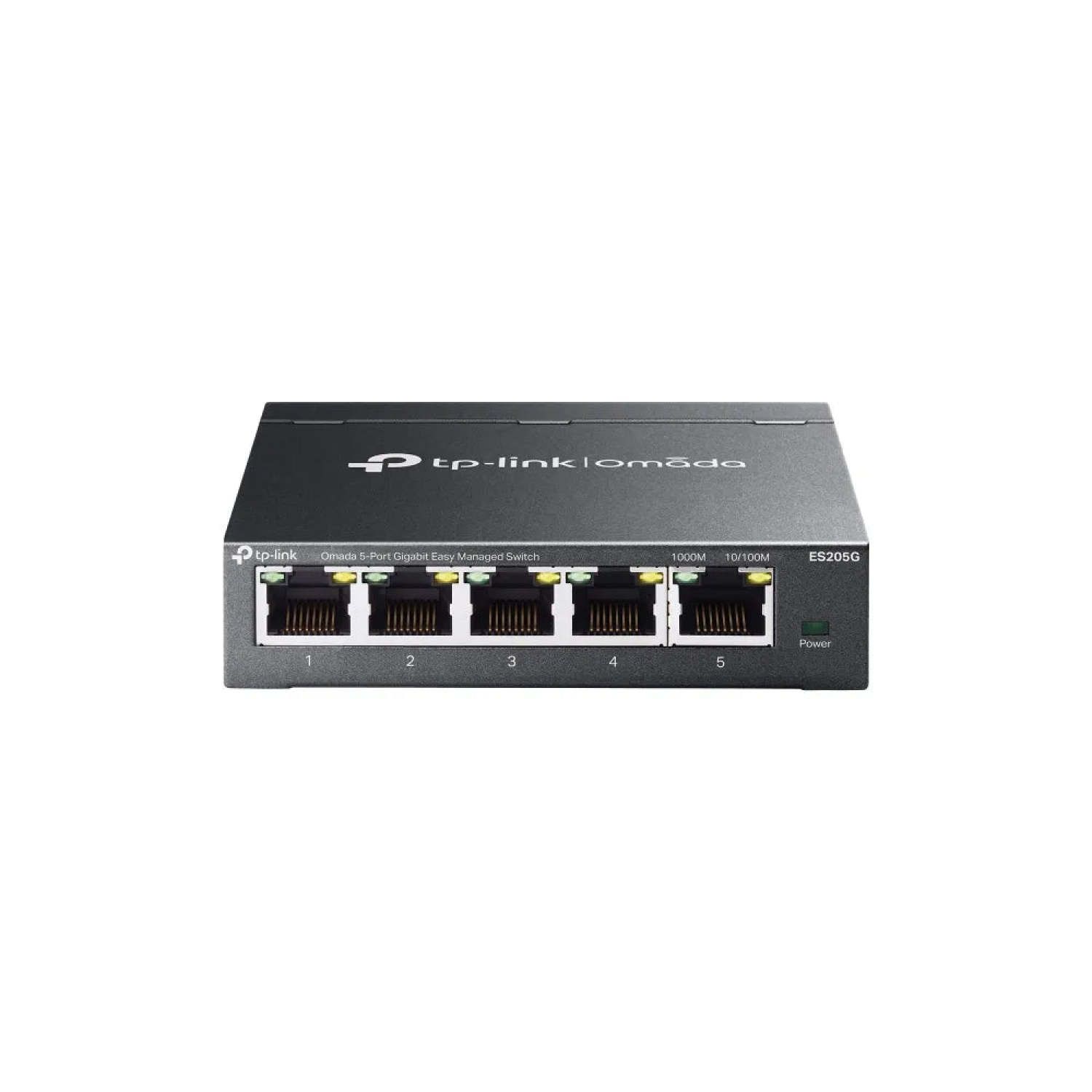

TP-link Omada Sdn 5-PORT Gigabit Smart Managed Switch

Features

Description

Centralize Your Network with Full Gigabit Speeds & Cloud Management Upgrade your network infrastructure with the TP-Link Omada 5-Port Gigabit Smart Managed Switch. This high-performance switch is engineered for efficiency, security, and centralized management, making it the perfect solution for business and advanced home networks.

As part of the Omada Software Defined Networking (SDN) platform, it offers 100% centralized cloud management for ultimate control and scalability. Manage your entire network from a single interface, anytime, anywhere. Robust Security and Advanced L2+ Features This switch is packed with a comprehensive suite of L2 and L2+ features.

Implement robust security strategies with features like IP-MAC-Port Binding, Access Control List (ACL), Port Security, and Storm Control to defend against a variety of network threats. Enhance network performance and organization by utilizing 802.1Q VLAN, Quality of Service (QoS) for traffic prioritization, and IGMP Snooping to optimize multicast traffic.

Static Routing allows for internal traffic routing, ensuring more efficient use of network resources. Flexible Deployment and Power over Ethernet (PoE) Passthrough Designed for versatile deployment, this model features innovative PoE Passthrough technology. It can be powered by a PoE source (802.3af/at/bt) and simultaneously power other PoE devices.

It includes one Gigabit PoE++ input port and four Gigabit PoE+ output ports, capable of delivering up to a 64W total power budget. This unique capability simplifies installations in locations without direct access to power outlets and can even extend the standard 100-meter PoE distance up to 200 meters, ideal for deploying long-range IP cameras and access points.

Built for Demanding Environments Engineered for reliability, the switch is housed in a durable, IP55-rated weatherproof enclosure that protects it from dust and water ingress. It is also UV-resistant and features 4KV lightning protection, ensuring stable operation in harsh outdoor conditions with a wide operating temperature range of -40 to 60 C.

Hardware Features Interface 5 x 10/100/1000Mbps RJ45 Ports (Port 5 supports PoE++ In, Ports 1-4 support PoE+ Out) Standards and Protocols IEEE 802.3i, 802.3u, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3bt, 802.3x, 802.1d, 802.1s, 802.1w, 802.1q, 802.1p, 802.1x PoE Ports Port 5 (PoE In): 802.3af/at/btPorts 1-4 (PoE Out): 802.3af/at, Passthrough PoE Power Budget Up to 64W (when powered by 802.3bt Type 4) Dimensions (W x D x H) 8.37 x 8.25 x 2.81 inches Mounting Wall/Pole Mountable Performance Switching Capacity 10 Gbps Packet Forwarding Rate 7.44 Mpps MAC Address Table 8K Jumbo Frame 9 KB Software Features Quality of Service (QoS) 802.1p CoS/DSCP priority, 8 priority queues, Priority Schedule Mode (SP, WRR, SP+WRR), Port/Flow-based Rate Limiting, Voice VLAN L2 and L2+ Features Static Routing, DHCP Relay, IGMP Snooping, L2/L3/L4 QoS, ACL, Link Aggregation (LACP), STP/RSTP/MSTP, Loopback Detection VLAN Supports up to 4K VLANs simultaneously, Port/MAC/Protocol-based VLAN, Voice VLAN Security IP-MAC-Port Binding, AAA, Port Security, Storm Control, DHCP Snooping, IP Source Guard, SSL, SSH, DoS Defend Management Omada App, Centralized Management (Omada Hardware/Software Controller, Cloud-Based Controller), Web GUI, CLI, SNMP, RMON Others Certifications CE, FCC, RoHS Package Contents TP-Link Omada 5-Port Gigabit Switch, Mounting Kits, Installation Guide Environment Operating Temperature: -40C to 60C (-40F to 140F)Storage Temperature: -40C to 70C (-40F to 158F)
