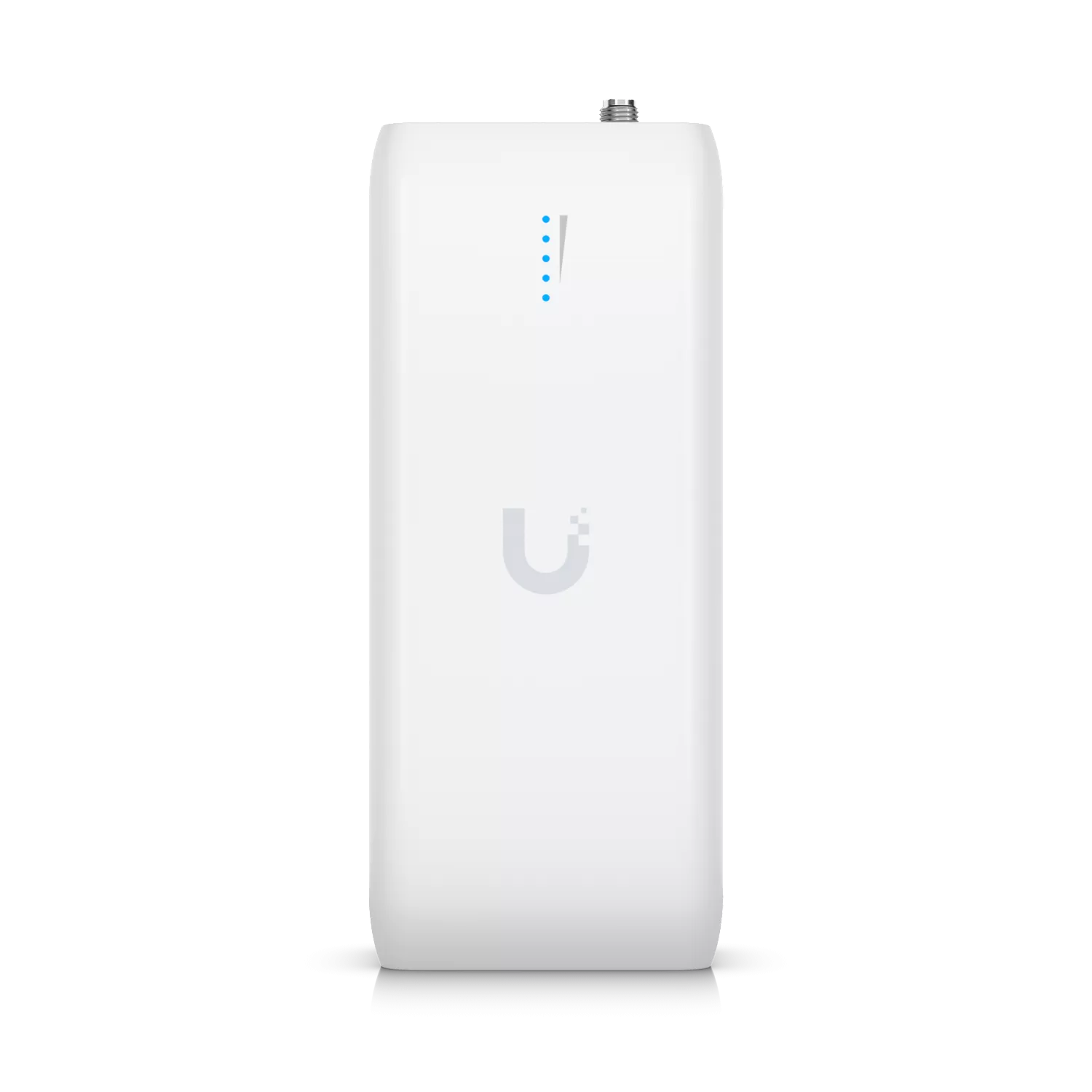

Ubiquiti Unifi Device Bridge Udb Wireless Poe Adapter

Features

Description

Seamlessly Connect and Power Your Ethernet Devices Eliminate the need for complex wiring with the Ubiquiti UniFi Device Bridge (UDB), a plug-and-play, wireless bridging PoE adapter designed to effortlessly connect your Ethernet devices to an existing UniFi network. This compact and versatile device is the perfect solution for deploying devices like UniFi Protect PoE cameras, VoIP phones, and other IoT hardware in locations where running a direct Ethernet cable is impractical or impossible.

With its integrated UniFi WiFi Auto-Link technology, the UDB ensures a simple, intuitive, and reliable wireless connection, streamlining your network expansion. High-Performance Connectivity and Power Delivery The UniFi Device Bridge operates on the 5 GHz WiFi 5 (802.11ac) band, delivering high-speed data transfer rates of up to 866.7 Mbps to handle bandwidth-intensive applications with ease.

It features a Gigabit Ethernet LAN port that not only provides a wired connection to your device but also delivers up to 15W of passive PoE, allowing you to power compatible devices directly from the bridge. This dual functionality simplifies your installation, reducing cable clutter and the need for separate power adapters.

For optimal signal reception, the UDB is equipped with both a 5 dBi internal antenna and an RP-SMA connector for an included 4 dBi external omni-antenna, ensuring a strong and stable link to your UniFi network. Key Features: Effortless Wireless Bridging: Integrated UniFi WiFi Auto-Link for simple, plug-and-play setup.

Power Over Ethernet Output: (1) Gigabit Ethernet port with up to 15W of passive PoE output to power connected devices. High-Speed WiFi 5: Operates on the 5 GHz band with 2x2 MIMO for data rates up to 867 Mbps. Flexible Antenna Options: Includes both an internal antenna and an external omni-antenna to ensure reliable connectivity.

Compact & Versatile Design: Wall-mountable, compact form factor for discreet and flexible deployment. Technical Specifications Mechanical Dimensions 130 x 55 x 34 mm (5.1 x 2.2 x 1.3") Weight 200 g (7.1 oz) Enclosure Material Polycarbonate Mounting Wall mount (Included) Hardware Networking Interface (1) GbE RJ45 Port Management Interface WiFi Power Method 100-240V AC, 0.45A Max, 50/60 Hz Max.

Power Consumption 10W (Excluding PoE Output) PoE Interface (1) Passive PoE Output Max. PoE Wattage per Port 15W Button Factory Reset LEDs White/Blue Indicator, (4) Blue Signal Wireless Specifications WiFi Standard WiFi 5 (802.11a/n/ac) Operating Frequency 5 GHz MIMO 2 x 2 Max. Data Rate 866.7 Mbps Max.

TX Power 21 dBm Antennas (1) Internal Antenna(1) RP-SMA connector for external omni-antenna Antenna Gain Internal: 5 dBiExternal Omni: 4 dBi Environmental Operating Temperature -10 to 40 C (14 to 104 F) Operating Humidity 5 to 95% Noncondensing Certifications CE, FCC, IC
