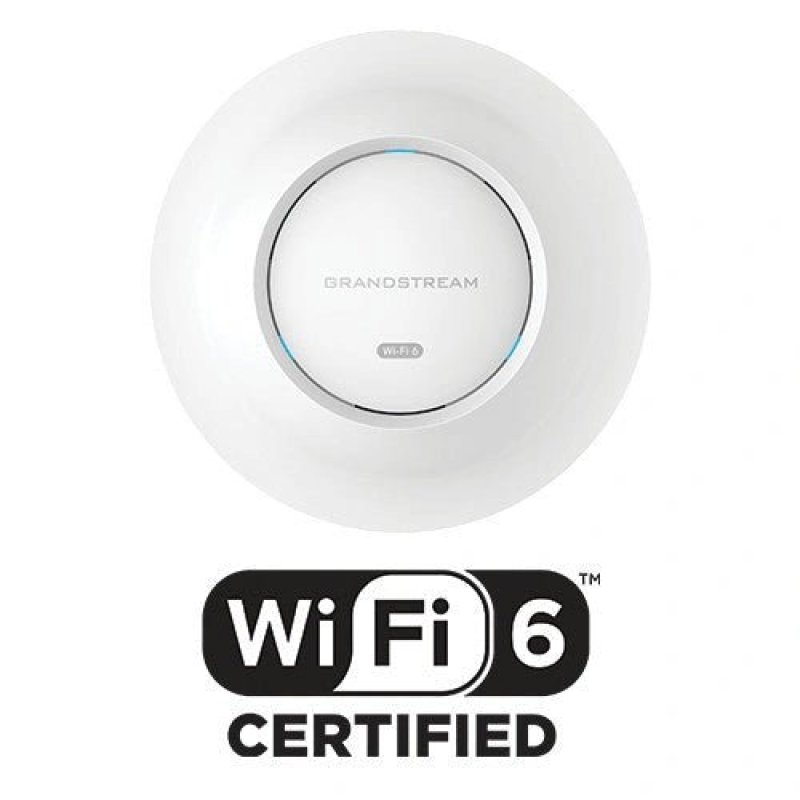

Grandstream GWN7664E Wi-fi 6 AX6000 Indoor Access Point

Features

Description

High-Performance Wi-Fi 6 for Demanding Environments The Grandstream GWN7664E is a powerful, enterprise-grade 802.11ax Wi-Fi 6 access point designed for medium-to-large sized businesses, multi-floor buildings, and commercial locations. It delivers a superior wireless experience with an aggregate throughput of up to 6Gbps and support for up to 512 concurrent Wi-Fi client devices.

This makes it the ideal solution for high-density environments requiring reliable, low-latency connectivity for real-time applications. Advanced Technology for Maximum Throughput Featuring dual-band 4x4:4 MU-MIMO and both downlink/uplink OFDMA technology, the GWN7664E ensures maximum network efficiency and performance.

A sophisticated internal antenna design provides a strong, stable connection with a coverage range of up to 175 meters (574 feet). The access point is equipped with two 2.5G network ports with PoE/PoE+ support, allowing for flexible and high-speed wired connectivity. Robust Security and Simplified Management Security is paramount, and the GWN7664E delivers with anti-hacking secure boot, critical data/control lockdown via digital signatures, and a unique security certificate with a random default password for each device.

Management is made easy with an embedded controller that can manage up to 50 local GWN series access points. For larger deployments, GWN.Cloud offers unlimited AP management, and GWN Manager provides a premise-based software controller. Key Features at a Glance: 6Gbps aggregate wireless throughput and 5Gbps aggregate wired throughput.

Wi-Fi 6 (802.11ax) technology for peak performance. Dual-band 4x4:4 MU-MIMO with DL/UL OFDMA. Supports 512 concurrent Wi-Fi clients. Up to 175-meter coverage range. Dual 2.5 Gigabit ports with PoE/PoE+ support. Advanced QoS for low-latency application performance. Flexible management via embedded controller, GWN.Cloud, or GWN Manager.

Technical Specifications Wi-Fi Standards Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax Antennas 8 individual internal antennas, 4 per band (2.4GHz gain 3.5dBi, 5GHz gain 4.5dBi) Wi-Fi Data Rates 5G: IEEE 802.11ax: 7.3 Mbps to 4804 Mbps; 2.4G: IEEE 802.11ax: 7.3 Mbps to 1147 Mbps Frequency Bands 2.4GHz radio: 2400 2483.5 MHz; 5GHz radio: 5150 5895 MHz Channel Bandwidth 2.4G: 20 and 40 MHz; 5G: 20, 40, 80 and 160 MHz MIMO 4x4:4 2.4GHz, 4x4:4 5GHz Performance & Capacity Coverage Range Up to 175 meters (574 ft) SSIDs 32 total, 16 per radio Concurrent Clients 512 Hardware & Power Network Interfaces 2x 2.5G Base-T (PoE+) RJ-45 Ports Power over Ethernet (PoE) 802.3at PoE+ Maximum Power Consumption 21W Security Wi-Fi and System Security WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device Physical Mounting Indoor wall mount or ceiling mount, kits included LEDs 3 tri-color LEDs for device tracking and status indication Dimensions 205.3mm x 205.3mm x 45.9mm Environmental Operating Temperature 0C to 50C Humidity 10% to 95% Non-condensing Package Contents Package Contents GWN7664E 802.11ax Wireless AP, Mounting Kits, Quick Start Guide
