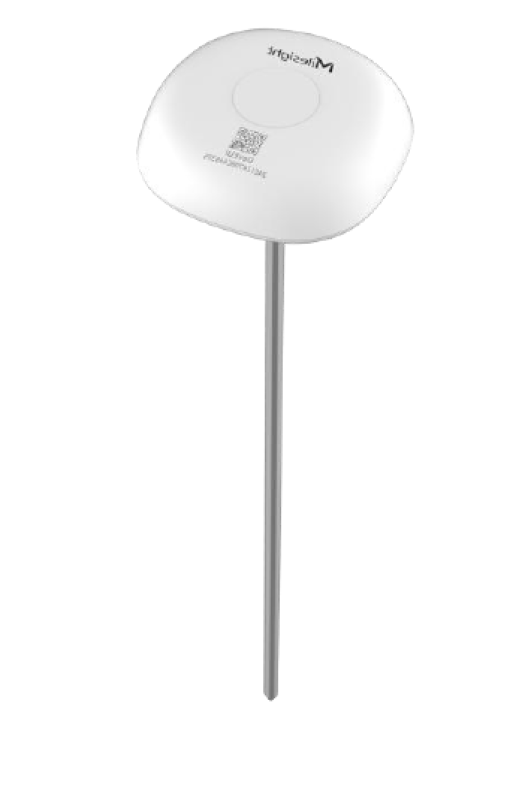

TS101 Lorawan Industrial Insertion Temperature Sensor

Rugged, High-Precision Temperature Monitoring for Demanding Environments The Milesight TS101 is a robust, all-in-one insertion temperature sensor designed for accurate and reliable monitoring in challenging industrial and agricultural applications. This LoRaWAN-enabled smart probe is ideal for measuring the internal temperature of bulk materials such as grain stacks, hay bales, compost piles, and tobacco.

Its durable, food-grade construction and advanced features ensure long-term, maintenance-free operation. Key Features: High-Accuracy Sensing: Equipped with a high-precision DS18B20 digital temperature sensor, the TS101 delivers an accuracy of 0.5C and a resolution of 0.1C. Built for Harsh Conditions: The sensor features a rugged IP67 waterproof and IK10 impact-resistant enclosure, making it suitable for deployment in dusty, corrosive, and moisture-prone environments.

The probe is made from 316 food-grade stainless steel and is resistant to phosphine corrosion. Long-Range Wireless Connectivity: Leveraging LoRaWAN technology, the TS101 can transmit data up to 10 km in line-of-sight conditions, ensuring reliable communication even in large warehouses or agricultural fields.

Extended Battery Life: A powerful 4000 mAh replaceable Li-SOCl2 battery provides up to 10 years of operation, minimizing maintenance needs. Onboard Data Storage: The device can store up to 1200 historical data records locally, with support for data retransmission to prevent data loss. Simple Configuration: NFC (Near Field Communication) allows for quick and easy configuration using a mobile app.

Seamless Integration: Fully compatible with standard LoRaWAN gateways and network servers like Milesight IoT Cloud, The Things Network (TTN), and ChirpStack. Applications: The Milesight TS101 is the perfect solution for temperature monitoring in: Agriculture (Haystacks, Grain Silos) Warehousing and Bulk Material Storage Compost and Waste Management Food Storage and Cold Chain Logistics Technical Specifications Wireless Transmission Protocol LoRaWAN Frequency CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 Tx Power 16 dBm (868 MHz) / 20 dBm (915 MHz) / 19 dBm (470 MHz) Sensitivity -137 dBm @300bps Mode OTAA/ABP Class A Measurement Sensor Type DS18B20 Digital Temperature Sensor Detecting Range -30C to +70C Accuracy 0.5C Resolution 0.1C Software Configuration NFC Configuration via Mobile App Advanced Features Data Storage (1200 entries), Data Retransmission, Abrupt Temperature Change Alarm Physical Characteristics Power Supply 1 x 4000 mAh ER18505 Li-SOCl2 Replaceable Battery Battery Life Up to 10 Years Operating Temperature -30C to +70C Ingress Protection IP67 Impact Resistance IK10 Material Transceiver: ABS+PC (Food-Grade), Sensor Probe: 316 Stainless Steel
