Ubiquiti Unifi Pro Max 24-PORT Layer 3 Multi-gigabit Poe++ Switch

Features

Description

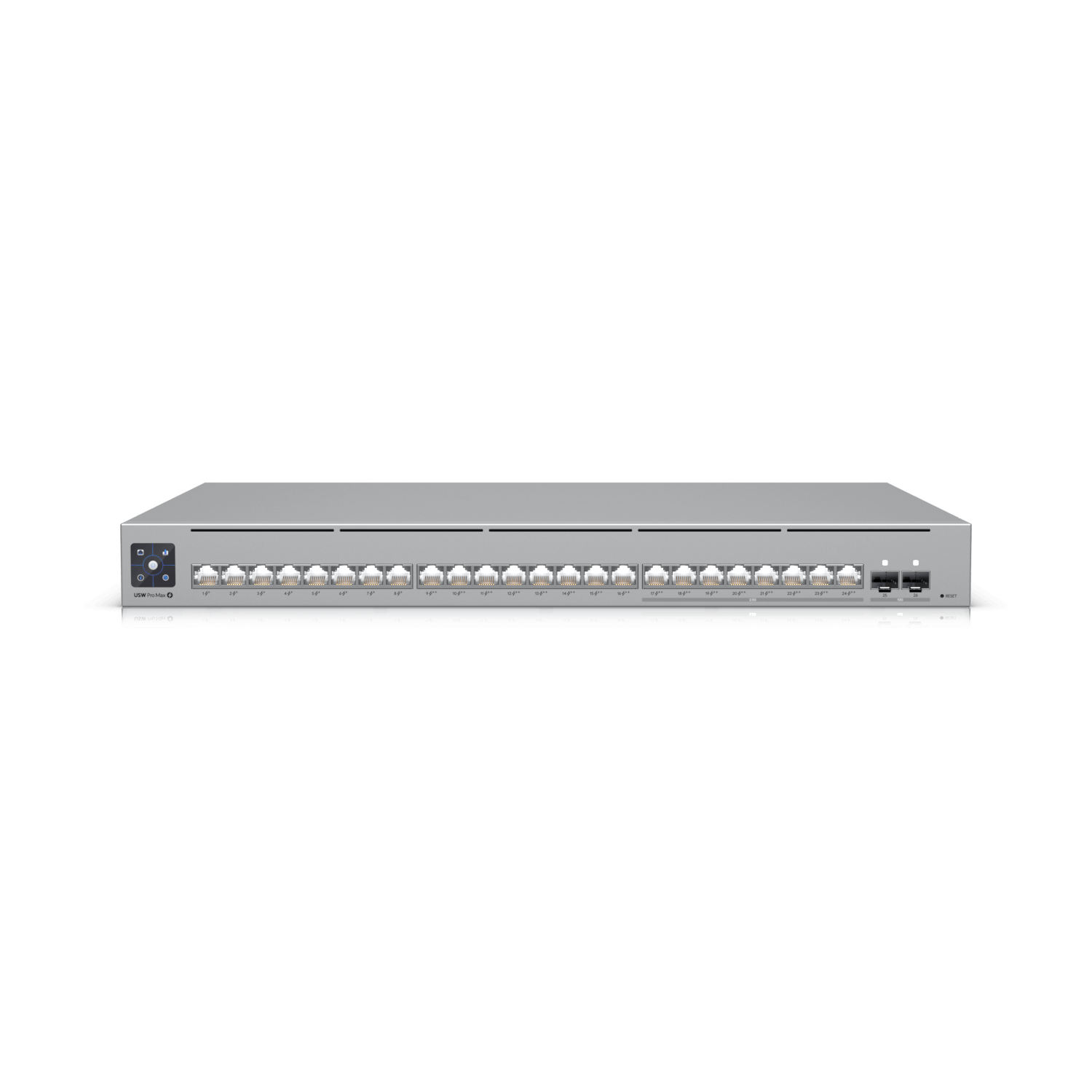

Next-Generation Network Power and Intelligence Elevate your network infrastructure with the Ubiquiti UniFi Pro Max 24 PoE, a high-performance Layer 3 switch engineered for the most demanding environments. This switch is the ultimate solution for powering a new generation of WiFi 6/7 access points, high-resolution IP cameras, and other power-hungry devices.

With a massive 400W total PoE budget and a versatile array of multi-gigabit ports, the USW-Pro-Max-24-PoE is built to handle the future of enterprise networking. Unprecedented PoE and High-Speed Connectivity The UniFi Pro Max 24 PoE features a powerful combination of ports to support any device you throw at it.

It includes eight 2.5 GbE PoE++ ports and sixteen Gigabit Ethernet ports, with eight providing PoE+ and the other eight delivering full 60W PoE++ power. This ensures you can power everything from standard PoE devices to the most demanding professional equipment. For high-speed uplinks to your core network or storage, two 10G SFP+ ports provide lightning-fast fiber connectivity.

Innovative Etherlighting for At-a-Glance Insights Revolutionize your network management with Ubiquiti's innovative Etherlighting technology. These unique illuminated ports provide instant visual feedback on port location, speed, link status, and native VLAN/network, dramatically simplifying troubleshooting and network administration.

When paired with UniFi Etherlighting Patch Cables, you'll experience optimal brightness and clarity. Robust Performance and Layer 3 Flexibility Engineered for non-blocking performance, the switch boasts a 112 Gbps switching capacity and a 56 Gbps total non-blocking throughput, ensuring all ports can operate at their full potential simultaneously.

As a Layer 3 switch, it offers advanced features like inter-VLAN routing, static routing, and DHCP server functionality, providing greater network segmentation and control. The intuitive 1.3" touchscreen display allows for easy monitoring and quick troubleshooting right from the rack. Centralized Management and Redundancy Like all UniFi devices, the Pro Max 24 PoE is seamlessly managed through the centralized UniFi Network Controller.

This powerful platform allows for easy configuration, monitoring, and management of your entire network from a single, unified interface. For enhanced reliability, the switch is equipped with a DC power backup input, ready to connect to a UniFi SmartPower RPS for uninterrupted operation during a power outage.

Hardware Dimensions 442 x 325 x 44 mm (17.4 x 12.8 x 1.7") Weight Without mounting brackets: 5.1 kg (11.3 lb)With mounting brackets: 5.2 kg (11.5 lb) Enclosure Material SGCC Steel Management Interface Ethernet In-Band Networking Interface (16) GbE RJ45 Ports(8) 1/2.5 GbE RJ45 Ports(2) 10G SFP+ Ports PoE Interface (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)(16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) Total Non-Blocking Throughput 56 Gbps Switching Capacity 112 Gbps Forwarding Rate 83.328 Mpps Power Method (1) Universal AC input, 100-240V AC, 50/60 Hz(1) USP-RPS DC input Power Supply AC/DC, Internal, 450W Supported Voltage Range 100-240V AC Max.

Power Consumption (Excluding PoE Output) 50W Total Available PoE 400W Max. PoE Wattage per Port by PSE PoE+: 30WPoE++: 60W LCM Display 1.3" Touchscreen Operating Temperature -5 to 40 C (23 to 104 F) Operating Humidity 10 to 90% Noncondensing Certifications CE, FCC, IC Switching Features Layer 2 Features IGMP snooping, STP/RSTP, Port isolation, Storm control, Voice VLAN, Port mirroring, LACP port aggregation, MAC address blocking, Flow control, 802.1X control, Jumbo frames, DHCP snooping/guarding, Egress rate limit, LLDP-MED, and more.

Layer 3 Features DHCP for locally-managed networks, DHCP relay, Inter-VLAN routing, Static routing. Application Requirements UniFi Network Version 8.0.24 and later
