S1000-4P2F 6-PORT Unmanaged Fast Ethernet Poe+ Switch 60W

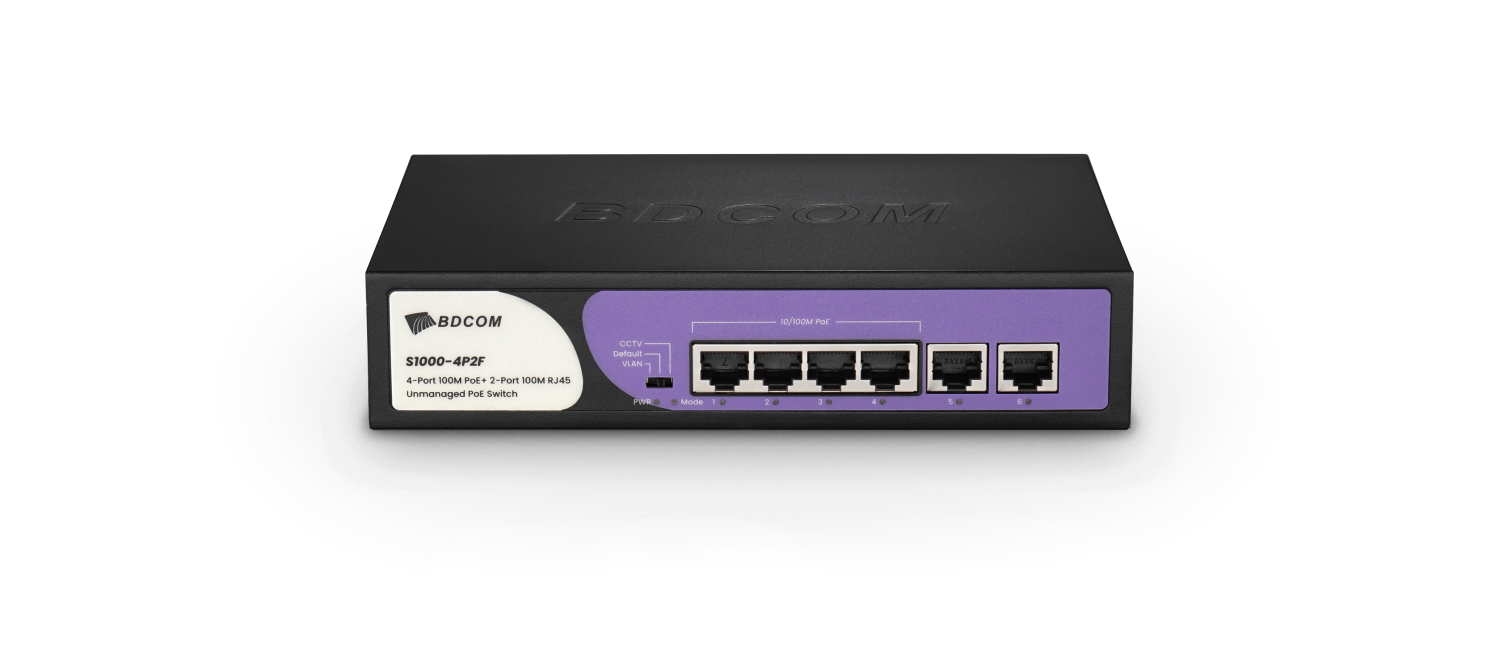

Power and Connect Your Network with Plug-and-Play Simplicity The BDCOM S1000-4P2F is a robust and compact unmanaged PoE+ switch designed for reliable, cost-effective connectivity in small networks, such as CCTV installations, small offices, and home labs. It features four 10/100M PoE+ ports to deliver both power and data to devices like IP cameras, VoIP phones, and wireless access points, alongside two dedicated 10/100M RJ45 uplink ports for a stable connection to your network backbone.

With a total power budget of 60W and support for the IEEE 802.3af/at standards, it can supply up to 30W per port, offering flexibility for a variety of device requirements. Engineered for Versatility and Reliability This switch is built for ease of use with its plug-and-play, unmanaged operation requiring zero configuration.

A key feature is the integrated DIP switch that allows you to select from three operational modes: Default (standard operation), VLAN (isolates ports 1-4 from each other), and CCTV (extends the transmission range for long-distance camera installations). The fanless design ensures silent operation, making it ideal for desktop placement in noise-sensitive environments.

Housed in a compact metal enclosure and featuring a built-in AC power supply and 6KV lightning protection, the S1000-4P2F is engineered for durability and stable, long-term performance. Technical Specifications Model S1000-4P2F Hardware & Performance Ports 4 x 10/100M PoE Ports + 2 x 10/100M RJ45 Uplink Ports Switching Capacity 1.2Gbps MAC Address Table 1K Buffer Size 448Kb Working Modes DIP Switch for Default, VLAN, and CCTV modes Power over Ethernet (PoE) PoE Standard IEEE 802.3af/at PoE Power Budget 60W Total Max Power Per Port 30W Physical & Environmental Power Supply Built-in AC: 100-240V, 50/60Hz Dimensions (W x D x H) 200mm x 118mm x 44mm Weight Approx. 1000g Cooling Fanless Lightning Protection 6KV Operating Temperature 0C to 50C Operating Humidity 10% to 90% (non-condensing)
