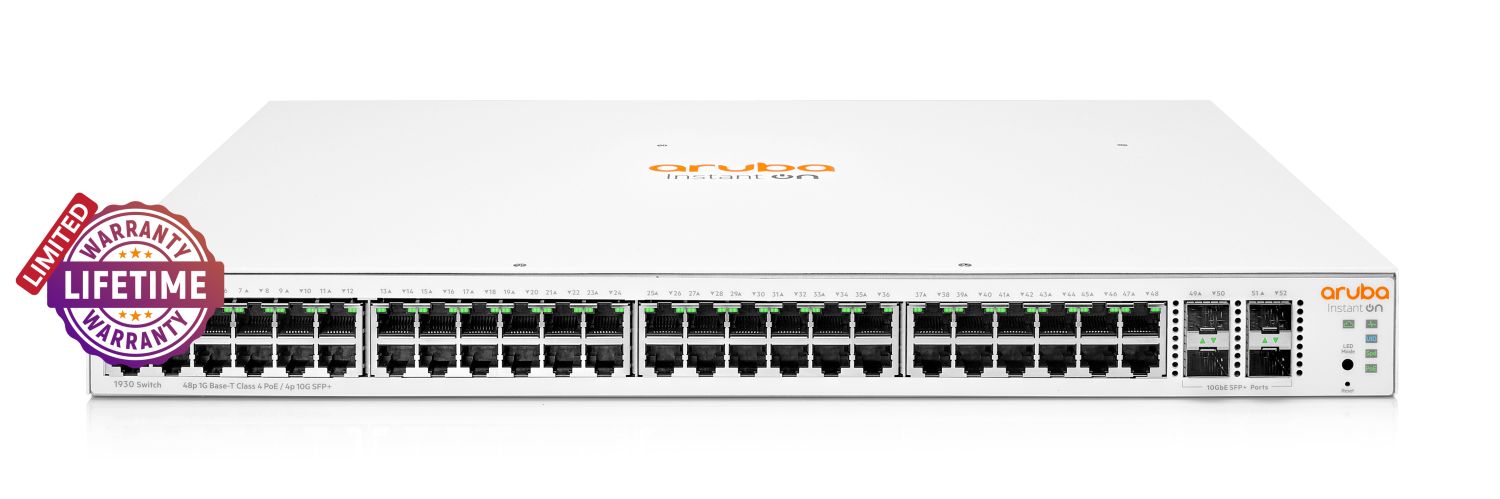

HPE Instant On 1930 48-PORT Gbe + 4-PORT 10G Sfp+ Managed Switch

Features

Description

High-Performance, Simplified Networking for Your Growing Business Elevate your small business network with the HPE Networking Instant On 1930 Switch. This advanced, smart-managed switch is engineered for businesses that require a reliable, high-performance network to handle bandwidth-intensive applications like video conferencing, cloud storage, and VoIP.

With 48 Gigabit Ethernet ports and four 10GbE SFP+ uplink ports, it provides a powerful foundation to connect all your critical devices, from computers and servers to wireless access points and IP cameras. The high switching capacity of 176 Gbps ensures smooth, bottleneck-free data flow across your entire network.

Effortless Setup and Management, Anywhere The Instant On 1930 series redefines network simplicity. Deploy it straight out of the box with plug-and-play ease. For management, you have the flexibility to choose what works best for you. Use the intuitive Aruba Instant On mobile app or the cloud-based web portal to set up, monitor, and manage your network from anywhere, at any time.

For those who prefer traditional management, a local web GUI is also available. This dual-management approach makes it perfect for organizations with or without dedicated IT staff. Robust Security and Advanced Features Keep your business data safe with integrated, robust security features. The 1930 switch protects your network from unauthorized access with tools like IEEE 802.1X, VLANs, and Access Control Lists (ACLs).

It also features automatic denial-of-service (DOS) protection to monitor and shield your network against malicious attacks. Go beyond basic connectivity with Layer 2+ features, including static routing, which allows you to create a more efficient and segmented network without extra cost. Future-Proof Connectivity Designed for both current needs and future growth, the HPE Instant On 1930 provides a scalable solution.

The four 1G/10G SFP+ ports are ideal for high-speed fiber connections to servers or other core network switches, eliminating traffic bottlenecks and ensuring your network is ready for future bandwidth demands. Compliant with Energy-Efficient Ethernet standards, this switch also helps reduce operational costs by lowering power consumption during periods of low network activity.

Comprehensive Specifications Key Specifications Product Number JL685A Ports 48 x RJ-45 10/100/1000 ports4 x SFP 1/10GbE ports Performance - Switching Capacity: 176 Gbps - Throughput: 130.95 Mpps - MAC Address Table Size: 16,000 entries - Packet Buffer: 1.5 MB Processor and Memory ARM Cortex-A9 @ 800 MHz512 MB SDRAM, 256 MB flash Management Aruba Instant On Portal, Cloud-based Mobile App, Web Browser, SNMP Manager Layer Support Layer 2+ / Smart-Managed PoE Capability None (This is a non-PoE model) Power - Input Voltage: 100 - 240 VAC - Power Consumption: 36.9 W (maximum), 16.8 W (idle) Physical Dimensions 4.39 x 44.25 x 28.24 cm (1.73 x 17.42 x 11.12 in) Weight 3.13 kg (6.91 lb) Mounting Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit included) Warranty Limited Lifetime Warranty
