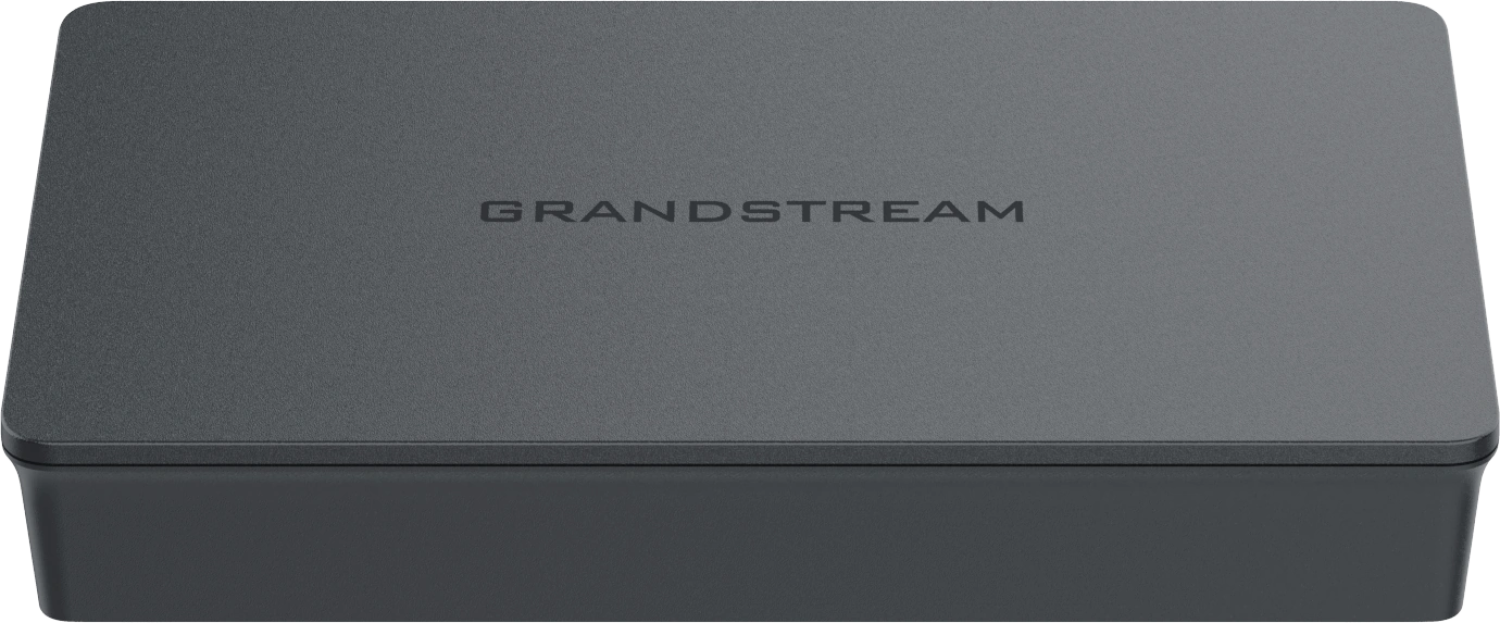

Grandstream GWN7700 5-PORT Gigabit Unmanaged Desktop Switch

Effortless, High-Speed Network Expansion The Grandstream GWN7700 is an unmanaged network switch designed to provide a simple, reliable, and cost-effective solution for expanding your network in home offices and small to medium-sized businesses. This plug-and-play switch requires zero configuration, allowing you to add high-speed Gigabit connectivity to your network instantly.

Its compact and fanless design allows for silent operation and flexible placement on a desktop or mounted on a wall. Intelligent and Efficient Performance Featuring five Gigabit Ethernet ports, the GWN7700 delivers the performance needed for a stable and responsive network. It boasts a 10Gbps switching capacity, ensuring smooth data flow and eliminating bottlenecks.

Each port is equipped with auto-negotiation to intelligently detect the link speed of any 10/100/1000Mbps device and adjust for optimal performance. Additionally, Auto MDI/MDIX support eliminates the need for crossover cables, simplifying setup. The switch also incorporates green technology to reduce power consumption for an energy-efficient operation.

Built for Reliability The GWN7700 is built with features to ensure a stable network environment. It includes storm control for broadcast, multicast, and unicast traffic to prevent network disruptions and supports QoS for prioritizing important traffic. With a 2K MAC address table and support for 9KB jumbo frames, this switch is well-equipped to handle the demands of a modern small business network.

Technical Specifications Hardware Features Gigabit Ports 5 x 10/100/1000Mbps RJ45 Ports Enclosure Plastic Mounting Desktop / Wall-Mount LED Indicators Per port: Link/Activity (Green), Per device: Power (Green) Performance Switching Capacity 10Gbps MAC Address Table 2K Jumbo Frame 9KB Advanced Features MAC Address Auto-Learning and Auto-Aging, Auto MDI/MDIX, IEEE 802.3x Flow Control Standards and Protocols Network Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p Network Media 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex Power Power Adapter External 5V/0.6A Maximum Power Consumption 1.7W Physical and Environmental Dimensions (W x D x H) 4.72" x 2.56" x 0.96" (120 x 65 x 24.5 mm) Weight 0.22 lb (0.1 kg) Operating Temperature 0C to 40C (32F to 104F) Storage Temperature -40C to 70C (-40F to 158F) Operating Humidity 10% to 90% Non-condensing Storage Humidity 5% to 90% Non-condensing
