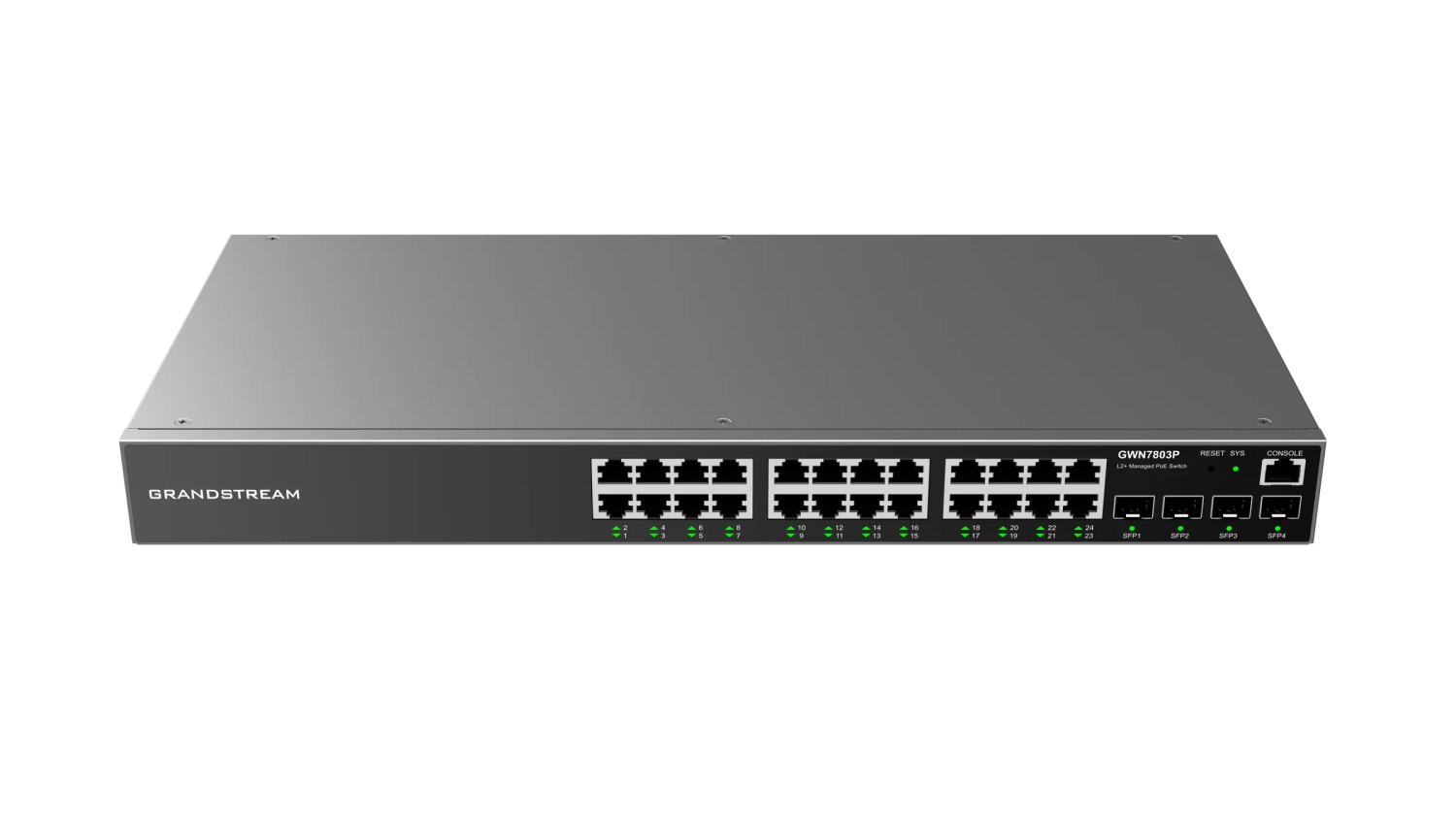

Grandstream GWN7803P 24-PORT Gigabit Poe+ Managed Switch

Power Your Network with the Grandstream GWN7803P Managed PoE+ Switch The Grandstream GWN7803P is a high-performance Layer 2+ managed network switch designed for small-to-medium enterprises looking to build a scalable, secure, and intelligent business network. This switch offers 24 Gigabit Ethernet ports, all of which support PoE/PoE+ (IEEE 802.3af/at), and 4 Gigabit SFP ports for flexible fiber uplinks.

With a total power budget of 360W, the GWN7803P can efficiently power a wide range of devices such as IP phones, IP cameras, Wi-Fi access points, and other PoE-enabled endpoints. The smart power control feature allows for dynamic PoE/PoE+ power allocation per port, ensuring optimal power distribution.

Advanced Features for a Robust Network The GWN7803P is equipped with advanced features to enhance network performance and security. It supports advanced VLAN for sophisticated traffic segmentation, and advanced QoS to prioritize latency-sensitive traffic like voice and video. Security is paramount, and this switch delivers with features like ARP Inspection, IP Source Guard, DoS protection, port security, and DHCP snooping.

Management is made easy with multiple options including a local Web UI, the GWN.Cloud online management platform, and the on-premise GWN Manager software. Built for Performance and Reliability Engineered for reliability, the GWN7803P boasts a switching capability of 56Gbps and a forwarding rate of 41.66 million packets per second to handle high-bandwidth traffic with ease.

It features a 4.1MB packet buffer and supports up to 8K MAC addresses. The switch can be deployed in various environments with desktop, wall-mount, or rack-mount options. Comprehensive Specifications Model GWN7803P Network Protocols IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af/at Gigabit Ethernet Ports 24 Gigabit SFP Ports 4 Console Port 1 PoE Ports 24 PoE Standards IEEE 802.3af/at Max PoE Power per Port 30W Total PoE Power Budget 360W Integrated Power Supply 400W Total non-blocking throughput 28Gbps Switching Capability 56Gbps Forwarding Rate 41.66 Mpps Packet Buffer 4.1MB MAC Address Table 8K VLANs 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN Link Aggregation 8 link aggregation groups Spanning Tree Protocol 64 instances for STP/RTSP/MSTP Multicast IGMP Snooping, MLD Snooping, MVR Mounting Desktop, wall-mount, rack-mount (brackets included) Dimensions 440mm(L) x 200mm(W) x 44mm(H) Weight 3.30kg Package Contents GWN7803P Switch, 1x 1.2m AC Cable, 1x Ground Cable, Rack-mounting Brackets, 4x Rubber Feet, 2x Lug Ears
