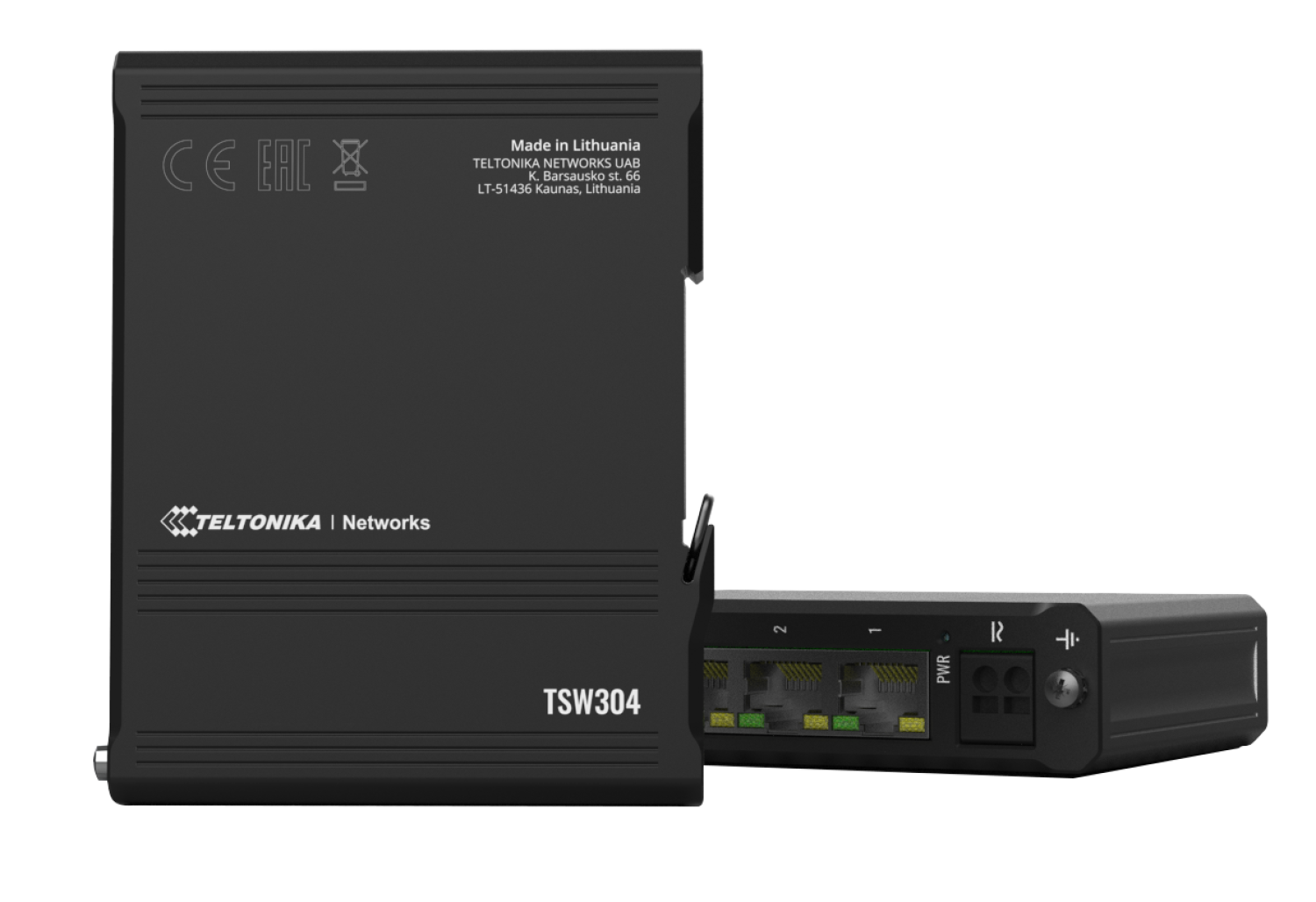

TSW304 4-PORT Industrial Gigabit Ethernet Switch

Features

Description

Teltonika TSW304: The Ultra-Compact, Plug-and-Play Industrial Gigabit Switch Experience robust and reliable network connectivity in the most space-constrained environments with the Teltonika TSW304. As the smallest switch in the Teltonika Networks portfolio, this device is engineered for industrial applications where space and durability are critical.

Its ultra-compact design and integrated DIN rail mount allow for effortless installation in any server cabinet. The TSW304 is an unmanaged switch, meaning it offers a true plug-n-play experience with no additional configuration required. Built for Harsh Environments The TSW304 is housed in a rugged, shock-resistant aluminum casing, ensuring longevity and reliable operation in challenging industrial settings.

With a wide operating temperature range of -40C to 75C and an IP30 rating, this switch is built to withstand extreme conditions. Its fanless design ensures silent operation, making it suitable for a variety of environments. High-Performance Gigabit Connectivity Despite its small size, the TSW304 delivers powerful performance.

It features four Gigabit Ethernet ports, each offering speeds up to 1000 Mbps, to support high-bandwidth applications. With a non-blocking bandwidth of 8 Gbps, you can expect full-speed traffic across all ports. The switch also supports jumbo frames up to 9216 bytes for more efficient data transfer.

Flexible Powering Options The TSW304 offers a wide range of supported power supply voltages, from 7-57 VDC and 9-40 VAC, providing flexibility for various industrial setups. Additionally, it supports passive Power over Ethernet (PoE) on the first LAN port, allowing for simplified installation with a single cable for both power and data.

Ethernet LAN 4 x RJ45 ports, 10/100/1000 Mbps Standards IEEE 802.3, IEEE 802.3u, 802.3az Performance Specifications Bandwidth (Non-blocking) 8 Gbps Packet Buffer 128 KB MAC Address Table Size 2K entries Jumbo Frame Support 9216 bytes Power Connector 2-pin industrial power socket Input Voltage Range 7 - 57 VDC; 9 - 40 VAC PoE (passive) Mode B, 9-30 VDC (on ETH1) Power Consumption Idle: 0.26 W / Max: 1.44 W Physical Interfaces Ethernet 4 x RJ45 ports, 10/100/1000 Mbps Status LEDs 1 x Power LED, 8 x LAN status LEDs Power 1 x 2-pin power socket Ground 1 x Grounding screw Physical Specification Casing Material Aluminum housing Dimensions (W x H x D) 102 x 25 x 81.5 mm Weight 210 g Mounting Integrated DIN rail, wall mounting options Operating Environment Operating Temperature -40 C to 75 C Operating Humidity 5% to 95% non-condensing Ingress Protection Rating IP30
