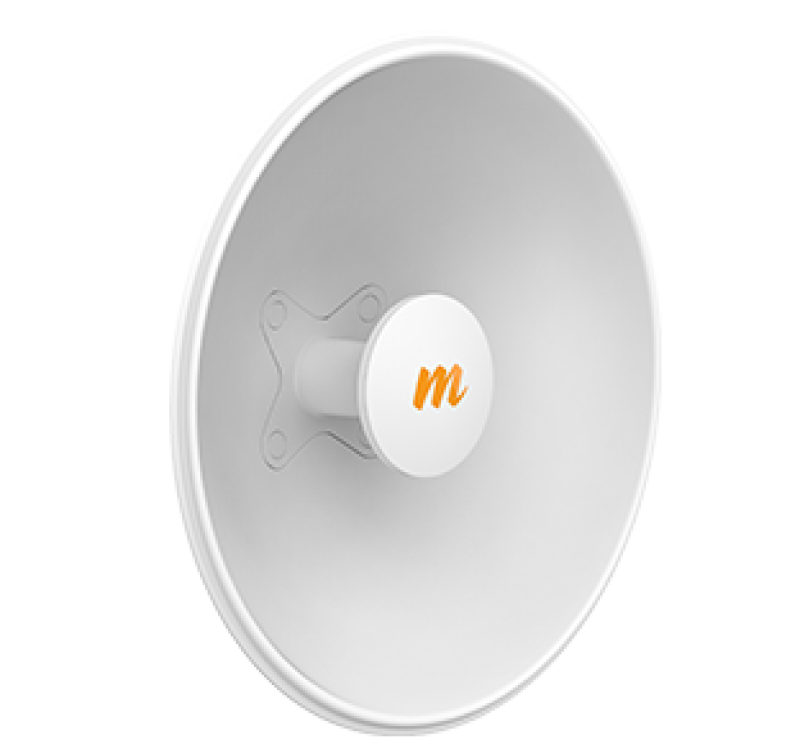

N5-X25 25 Dbi Twist-on Dish Antenna

Unleash Unprecedented Wireless Performance Experience a new level of wireless connectivity with the Mimosa N5-X25, a high-gain, 25 dBi twist-on dish antenna. This modular antenna is engineered for seamless integration with Mimosa's C5x and C6x client radios, as well as the B5x and B6x backhaul radios, delivering exceptional performance and flexibility for your network deployments.

By significantly boosting the native gain of your radio, the N5-X25 is the ideal solution for long-distance point-to-point (PTP) and point-to-multipoint (PTMP) links, ensuring reliable and high-throughput connections. Extended Frequency for Interference-Free Operation Escape the congested 5 GHz spectrum and achieve superior link stability.

The N5-X25 is optimized for the C5x's extended frequency range of 4.96.4 GHz, allowing you to operate in cleaner, licensed spectrum where permitted by local regulations. This capability, combined with best-in-class noise immunity, ensures your network performs optimally even in noisy RF environments.

Rugged and Reliable Design Built to withstand the harshest environmental conditions, the Mimosa N5-X25 features an ultra-rugged design with a wind survivability of 200 km/h (125 mph). Its robust construction guarantees the longevity and reliability of your wireless links, minimizing downtime and maintenance costs.

The simple twist-on mount ensures a quick and secure attachment to the radio, streamlining the installation process. Technical Specifications Specification Value Gain 25 dBi Polarization Dual-Slant 45 Frequency Range 4.96.4 GHz Beamwidth (3dB) 8 Front-to-Back Ratio (min) 40 dB Front-to-Side Ratio (min) >45 dB Mount Mimosa N5-X twist-on Wind Survivability 200 km/h (125 mph) Wind Loading 36.26 kg @ 160 km/h (79.95 lbs @ 100 mph) Dimensions (Diameter x Depth) 429 mm x 116 mm (16.89 x 4.57) Weight 0.98 kg (2.15 lbs) Operating Temperature -40C to +55C (-40F to 131F)
