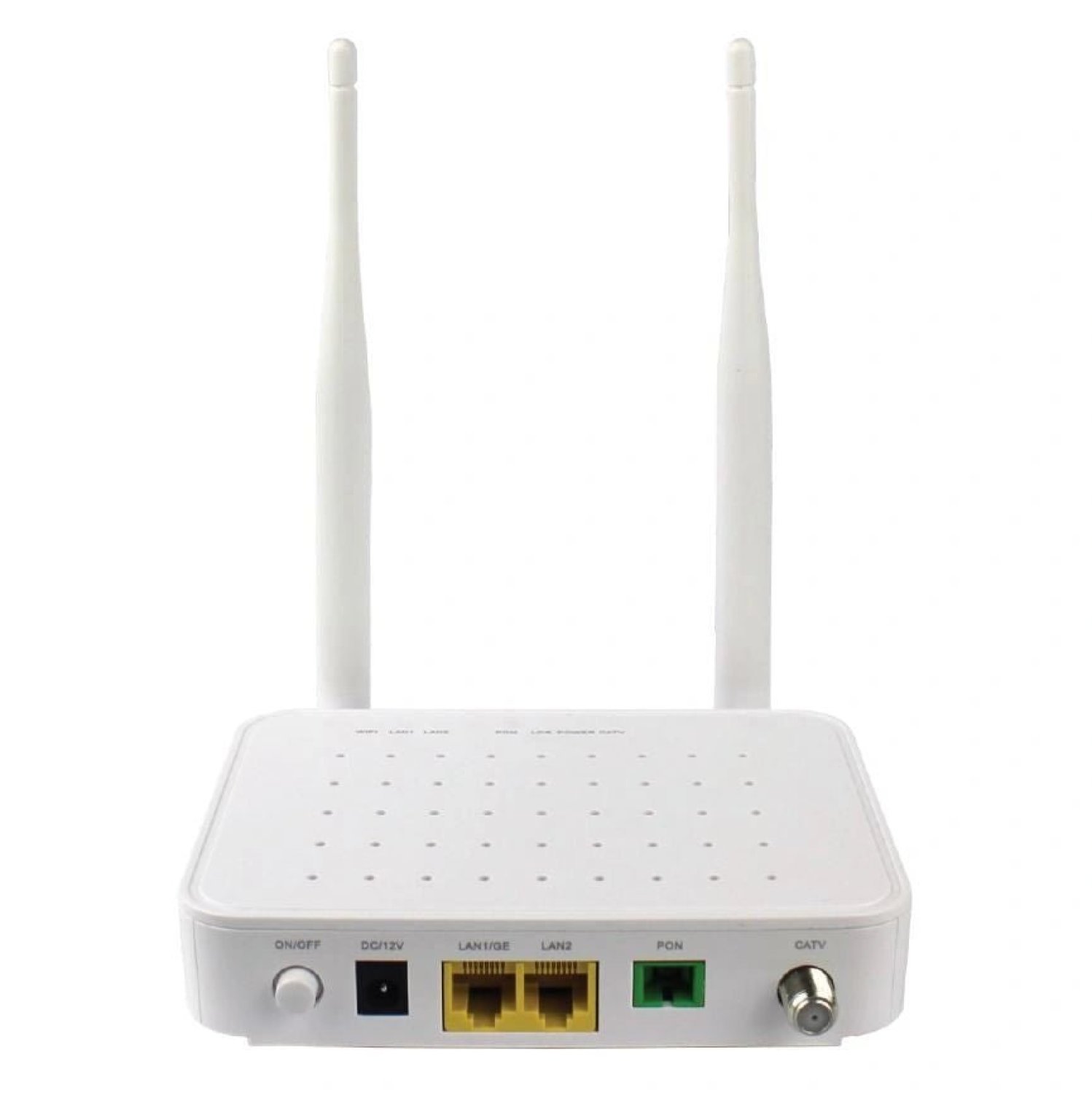

GP1704-2FC-S Xpon Gateway With Gigabit Lan 300MBPS Wi-fi & Catv

All-in-One Fiber, TV, and Internet Solution Experience a seamless, high-speed connection with the BDCOM GP1704-2FC-S, a versatile xPON Home Gateway Unit designed for modern Fiber-to-the-Home (FTTH) deployments. This compact and efficient device integrates GPON/EPON fiber access, 300Mbps Wi-Fi, and a CATV RF port into a single unit, delivering fast, reliable, and secure internet and television services.

It's the ideal choice for service providers and homeowners looking to consolidate their network hardware without compromising on performance. Key Features Dual-Mode xPON: Automatically adapts to both GPON and EPON networks, offering maximum flexibility for different fiber infrastructures. Supports high-speed GPON rates of 2.5Gbps downstream and 1.25Gbps upstream.

Integrated CATV RF Port: Directly connect your television for high-quality cable TV services without the need for a separate set-top box, simplifying your entertainment setup. High-Speed Connectivity: Features one Gigabit Ethernet port for fast wired connections to PCs, gaming consoles, or media centers, alongside a 100M port for other devices.

Reliable Wireless Performance: Equipped with 802.11n Wi-Fi, it delivers speeds up to 300Mbps with 2x2 MIMO technology, perfect for streaming, browsing, and connecting multiple wireless devices. Advanced Management: Supports a wide range of management protocols including OMCI, TR069, WEB, CLI, and TELNET, allowing for easy configuration, performance monitoring, and remote fault diagnosis.

Robust Security & QoS: Ensure a secure and stable network with features like VLAN, ACL, MAC filtering, and Quality of Service (QoS) to prioritize traffic for a smooth online experience. Technical Specifications PON Interface Port Type 1 x SC/APC Port Standards ITU-T G.984/G.988 (GPON), IEEE802.3ah (EPON) GPON Speed Downlink: 2.5Gbps / Uplink: 1.25Gbps Splitting Ratio Up to 1:128 TX Power 0.5 ~ +5 dBm RX Sensitivity < -28 dBm User Interfaces Ethernet 1 x 10/100/1000Mbps RJ-45, 1 x 10/100Mbps RJ-45 CATV 1 x RF Port (British System) Wireless 300Mbps, IEEE 802.11b/g/n, 2x2 MIMO CATV Specifications TX Level 70 dBuV Receiver AGC Range -15 ~ -5 dBm Software & Management Management CLI, HTTP, SNMP, TR069, TELNET, OMCI Key Functions VLAN, QoS, DBA, Rate-Limit, ACL, STP, IGMP Snooping, MAC Filtering Physical & Environmental Power Supply External DC 12V / 1A Adapter Max Power Consumption 10W Dimensions (W x D x H) 140 x 105 x 30 mm Weight 0.2 kg (empty) Operating Temperature 0C to 45C Operating Humidity 10% to 85% (non-condensing)
