Knot Iot Gateway With Cellular Bluetooth & Gps

Features

Description

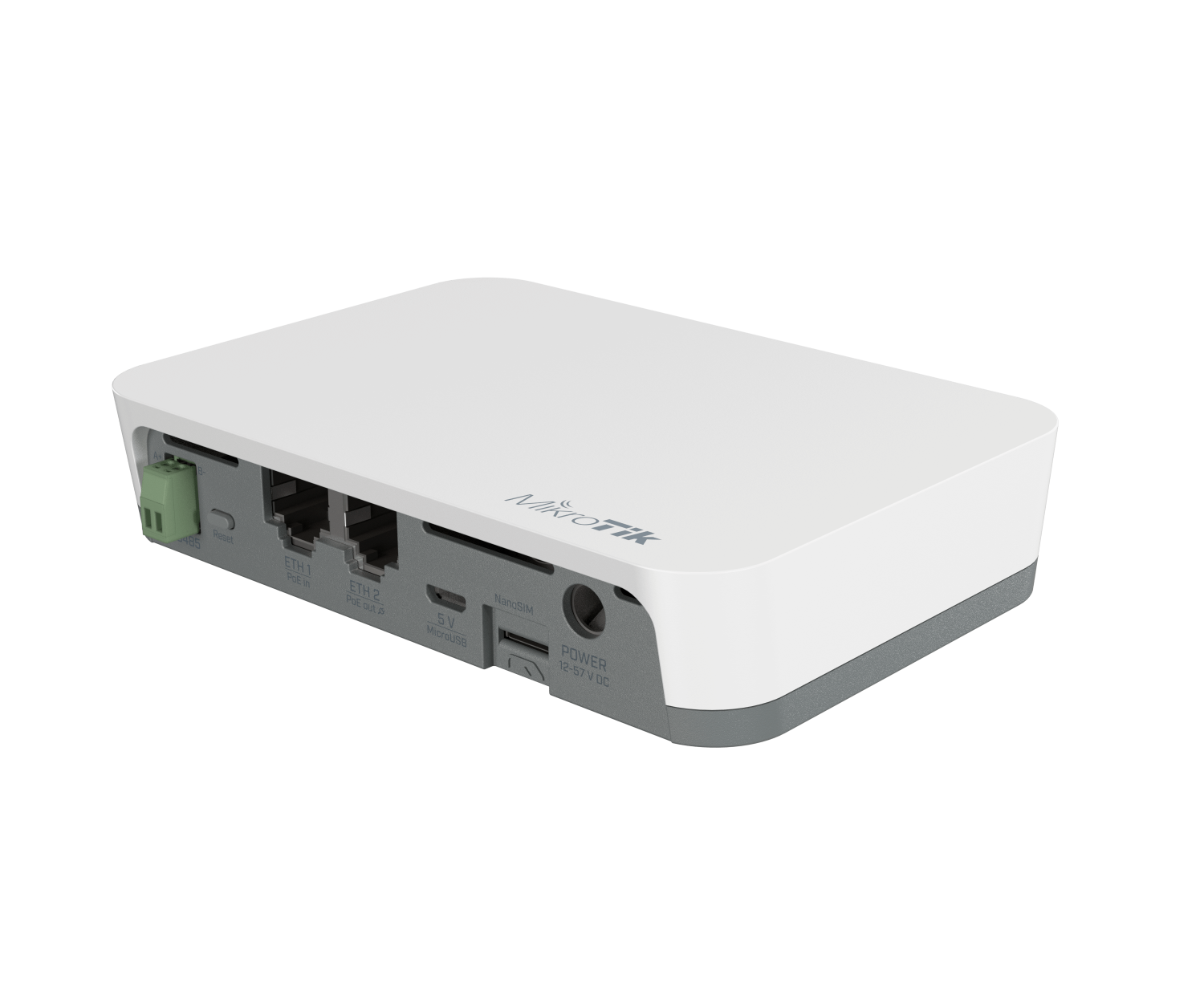

Your Bridge to the Internet of Things Introducing the MikroTik KNOT, a truly universal and versatile IoT Gateway designed to be the cornerstone of your connectivity projects. The KNOT is an exceptional solution for bringing wireless connectivity to wired sensors, monitoring assets, and serving as a cellular backup for your primary internet connection.

It leverages cutting-edge Narrowband and CAT-M cellular technologies, ensuring reliable, low-cost data transmission supported by countless mobile operators globally. Whether you're in agriculture, asset tracking, cold chain monitoring, or industrial manufacturing, the KNOT provides a robust and cost-effective solution.

Unprecedented Connectivity Options The KNOT is engineered for maximum flexibility, integrating a vast array of protocols and physical connections. It features 2.4 GHz Wi-Fi, Bluetooth 5.2, two 100 Mbps Ethernet ports with PoE-in and PoE-out, and a Micro-USB port. This device can monitor onboard GPIOs, convert Modbus protocol to TCP, and seamlessly forward Bluetooth advertisement packets (from iBeacon, Eddystone, and other BLE tags) to your TCP/IP network via HTTPS and MQTT.

This makes it an ideal tool for asset tracking and telemetry. Built for Demanding Environments Designed as a great tool for most outdoor cabinet IoT applications, the KNOT is built to last. It comes with a DIN rail mount for easy integration into various setups and can operate in extreme temperatures ranging from -40C to 70C.

You can use the KNOT as a TCP bridge from wired Modbus sensors to a server, or bring wireless connectivity to devices like electricity meters and relays. For example, you can manage a vending machine with temperature and liquid sensors using just a few megabytes of data per day, thanks to the efficiency of NB/CAT-M technology.

Comprehensive Specifications Core Specifications Product Code RB924i-2nD-BT5&BG77 Architecture MIPSBE CPU QCA9531 CPU Core Count 1 CPU Nominal Frequency 650 MHz Size of RAM 64 MB Storage Size 128 MB Storage Type NAND Operating System RouterOS v7, License Level 4 Powering Number of DC Inputs 3 (PoE-IN, DC jack, MicroUSB) PoE-in Input Voltage 18-57 V (802.3af/at) DC Jack Input Voltage 12-57 V MicroUSB Input Voltage 5 V Max Power Consumption 18 W Max Power Consumption (without attachments) 5 W Wireless & Cellular Wireless 2.4 GHz Standards 802.11b/g/n Wireless 2.4 GHz Max Data Rate 300 Mbit/s Wireless 2.4 GHz Chains 2 2.4 GHz Antenna Gain 1.5 dBi Bluetooth Version 5.2 IoT Technology Narrow Band (NB), CAT-M SIM Slots 1 Nano SIM Built-in GPS Yes (GPS, GLONASS, BeiDou, Galileo) Ethernet & Peripherals Ethernet Ports 2x 10/100 Mbps PoE Out Ports 1 Serial Port RS485 USB Ports 1x microUSB type AB Physical & Environmental Dimensions 122 x 87 x 26 mm Tested Ambient Temperature -40C to 70C MTBF Approximately 100,000 hours at 25C
