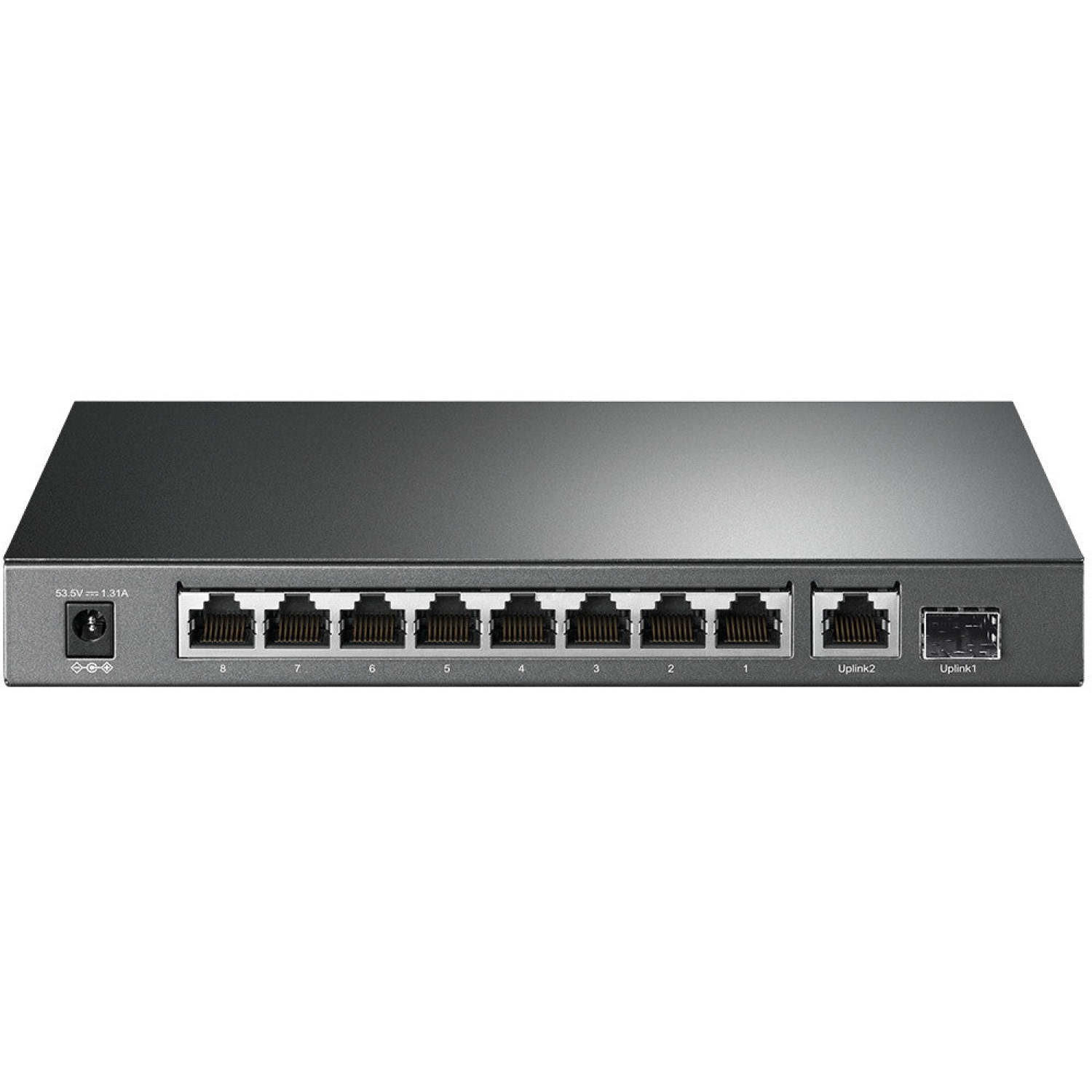

TP-link 10-PORT Gigabit Poe+ Switch With Sfp 63W Power Budget

Power and Performance for Your Growing Network Experience a seamless and powerful network expansion with the TP-Link 10-Port Gigabit Smart Switch. Designed for small to medium-sized businesses, offices, and dormitories, this switch provides a robust solution for deploying network devices without the need for additional power outlets.

With a total power budget of 63W, it efficiently powers IP cameras, access points, IP phones, and more through a single Ethernet cable. Its fanless design ensures silent operation, making it an ideal addition to any workspace. Flexible Connectivity with PoE+ and Fiber This versatile switch features 9 Gigabit RJ45 ports and one Gigabit SFP slot for fiber optic connections.

Eight of the RJ45 ports support the Power over Ethernet Plus (PoE+) standard (802.3af/at), delivering up to 30W of power per port. This high power budget is perfect for a wide range of applications, from surveillance systems to modernizing office networks. The switch also includes specialized features like Extend Mode, which allows for data and power transmission up to 250 meters, perfect for deploying IP cameras over large areas.

Optimized for Quality and Security The TP-SG1210P is engineered for reliability and high performance. It features a 20 Gbps switching capacity and a 14.88 Mpps packet forwarding rate to handle heavy traffic loads without bottlenecks. To ensure the quality of sensitive applications like voice and video calls, Priority Mode gives higher precedence to ports 1-2.

For enhanced security, Isolation Mode allows for one-click client traffic separation, preventing snooping and improving overall network performance. With simple plug-and-play setup, this switch is easy to use with no configuration required. Technical Specifications Feature Detail Hardware Features Interface 8 x PoE+ 10/100/1000Mbps RJ45 Ports1 x 10/100/1000Mbps RJ45 Port1 x Gigabit SFP Slot Network Media 10BASE-T: UTP category 3, 4, 5 cable (max 100m)100BASE-TX: UTP category 5, 5e cable (max 100m)1000BASE-T: UTP category 5, 5e, 6 or above cable (max 100m) Fan Quantity Fanless Power Supply External Power Adapter (Output: 53.5VDC / 1.31A) Dimensions (W x D x H) 8.2 x 4.9 x 1.0 in (209 * 126 * 26 mm) PoE PoE+ Ports (RJ45) Standard: 802.3at/802.3af compliantPoE Ports: Port 1 - Port 8 PoE Power Budget 63W Performance Switching Capacity 20 Gbps Packet Forwarding Rate 14.88 Mpps MAC Address Table 4K Jumbo Frame 16 KB Software Features Advanced Features Compatible With IEEE 802.3af/at Compliant PDsExtend Mode (Up to 250m PoE supply and data)Priority Mode (Ports 1-2)Isolation ModePoE Auto Recovery802.1p/DSCP QoS General Max Power Consumption 7.11 W (no PD connected)78.13 W (with 63W PD connected) Max Heat Dissipation 24.25 BTU/h (no PD connected)266.42 BTU/h (with 63W PD connected)
