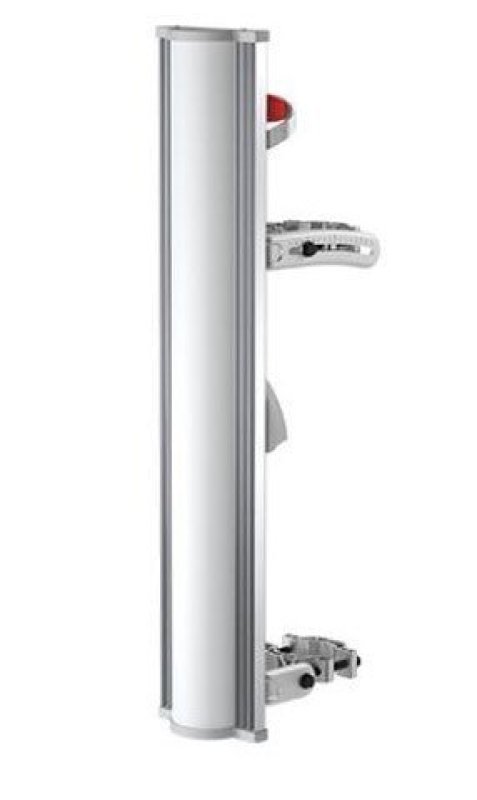

5GHZ 20DBI Array Sector Antenna With Backshield

Features

Description

Unleash Carrier-Class Performance with the RF Elements 5GHz Array Sector Antenna Experience exceptional RF performance and superior noise rejection with the RF Elements 5GHz Array Sector Antenna. This high-performance antenna is engineered for dense cluster applications and provides a stable 20 dBi gain across an ultra-wide frequency range of 5150-5850 MHz.

Its innovative design and patented BackShield technology make it an ideal solution for Wireless Internet Service Providers (WISPs) and network builders seeking to deliver fast, reliable, and interference-free wireless connectivity. Patented BackShield for Superior Co-Location Capability The integrated BackShield is a patented, frequency-selective surface that significantly attenuates side lobes and back radiation.

This technology dramatically improves the antenna's co-location capability, allowing you to deploy multiple antennas in close proximity without performance degradation from interference. Stable Gain and Wideband Performance The RF Elements Array Sector antenna delivers a consistent 20 dBi of gain across the entire 5 GHz band (5150-5850 MHz).

This ensures reliable performance regardless of the channel you use, providing maximum power transfer from your radio to the antenna thanks to its excellent VSWR values. Durable Construction and Easy Installation Constructed from high-grade aluminum alloy, UV resistant ABS plastic, and stainless steel, this antenna is both lightweight and extremely durable, built to withstand harsh outdoor environments.

It features an innovative mounting system for quick and easy installation on poles with a diameter of 40-80 mm. Broad Wireless Platform Compatibility This antenna is designed for wide compatibility with major radio platforms. It includes two RP-SMA connectors on integrated semi-flex pigtails and is compatible with radios from brands like Ubiquiti Networks, Cambium Networks, and MikroTik.

Technical Specifications Product ID AS-5-20 Performance Frequency Range 5150 - 5850 MHz Gain 20 dBi Polarization Dual Linear H + V Azimuth Beam Width -3 dB H 80 / V 71 Elevation Beam Width -3 dB H 3.5 / V 3.5 Azimuth Beam Width -6 dB H 100 / V 100 Elevation Beam Width -6 dB H 4.5 / V 4.5 Front-to-Back Ratio (Min) 30 dB Cross-Pol Isolation H 27 dB / V 27 dB Impedance 50 Ohm VSWR Max 1.7 VSWR Typical 1.4 Isolation Between Ports 30 dB Physical Antenna Connection 2x RP-SMA on integrated semi-flex pigtails Antenna Type Patch Array Sector Materials UV Resistant ABS Plastic, Aluminium Alloy, Stainless Steel Environmental IP55 Temperature -35C to +55C (-31F to +131F) Wind Survival 160 km/hour Wind Loading 160 N at 160 km/hour Pole Mounting Diameter 40-80 mm Weight 3.5 kg / 7.7 lbs Dimensions (Single Unit Retail Box) 664 x 157 x 60 mm / 26.1 x 6.1 x 2.3 inch
