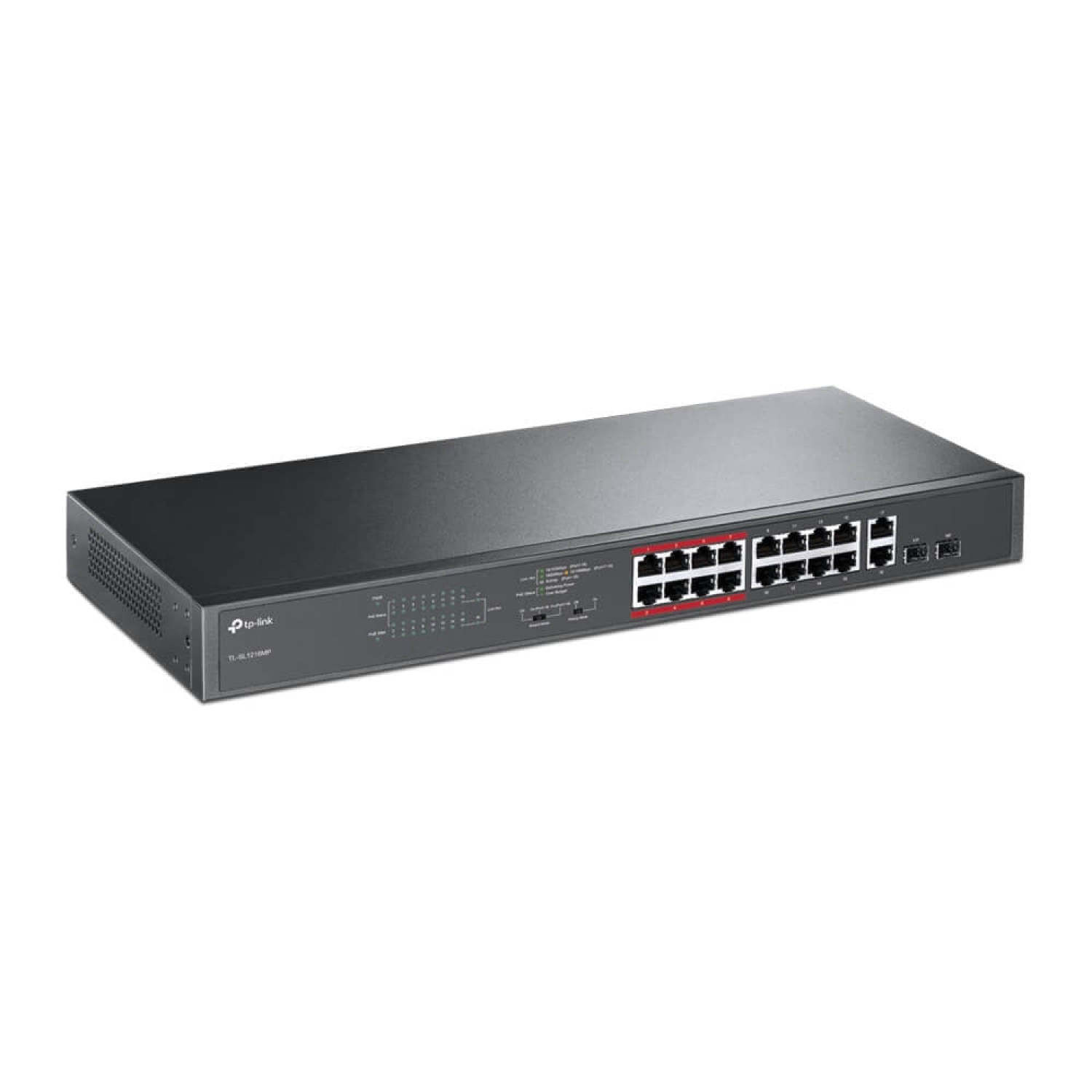

TP-link 16-PORT Poe+

Power-Packed Connectivity for Demanding Surveillance and Network Applications Unlock robust performance and simplified installations with the TP-Link TL-SL1218MP, a professional-grade PoE+ switch designed for small to medium-sized business networks. With a massive 250W total power budget, this switch effortlessly powers a wide range of devices such as IP cameras, access points, and IP phones.

It features 16 dedicated 10/100 Mbps PoE+ ports, alongside two Gigabit RJ45 ports and two combo Gigabit SFP slots for high-speed uplink connections, ensuring smooth data flow even under heavy traffic loads. Engineered for Long-Range Surveillance Specially designed for surveillance systems, the TL-SL1218MP features an innovative Extend Mode.

With the flip of a switch, you can extend PoE data and power transmission up to 250 meters, making it the perfect solution for deploying IP cameras across large areas without the need for additional extenders. For critical video feeds, Priority Mode can be enabled for ports 1-8, guaranteeing the quality and integrity of sensitive applications like video monitoring by giving them higher precedence.

Enhanced Security and Plug-and-Play Simplicity This unmanaged switch offers powerful features without complex configuration. Isolation Mode allows for one-click separation of client traffic on the 16 PoE+ ports, enhancing security and network performance. The durable metal casing and rack-mountable design allow for flexible installation either on a desktop or in a server rack.

Being a plug-and-play device, it requires no software or technical setup, allowing you to expand your network quickly and efficiently. Comprehensive Specifications Table Hardware Features Interface 16* 10/100 Mbps PoE+ RJ45 Ports 2* 10/100/1000 Mbps RJ45 Ports 2* Combo Gigabit SFP Slots Network Media 10BASE-T: UTP category 3, 4, 5 cable (max 100m) 100BASE-TX: UTP category 5, 5e cable (max 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (max 100m) Fan Quantity 2 Fans Power Supply 100-240VAC, 50/60Hz Mounting Rack Mountable / Desktop Dimensions (W x D x H) 17.3 * 7.1 * 1.7 in (440 * 180 * 44 mm) Max Power Consumption 285.8 W (with 250 W PoE device connected) PoE Features PoE+ Ports (RJ45) Standard: 802.3at/af compliant PoE Ports: Ports 1-16 PoE Power Budget: 250 W Max Power Per Port 30 W Performance Switching Capacity 7.2 Gbps Packet Forwarding Rate 5.36 Mpps MAC Address Table 8K Jumbo Frame 10 KB Software Features Advanced Features Extend Mode (Ports 1-16, up to 250m PoE supply) Priority Mode (Ports 1-8) Isolation Mode (Ports 1-16) Auto-MDI/MDIX Storm Control Others Certifications CE, FCC, RoHS Package Contents TL-SL1218MP Switch Power Cord Installation Guide Rackmount Kit Rubber Feet Environment Operating Temperature: 050 C (32122 F) Storage Temperature: -4070 C (-40158 F) Operating Humidity: 1090% RH non-condensing Storage Humidity: 590% RH non-condensing
