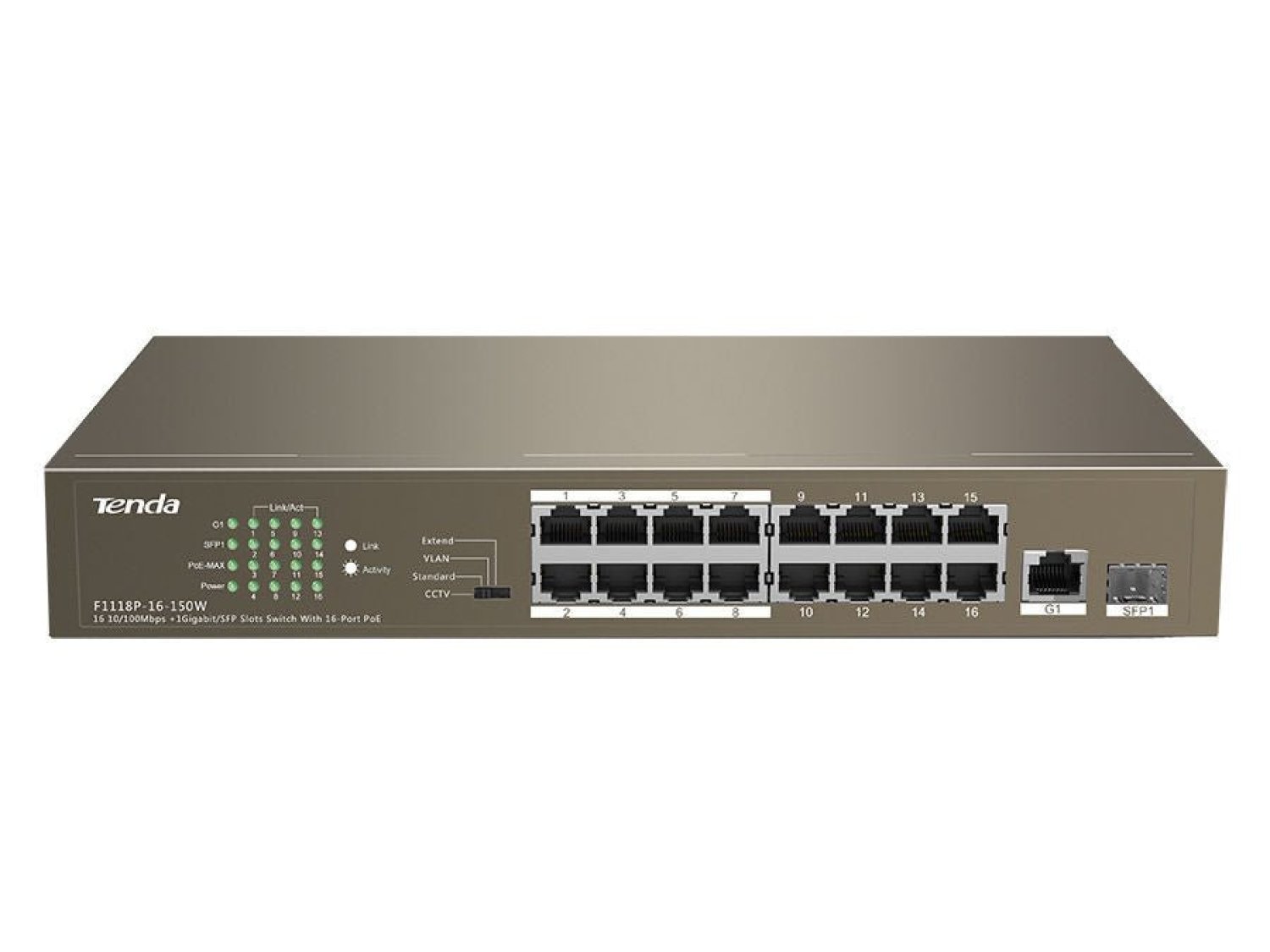

16-PORT Fast Ethernet Switch With 16-PORT Poe TEF1118P-16-150W

Power and Connect Your Network with the Tenda 16-Port PoE+ Switch The Tenda TEF1118P-16-150W is a robust and versatile unmanaged PoE switch designed to power and connect your network devices such as IP cameras, VoIP phones, and wireless access points. With 16 Fast Ethernet PoE+ ports, a Gigabit Ethernet port, and an SFP slot for fiber connectivity, this switch offers flexible and reliable performance for small to medium-sized businesses.

Its 135W total power budget ensures sufficient power for your connected devices, while features like 6kV lightning protection provide enhanced durability. Key Features: High-Power PoE+: Features 16 10/100 Mbps PoE+ ports that comply with IEEE 802.3af/at standards, delivering up to 30W per port with a total power budget of 135W.

Flexible Uplink Options: Equipped with one 10/100/1000 Mbps RJ45 port and one 1000 Mbps SFP slot, providing high-speed connections to your network backbone. Multiple Operating Modes: A hardware DIP switch allows you to easily select from four modes: Standard, CCTV, VLAN, and Extend, to optimize performance for different applications.

Extended Transmission Distance: In Extend mode, the switch can transmit data and power up to 250 meters at 10 Mbps, ideal for long-range surveillance camera installations. Enhanced Security and Stability: VLAN mode isolates ports 1-16 from each other to prevent broadcast storms and enhance security.

The switch also features 6kV lightning protection for added resilience. Rack-Mountable Design: With a sturdy metal casing and a 13-inch rack-mountable design, it can be easily integrated into your existing network setup. Technical Specifications: Model TEF1118P-16-150W Ports 16 x 10/100 Mbps Base-TX RJ45 Ports (Data/Power)1 x 10/100/1000 Mbps Base-T RJ45 Port (Data)1 x 1000 Mbps Base-X SFP Port PoE Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at PoE Power Budget Total: 135WPer Port: Up to 30W Switching Capacity 7.2 Gbps MAC Address Table 4K Forwarding Mode Store-and-Forward Operating Modes Standard, CCTV, VLAN, Extend Lightning Protection 6kV Input Voltage AC: 100-240V 50/60Hz Dimensions (W x D x H) 294mm x 178.8mm x 44mm Certifications FCC, CE, RoHS
