| Brand | Asus |
| Manufacturer | Asus |
| Model Number | ROGCROSSHAIRX870EHEROBTF |

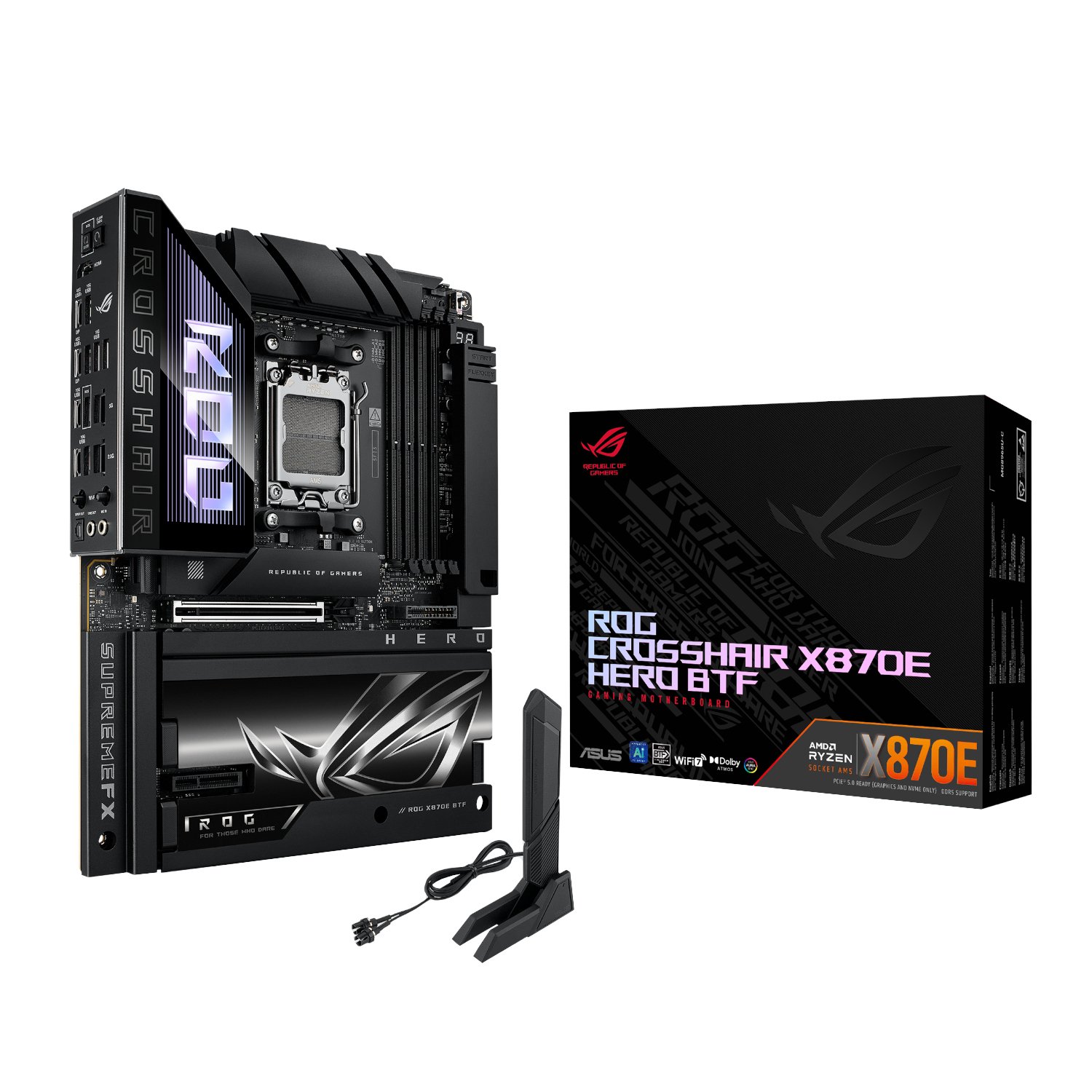

The ASUS ROG Crosshair X870E Hero BTF AMD AM5 ATX Gaming Motherboard redefines next-generation PC building with its revolutionary hidden-connector design, purpose-built for ultra-clean AMD Ryzen 9000 Series gaming rigs. Designed for South African enthusiasts who demand both performance and aesthetics, this flagship ROG motherboard integrates hidden motherboard, GPU power, USB and fan connectors to eliminate visible cables when paired with BTF-compatible graphics cards and chassis.
Powered by the AMD X870E chipset and supporting AMD Ryzen 9000, 8000, and 7000 Series desktop processors on the AM5 socket, it delivers uncompromising performance with robust power delivery, PCIe 5.0 support and advanced DDR5 memory architecture enhanced by NitroPath DRAM Technology. With Polymo Lighting II adding dynamic RGB illumination, your build doesnt just perform at elite levels it looks exceptional from every angle.Built for cutting-edge gaming, streaming and content creation, the Crosshair X870E Hero BTF supports up to 256GB of DDR5 memory with speeds reaching 8200+MT/s (OC) on Ryzen 9000 Series processors, alongside AMD EXPO, AEMP and DIMM Fit technologies for optimised stability and overclocking precision.
Storage flexibility is unmatched, offering up to five M.2 slots (including PCIe 5.0 x4 support for Ryzen 9000 & 7000 Series CPUs) plus four SATA 6Gb/s ports with AMD RAIDXpert2 support. Connectivity is equally future-ready, featuring dual USB4 40Gbps Type-C ports, Wi-Fi 7 (802.11be) with 320MHz bandwidth, Bluetooth 5.4, Intel 2.5Gb Ethernet and Realtek 5Gb Ethernet.
SupremeFX audio with the ALC4082 codec and ESS ES9219 QUAD DAC ensures crystal-clear 32-bit/384kHz playback, making it ideal for immersive gaming and high-fidelity media experiences.FEATURES: Advanced BTF Hidden-Connector Design Graphics card high-power slot delivers up to 600W to BTF GPUs, eliminating visible cables for a cleaner ATX build.
AMD AM5 Platform with X870E Chipset Supports Ryzen 9000, 8000 and 7000 Series processors with PCIe 5.0 readiness. Extreme DDR5 Performance Up to 256GB DDR5, 8200+MT/s (OC)*, NitroPath DRAM Technology, AMD EXPO, AEMP and Dual-Channel architecture. Next-Gen Storage 5 x M.2 slots (up to PCIe 5.0 x4**) + 4 x SATA 6Gb/s with RAID 0/1/5/10*** support.
Blazing Connectivity Dual USB4 (40Gbps), 8 x USB 10Gbps rear ports, Wi-Fi 7 (2x2, 2.4/5/6GHz), Bluetooth 5.4, 2.5Gb + 5Gb Ethernet. Premium ROG SupremeFX Audio ALC4082 codec, ESS ES9219 QUAD DAC, 120dB SNR playback, 32-bit/384kHz support, gold-plated jacks & optical S/PDIF. SPECIFICATIONS: CPU: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset AMD X870E Memory 4 x DIMM slots, max.256GB, DDR5 Supports up to: 8200+MT/s(OC) with Ryzen 9000 Series Processors, 8600+MT/s(OC) with Ryzen 8000 Series Processors, 8000+MT/s(OC) with Ryzen 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) Supports DIMM Fit and DIMM Fit Pro NitroPath DRAM Technology ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration,for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics 1 x HDMI port* 2 x USB4 (40Gbps) ports support USB Type-C display outputs** Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. VGA resolution support depends on processors' or graphic cards' resolution. *Supports 4K@60Hz as specified in HDMI 2.1. **Supports max. 4K@60Hz as specified in DisplayPort 1.4a Expansion Slots AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x4/x4 modes**) **When M.2_2 is enabled, PCIEX16_1 will run x8 mode, and M.2_3 will run
