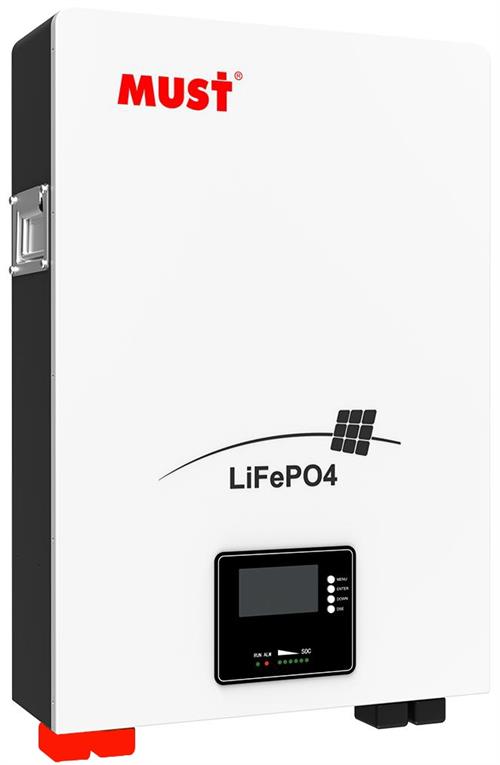

Solarix Must 51.2V 100AH LIFEPO4 Single Battery Module

Solarix Must 51.2V 100Ah LiFePo4 Single Battery Module-LCD Control Panel, Advanced BMS With Current Limiting Factor, Normal Voltage: 51.2V, Rated Capacity (5HR):110Ah, Total Usable 4.8 kWh, Maximum Continuous Charging 100A , Maximum Continuous Discharging 100A, Equalised Charge Voltage: 57.6V, Discharge Cut-off Voltage: 44.0V, Easy Wall Mount Installation, Design To Work Perfectly Hybrid Invertors Up To 7KVA, Retail Box, 3 Year Limited Warranty Solarix Must 51.2V 100Ah LiFePo4 Single Battery Module-LCD Control Panel, Advanced BMS With Current Limiting Factor, Normal Voltage: 51.2V, Rated Capacity (5HR):110Ah, Total Usable 4.8 kWh, Maximum Continuous Charging 100A , Maximum Continuous Discharging 100A, Equalised Charge Voltage: 57.6V, Discharge Cut-off Voltage: 44.0V, Easy Wall Mount Installation, Design To Work Perfectly Hybrid Invertors Up To 7KVA, Retail Box, 3 Year Limited Warranty Product OverviewThe Solarix Must 51.2V 100Ah LiFePo4 Single Battery Module is a Wall Mount Installation complete with integrated Battery Management System that is perfect for medium to large residential installation with a proven Lithium Iron Phosphate (LifePO4) chemical composition solution that offers a low internal resistance with excellent continuous high current discharge performance and great lifecycle of more than 6000 at 80% DOD.

Design To Work Perfectly with Hybrid Invertors Up To 7KVA .Built-in Intelligent Battery Management System (BMS) with RS485 and CAN Bus BMS communication. This is unit is designed for single use but can also be connected in Parallel with up to 4 battery packs. Batteries must be connected in parallel if more than one LiFePO4 battery is to be used.

CAN Bus, fully integrates and communicates with leading inverter brands (Growatt, SOLAX, LUXPower, DEYE, MUST, Voltronic, Victron, SMA, etc.) HighlightsMust 51.2V 100Ah LiFePo4 Single Battery ModuleWall Mount Installation With Brackets IncludedComplete with integrated Battery Management System (BMS)Advanced BMS With Current Limiting FactorParallel Connection Up To 4 Packs With Full Communication Communication CAN 2.0/RS232/RS485Nominal Voltage: 51.2VNominal Capacity 100AhTotal Usable 4.8 kWhMaximum Continuous Charging Current: 100AMaximum Continuous Discharging Current: 100AEqualised Charge Voltage: 57.6VLow Self-DischargeHigh Energy Density and Conversion Efficiency Built In Protection -Over-Charge, Over-Discharge, Over-TemperatureLCD Control Panel with Battery Level Indicator Bulk Voltage 55.2V-56.8VFloat Voltage 52.8V-54.4VCut-off Voltage 44.0V-45.6V SpecificationsStock Code SOLMLP1648100Description Solarix Must 51.2V 100Ah LiFePo4 Single Battery ModuleComplete with integrated Battery Management SystemRated Capacity 100AhVoltage: 51.2VDischarge Cut-off Voltage: 40.0VEqualised Charge Voltage: 57.6VMaximum Continuous Charging and Discharging Current: 100ADisplay: LCD Panel And Battery Indicator Parallel: Parallel connection up to 4 packs with full communicationsDesign Life: -/+ 15 YearsCycle Life @ 1C: +/-4000 Cycles @ 100% DOD, Above 6000 cycles @ 80% DODPorts: 1x CAN Bus, 1x RS-485 Battery Link ports, Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current LimitingDimensions (WxDxH): 400mm x 150 mm x 580mm Weight: Approx. 44kg
