| Brand | MSI |
| Manufacturer | TechTrek |
| Model Number | MSI-MAG-B760-TOMAHAWK-WIFI-DDR5-LGA1700-ATX-GAMING-MOTHERBOARD |
The MAG series, your dependable ally in the pursuit of gaming glories, is now available. These gaming gadgets were designed with military-inspired precision and have become emblems of toughness and dependability. With our M.2 SSD protection technology, you can say goodbye to sluggish load times since it guarantees top performance without throttling.
By maximising heat dissipation, the extended heatsink design keeps powerful CPUs operating at peak performance. Upper MOS heat is handled by the VRM heatsink, and excellent thermal pads ensure that all cores operate at their peak efficiency. Thanks to our dedicated water pump PIN header, which provides complete control over pump speed, get ready to explore custom water cooling solutions with ease.
Installation is simple for a precise fit with a clearly defined "keep-out-zone." Not only that, but our improved PCB design boosts bandwidth and transmission speed to guarantee faultless circuit functioning. Experience bandwidth like never before with Lightning Gen 5 PCI-E, reaching a remarkable 128GB/s on an x16 interface.
Our cutting-edge SMT technology minimises electrical noise and interference, perfectly supporting PCI-E 5.0 signals. We have used DDR5 memory technology for the highest level of memory performance and combined it with MSI Memory Boost for unmatched high-frequency signal purity. Say goodbye to electromagnetic interference and solder joint flaws.

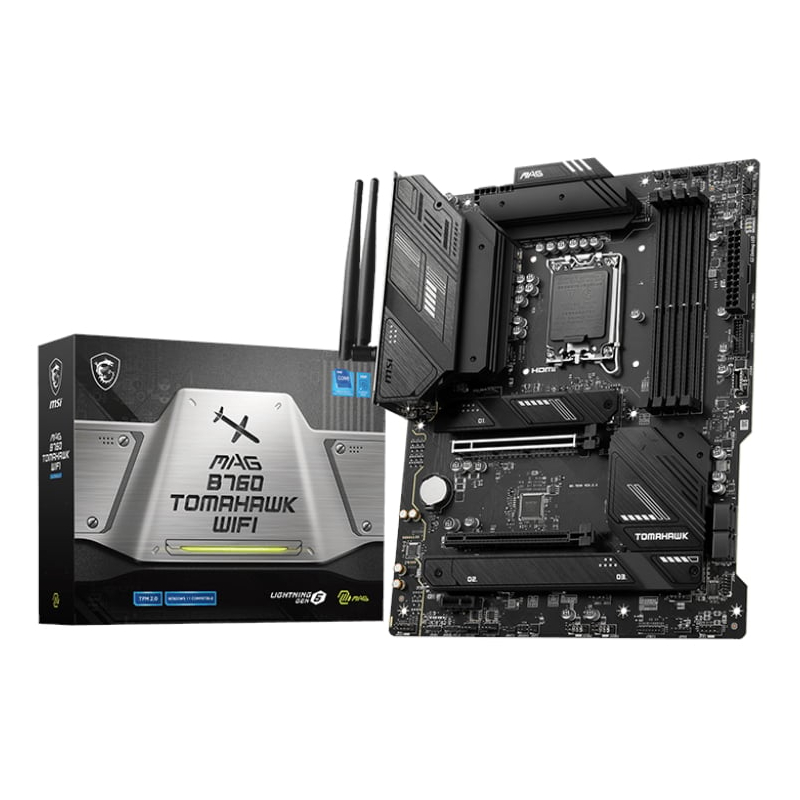

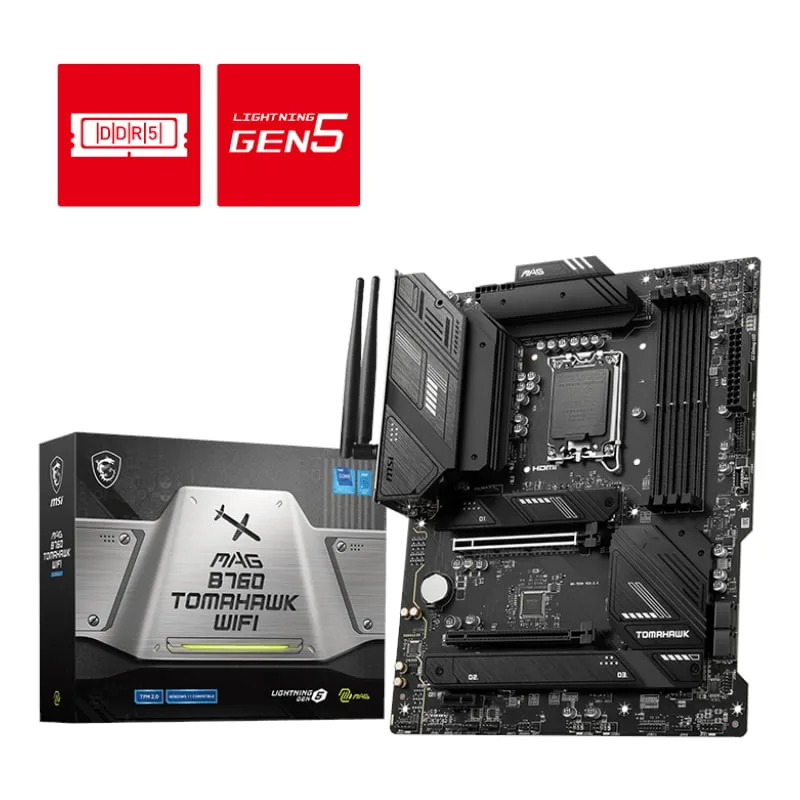

With the MAG B760 TOMAHAWK WIFI, you can rule your gaming universe with finesse and style. FEATURES: Supports 12th/ 13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket Supports DDR5 Memory, up to 7000+(OC) MHz Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2 Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high-performance systems and non-stop works AUDIO BOOST: Reward your ears with studio-grade sound quality for the most immersive gaming experience High-Quality PCB: 6-layer PCB made by 2oz thickened copper and server-grade level material SPECIFICATIONS: Socket: LGA 1700 CPU: Supports 12th/ 13th Gen Intel Core Processors, Pentium Gold and Celeron Processors Chipset: INTEL B760 DDR5 Memory: 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Memory Channel: Dual DIMM Slots: 4 Max Memory (GB): 192 PCI-E 5.0 x16: 1 PCI-E 4.0: 1 PCI-E 3.0: 1 M.2 Slot: 3 SATA 6G: 4 RAID: 0/1/5/10 LAN: Realtek RTL8125BG 2.5Gbps LAN Wi-Fi and Bluetooth: Intel Wi-Fi 6E USB 3.2 ports (Front): 1(Gen 2, Type C), 2(Gen 1, Type A) USB 3.2 ports (Rear): 1(Gen 2, Type C), 4(Gen 2, Type A) USB 2.0 ports (Front): 4 USB 2.0 ports (Rear): 4 (Type-A) Audio ports (Rear): Realtek ALC897 Codec HDMI: 1 DisplayPort: 1 DirectX: 12 Form Factor: ATX Operating System: Support for Windows 10 64-bit/11 64-bit Product Dimensions: 24.3 x 30.4 cm WHATS IN THE BOX: MSI MAG B760 Tomahawk ATX Motherboard Black x1 Wi-Fi Antenna x2 SATA cable x 1 EZ M.2 Clip x 2 USB Drive x1 Cable Stickers Pack x1 Quick Install Guide x1 User Manual x1
