Description
The battery is a lead-lead dioxide system with a nominal voltage of 12 volts and a capacity of 77 cubic feet. It has a design life of 10 years and can be used in any orientation. The battery has an absorbent glass mat (AGM) technology for efficient gas recombination of up to 99 percent and freedom from electrolyte maintenance or water adding. The battery complies with IATA/ICAO Special Provision A67UL-recognized component and can be transported air-freight. The battery has a computer-designed lead, calcium tin alloy grid for high power density and a long service life. The battery has a low self-discharge and is maintenance-free, leakproof and usable in any position. The battery comes with a 6-month warranty.
Please note:
Delivery will take 1-2 days extra to any area outside of GautengAn additional charge of R295 shipping applies owing to the weight/dimensions of the itemCollection from our Johannesburg office will be at no additional charge

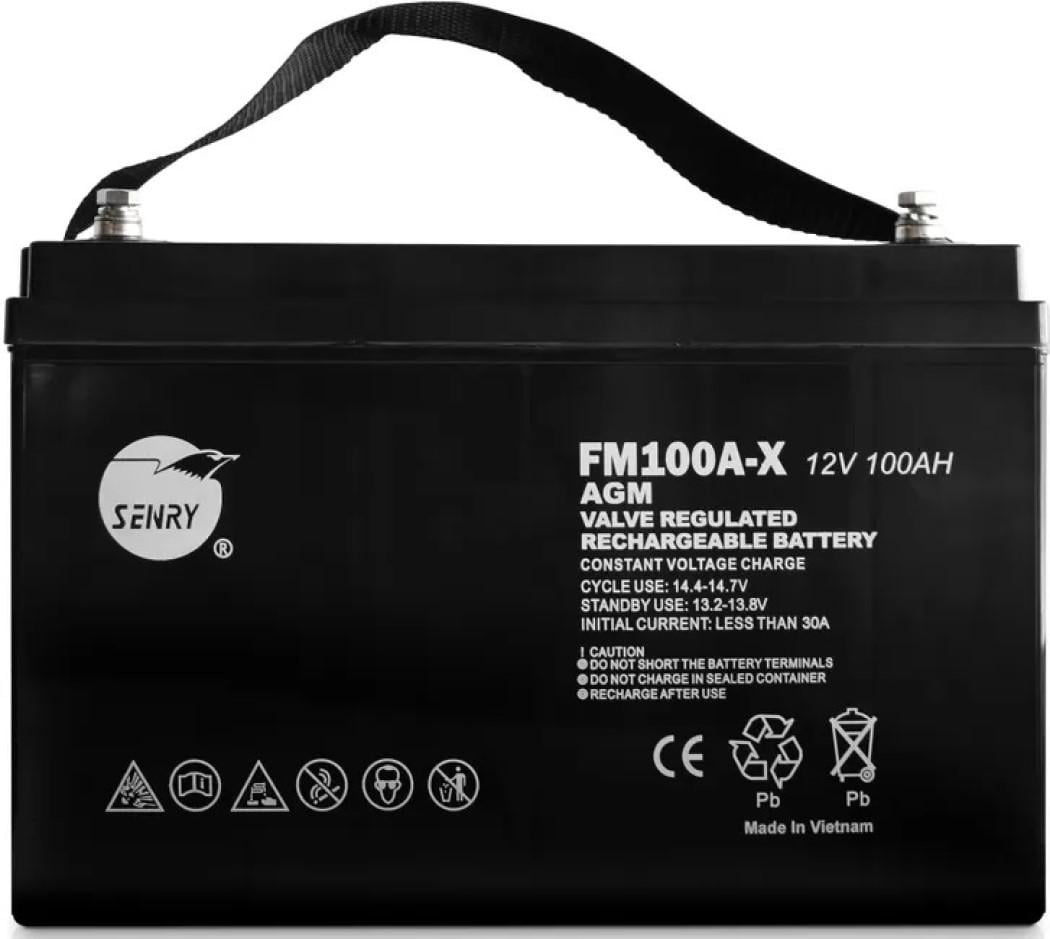

RCT SENRY 6FM100A-X FULLY-SEAL LEAD ACID - FM100A-X
Description
AGM Technology for a maintenance-free, leak-proof battery that can be mounted in any orientation
General Features
Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding
Not restricted for air transport complies with IATA/ICAO Special Provision A67
UL-recognized component
Can be mounted in any orientation
Computer-designed lead, calcium tin alloy grid for high power density
Long service life, float or cyclic applications
Maintenance-free operation
Low self-discharge
The rechargeable batteries are lead-lead dioxide systems
The dilute sulfuric acid electrolyte is absorbed by separators and plates and thus immobilized
Should the battery be accidentally overcharged producing hydrogen and oxygen
Special one-way valves allow the gases to escape thus avoiding excessive pressure build-up
Otherwise, the battery is completely sealed and is, therefore, maintenance-free, leakproof and usable in any position
SPECIFICATIONS:
Product Code : RCT BAT FM100A-X
Nominal Voltage : 12V
Number of cell : 6
Design Life : 10 years
Nominal Capacity 77F(25C)
10 hour rate (10.0A, 10.8V) : 100Ah
5 hour rate (17.5A, 10.5V) : 87.5Ah
1 hour rate (66.2A, 9.6V) : 66.2Ah
Internal Resistance
Fully Charged battery 77F(25C) : =5.7 mOhms
Self-Discharge
Self-Discharge : 3% of capacity declined per month at 20C(average)
Operating Temperature Range
Discharge : -20~60C
Charge : -10~60C
Storage : -20~60C
Max. Discharge Current 77F(25C) : 900A(5s)
Short Circuit Current : 2100A
Charge Methods: Constant Voltage Charge 77F(25C)
Cycle use : 2.40-2.45VPC
Maximum charging current : 30.0A
Temperature compensation: -30mV/C
Standby use: 2.20-2.30VPC
Temperature compensation: -20mV/C
6 MONTH WARRANTY
What's in thebox
1 x Battery
