Description

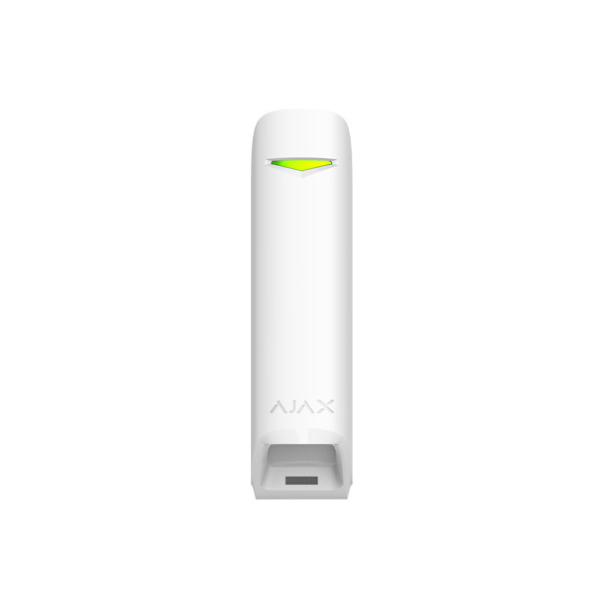

The Ajax Wireless Motionprotect Curtain White is a narrow beam motion detector that protects windows, doors, and valuables. It detects motion with a range of up to 15 meters and transmits alarms at a distance of up to 1,700 meters away from the hub. The system is reliable and has a long battery life.
The Ajax MotionProtect Curtain White is a curtain type wireless motion detector with a narrow horizontal detection angle designed for indoor perimeter control of windows, doorways, passages, other entrances or exits and valued goods i.e expensive artworks, sculptures etc.
The Ajax MotionProtect Curtain allows you to secure the perimeter of your house whilst freely moving around indoors and if set-up correctly can ignore pets, even if you own a Saint Bernard.
Please note: MotionProtect Curtain integrates into Ajax systems, connecting to the hub via the protected Jeweller protocol.
The Ajax MotionProtect Curtain is compatible with all Ajax hubs and Ajax ReX.
Product Code: 13268.36.WH1
FEATURES OF THE AJAX MOTIONPROTECT CURTAIN:
Wireless Indoor Motion Detector
Built-in battery (lasts up to 3 years)
Detects motion with a range of up to 15 meters
Wireless coverage may reach up 1,700 m line-of-sight.
Detector will continue to operate even if the temperature drops to -10C.
Detector is set up via the Ajax app for iOS or Android
System notifications delivered via push notifications, SMS and calls (if activated).
Quick and Easy installation
Ajax can be connected to the central monitoring station of a security company.
INSTALLATION AND SET-UP
The Ajax MotionProtect Curtain comes ready to operate straight out the box.
The battery is pre-installed, so there is no need to disassemble the detector. The Ajax MotionProtect Curtain connects to the security system via the Ajax app, simply scan the QR code, add the detector to the room, and proceed to installation.
SPECIFICATIONS OF THE AJAX MOTIONPROTECT CURTAIN:
Compatible
Operates with all Ajax hubs and Ajax ReX
Classification
Radio-interlinked photoelectric security detector
Type of detector
Wireless
Motion detection distance
Adjustable (from 6 m to 15 m)
Installation
Indoors only
Sensing element
Two PIR sensors
False alarm reduction
Available, Correlation Signal Processing
Alarm signal delivery time
0.15 seconds
Detection angles
Horizontally: 6 & Vertically: 90
Time for motion detection
From 0.3 to 2 m/s
Sensitivity
Adjustable, 3 levels
Recommended installation height
2.4 meters
Power supply
CR123A, 3V
Battery life
Up to 3 years
Communication range with detectors
Up to 1,700 m in an open space
Two-way communication between devices
Yes
Operating frequencies
868.0 - 868.6 MHz
Self-adjusting RF output power
Up to 20 mW
Block encryption based on AES algorithm
Yes
Detector polling period
12300 s
Frequency hopping
Yes
Temperature sensor
Available
Operating temperature range
From 10 to +40
Operating humidity
Up to 95%
Fraud protection
Yes
Jamming notification
Yes
Tamper-resistant
Yes
Remote configuration and testing
Yes
Protection class
IP54
Product Dimensions
134 mm 44 mm 34 mm
Product Weight
118g
Packaging Dimensions
153 mm x 67 mm x 63 mm
Mass of unit packed
200g
Warranty
24 months limited Manufacturers warranty. The warranty does not cover batteries.
WHATS IN THE BOX:
1 x Ajax MotionProtect Curtain White
