Edge-core 10 Port Gb Websmart Poe Switch

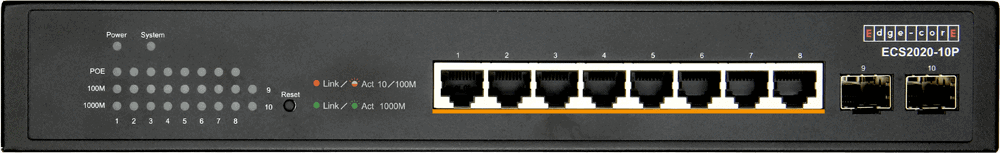

The Edgecore ECS2020-10P is a 10-port websmart PoE switch that supports IPv4 and IPv6 management, and has a default 190 watt PoE power supply.

FEATURES The ECS2020 Series is Edgecore's latest generation cost-effective web-smart switch solution. The ECS2020 is designed for SMB and enterprise markets and provides a complete solution from 10/28-port , including both non-PoE and PoE options.

The switches comply with the IEEE 802.3az Energy Efficient Ethernet standard. Support IPv4 & IPv6 management and features to ensure your network upgrade from IPv4 to IPv6. The ECS2020 Series offers complete PoE solutions from 70 W to 190 W.. All series could mount in a rack. The ECS2020-10P is a fan-less design POE switch, it supports up to 4 ports at 15.4 W, or 2 ports at 30 W to meet the increasing power demands of users.The ECS2020- 28P delivers a default 190 W of PoE power to support future IP cameras, IP telephones, or access points.

PRODUCT SPECIFICATIONS Brand Edge-Core Item model number EC-ECS2020-10P Product Type Websmart PoE Switch Switching Capacity 20 Gbps Forwarding Rate 14.9 Mpps Flash Memory 16MB DRAM 128MB MAC Address Table Size 8K Max System Power Consumption (W) N/A Operating Temperature 0C to 50C
