Eurodesk Sx3242fx Pro Mixer

Brand: Behringer
Specifications
- Total # Of Inputs 32
- Mic/Line Inputs 24 - XLR Microphone
- 32 - 1/4" TRS Phone Line
- Stereo Line Inputs 4 - 1/4" TRS Stereo Line
- In-Line Inputs/Returns No
- AUX Sends 2 AUX Sends - 1/4" TRS Phone
- 2 FX Sends - 1/4" TRS Phone
- AUX Returns 2 AUX Returns - L/R 1/4" TRS Phone
- Inserts 24 - 1/4" TRS Phone (mono inputs)
- 2 - 1/4" TRS Phone (main output)
- BUS (Group) Outputs 4 - 1/4" TRS Phone
- 2 Trk Master I/O Main Out - Stereo L/R 3-pin XLR
- Main Out - Stereo L/R 1/4" TRS Phone
- Mono Out - 1/4" Phone
- Phono/CTRL Room - Stereo Single 1/4" TRS Phone
- ALT I/O Foot Switch - 1/4" Phone
- Monitor Outputs Phono/CTRL Room - Stereo Single 1/4" TRS Phone
- EQ Section Mono Channels
- Low - 80Hz +/- 15dB
- Mid - 100Hz to 8kHz +/- 15dB
- High - 12kHz +/- 15dB
- Low Cut - 80Hz, 18dB/oct.
- Stereo Channels
- Low - 80Hz +/- 15dB
- Low Mid - 400Hz +/- 15dB
- High Mid - 3kHz +/- 15dB
- High - 12kHz +/- 15dB
- Solo/Mute SOLO / PFL MUTE
- Channel Level Control Fader
- Trim/Gain Control Rotary Pots
- Phantom Power +48V Phantom Power
- Metering Peak LEDs
- Frequency Response < 10Hz - 70kHz +0dB / -1dB
- < 10Hz - 130kHz +0dB / -3dB
- Dynamic Range Not Specified By Manufacturer
- Signal-to-Noise Ratio 110dB / 112dB A-weighted
- Total Harmonic Distortion (THD) 0.004% / 0.003% A-weighted
- Power Supply Power Consumption 50W
- Fuse (100 - 240V~, 50/60Hz) T 2.0 A H 250V
- Standard IEC Receptacle
- Dimensions (WxHxD) 3.9 x 35.3 x 16.1" (100 x 896 x 410mm)
- Weight 25.4 lbs (11.5kg)

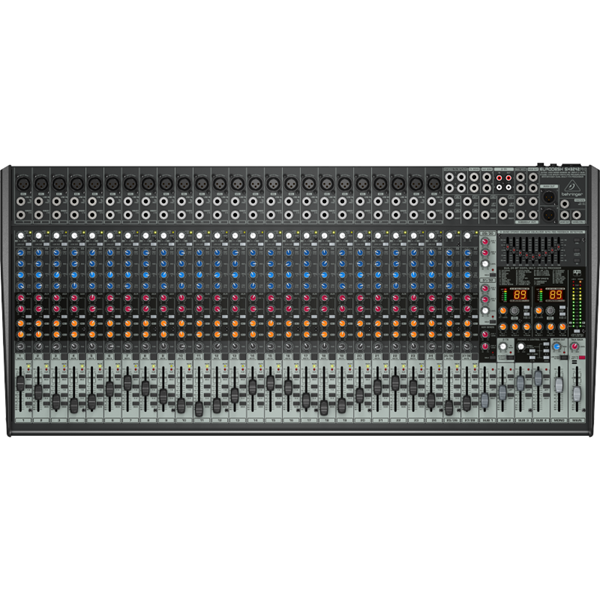

The Behringer Eurodesk SX3242FX-PRO 32-Channel Audio Console is an affordable audio mixer that delivers a feature set suitable for recording and live sound applications.

The desk features a total of 32 input channels, with 24 mono and 4 stereo input channels. All mono inputs include XLR microphone inputs and inserts for routing signal to external processors.
- The mixer's recording features include a built-in 24-bit VIRTUALIZER effects processor, 4-band EQ section and 4-bus outputs for routing to monitors, multi-track recorders, etc.

A stereo 9-band EQ with FBQ Feedback Detection, global mute switching and Mono output for sub-woofers are among some of the key sound reinforcement features.
- The studio-grade acoustically "Invisible" IMP Mic Preamps and ULN (Ultra Low-Noise) circuitry deliver pristine audio fidelity and minimize noise.

With 32 channels, the full-featured Eurodesk SX3242FX-PRO is ideal for project studio recording and sound reinforcement in small clubs, houses-of-worship and more.
- 32 Total Input Channels
- The desk features a total of 32 input channels, with 24 mono and 4 stereo input channels.
- Built-in 24-bit Effects
- A built-in 24-bit VIRTUALIZER effects processor provides plenty of reverb, delay and chorus effects.
- 4-Bus Output Routing
- 4-bus outputs provide routing to recorders, monitors, etc.
- 9-Band Graphic EQ with FBQ
- The stereo 9-band graphic EQ features Behringer's FBQ system for eliminating feedback.
- Global Mute Switching
- All mutes may be activated with a single switch.

This is ideal when playing background music in live sound reinforcement applications.
