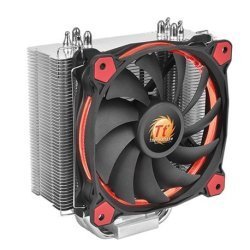

Thermaltake Riing Silent 12 Red Cl-p022-al12re-a With 120mm Pwm Fan

The latest Riing Silent 12 CPU cooler is with PWM function, designed for use with high-end RAM and motherboards.A 120mm fan fitted to enhance the airflow produces impressive cooling performance with an optimized 11 fan-blade design. Hydraulic bearings for silent operation guarantee ultra-low noise. The patented LED ring maintains color and brightness uniformity, and the lighting effect is visible from all sides and angles.Eleven Fan Blade DesignEleven fan blades are engineered to create large volume of air passing through the heatsink at any angle and provide the best balance between silent and performance.Riing Silent 12 is with PWM function which allows the motherboard to run the fan precisely at its necessary speed.

This guarantees the required cooling and minimizes the noise level. Wind Blocker FrameTo achieve maximum cooling performance in all applications, the wind blocker frame is designed to direct airflow towards the middle section of the blade, thereby creating a compression effect and blocking any air from escaping.

This special design reduces the blades noise and vibration, creating a perfect balance between power and sound.Hydraulic Bearing DesignThe hydraulic bearing self-lubricates with a high quality, friction-reducing substance that reduces operating noise and improves efficiency. The seal cap prevents leakage of the lubricant, and improves the lifespan of the unit.Optimized Silent OperationFor acoustic test, Riing Silent 12 was tested in a semi-anechoic chamber which includes anti-vibration, sound-proof, and sound-absorbing effect.With a LNC (Low-Noise Cable), Riing Silent 12 can reduce the noise level by 29% from 18.8 dBA to 13.4 dBA, and 50% of fan speed. Thermal Image Demonstrates for Heat DistributionRiing Silent 12 delivers outstanding cooling performance, keeping the temperature between 30 and 32.5 (ambient temperature is 20) @Intel Core i7-4770K 3.8GHz at full load.Superior Heat DissipationOptimized 0.4mm thickness aluminum fins with 2.2mm air gap, and 4 x *6mm solid copper heat-pipes are designed for rapid heat dissipation, allowing maximum heat conductivity.

The towers side flow design delivers the best cooling performance. In addition, the heat-pipes are in continuous direct contact with the CPU to ensure fast and efficient heat dissipation.Anti-Vibration Mounting Systems with Non-Interference CoolingAnti-vibration rubber pads strengthen stability during operation and provide hassle-free usage for 80% protection coverage, including all four corners.

And Riing Silent 12 solves the co-existing problem of high performance RAM and CPU coolers, achieving the best RAM clearance. Specifications:  Heatsink Material: Aluminum Fins Copper HeatpipesHeatpipe: 6mm x 4 pcsDimensions: 159 x 140 x 74 mm (H x W x L)Fan Dimensions: 120 x 120 x 25 mm(L xW x H)Fan Speed: 500~1400 RPM, 300~700 RPM (with LNC )Rated Voltage: 12VStart Voltage: 9.0 VRated Current: 0.21 APower Input: 2.52 WAir Flow: 53 CFMAir Pressure: 1.23 mm-H2OAcoustical Noise: 18 1 dBA, 13 1 dBA (with LNC)Life time/Fan Life time: 40,000 hoursPin Connector: 4 pin PWM + LNC (Low-Noise Cable) 50% fan speed and 29% noise can be reducedCooling Power: 150 WWeight: 825 g CompatibilityIntel LGA 2011-3/2011/1366/1156/1155/1151/1150/775AMD FM2/FM1/AM3+/AM3/AM2+/AM2 Product Link
