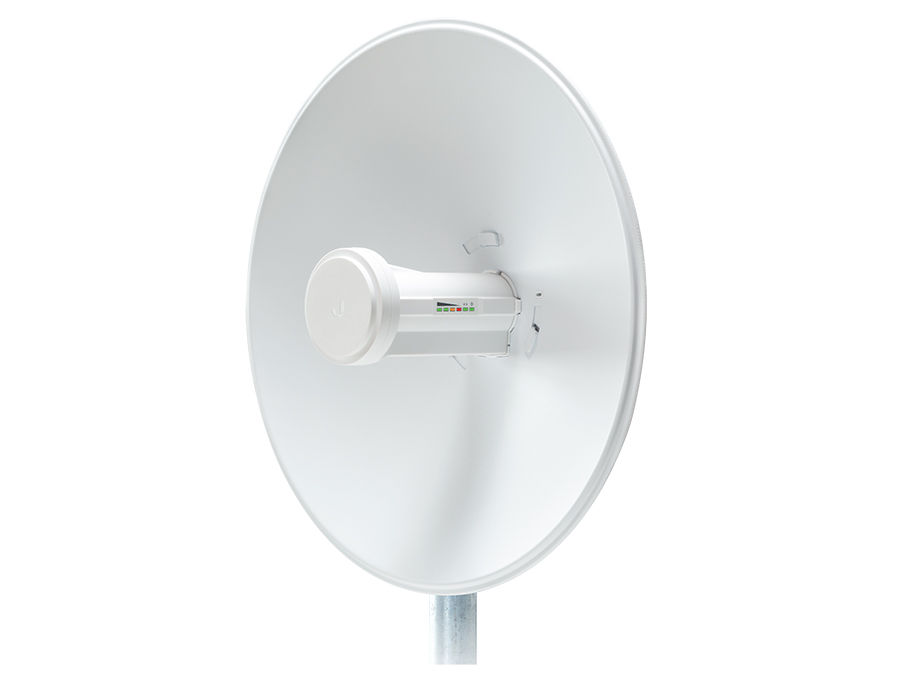

ubiquiti 5ghz powerbeam 22dbi 300mm dish pbe-m5-300

The Ubiquiti 5GHZ Airmax Powerbeam 22DBI 300MM Dish is a high-gain outdoor antenna designed for use with 5170-5875 MHz frequencies. It is powered by a passive PoE connection and has a maximum power consumption of 6W. The antenna has a gain of 22dBi and can be adjusted to correspond to custom RSSI levels.

The antenna is weather-proof and has a mounting pole kit included.

- Processor Specs: Atheros MIPS 74Kc, 560 MHz- Memory: 64 MB DDR2, 8 MB Flash- Networking Interface: (1) 10/100 Ethernet Port- Power Supply: 24V, 0.5A PoE- Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)- Max. Power Consumption: 6W- Gain: 22 dBi- Operating Frequency: 5170 - 5875 MHz- Wind Loading: 200.2 N @ 200 km/h - Wind Survivability: 200 km/h- LEDs: (1) Power, (1) LAN, (4) WLAN- Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels- Channel Sizes: 5/8/10/20/30/40 MHz- Polarisation: Dual Linear- Enclosure: Outdoor UV Stabilised Plastic- Mounting: Pole-Mount Kit Included- ESD/EMP Protection Air: 24 kV, Contact: 24 kV- Operating Temperature: -40 to 70 C - Operating Humidity: 5 to 95% Non-Condensing- Dimensions: 325 x 325 x 256 mm- Weight: 1.203 kg
