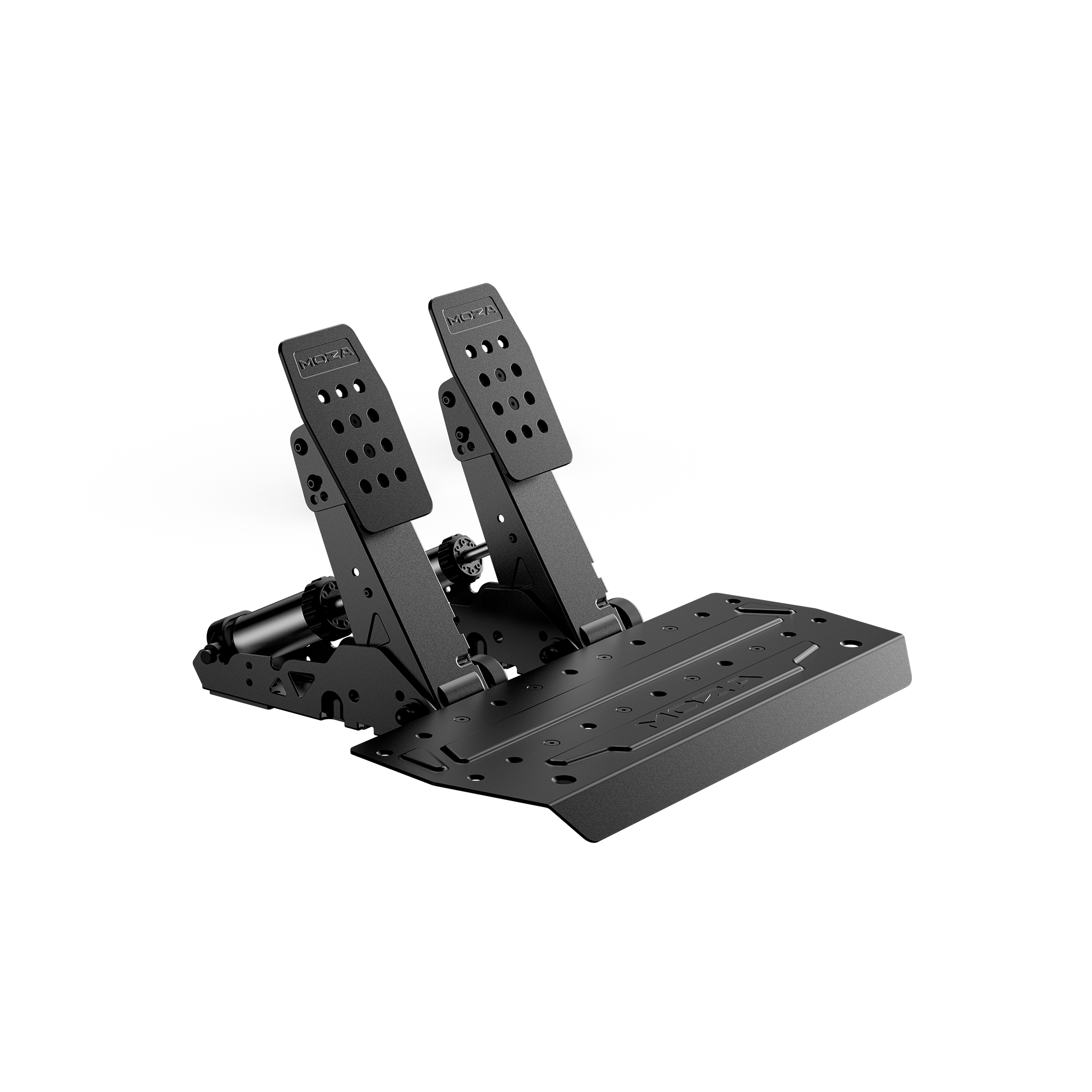

Moza Racing Pedals

Features

Description

SRP2 Load Cell Pedals 25 Brake Feel Configurations Aluminum Construction 100KG High-precision Load Cell Sensor 15-bit High-precision Angle Sensor Wide-range Adjustable Design Smooth and Quiet Operation Tool-free Adjustment Open Ecosystem Brake Feel Adjustment with Elastomer and Spring The standard setup features an elastomer structure with multiple spring hardness options (60R, 70R, and 80P), offering 25 distinct brake feel configurations.

The optional Performance Kit provides additional elastomers and springs, enabling over 1,000 customizable brake feel settings. Aerospace-gradeAluminum Construction withCNC Precision Machining Pedal components are made from aerospace-grade aluminum, precision-machined using CNC technology, and anodized for enhanced durability.

The base and pedal linkages are constructed from high-strength steel to withstand high torque and pressure. 100KG High-precisionLoad Cell Featuring a 100Kg load cell, this sensor provides highly accurate and responsive brake input, making it ideal for users seeking precise control. 15-bit High-precisionAngle Sensor Utilizing patented sensor fusion technology, this system combines a 15-bit angle sensor with the load cell, ensuring precise brake inputs while leveraging muscle memory for accurate control over braking force.

Adjustable Pedal Angle The pedals feature a full 25 of angle adjustment allowing for better customization to suit different user preferences and ergonomic needs. Adjustable Pedal Position and Height The spacing between the brake, throttle, and clutch pedals can be easily adjusted, with the option to fine-tune the distance (15mm left/right) by adjusting the pedal installation position.

Additionally, the pedal height is individually adjustable with a range of 36mm. Desktop-optimized Design The angle of the pedal arm is tailored for desktop racing setups, aligning with natural seating and foot positioning. Optional Wall Support Bracket An optional wall support bracket is available to further stabilize the pedals, preventing sliding and enhancing comfort during use.

Adjustable Throttle and Clutch Feel Both the throttle and clutch pedals feature a spring-loaded, enclosed design with a smooth guiding rod, allowing for quick manual adjustment of preload in two levels, ensuring a smooth and responsive feel. Extremely Smooth andQuiet Operation The enclosed sleeve motion structure and highly polished steel shafts ensure exceptionally smooth and quiet pedal movements.

Soft cushioning at the limit points further reduces noise, providing a more immersive experience. Tool-free Adjustment The pedal system is designed for quick, tool-free force adjustments, allowing you to modify brake feel and force levels with just your hands. Full Compatibility Directly connect to PC and compatible with almost all branded bases, fully supporting MOZA's wheelbase lineup.

Professional Software Support With the Pit House software, you can monitor pedal performance, adjust pedal travel and signal output curves, and view real-time data, allowing the hardware to perform at its full potential. Optional Performance Kit The optional performance kit includes 10 molded springs, rubber springs, and metal blocks, which can be combined with the standard setup to provide over 1,000 possible brake feel configurations.

This kit can replicate the stiff brake feedback found in high-performance racing cars like F1 and LMP1, allowing for ultra-fast brake response times. Extreme Durability Both the throttle and clutch pedals feature a spring-loaded, enclosed design with a smooth guiding rod, allowing for quick manual adjustment of preload in two levels, ensuring a smooth and responsive feel.

Specs Pedal Material High-strength Steel Base Material High-strength Steel Load Cell Range 0-100 kg Brake Sensing Method Hybrid Load Cell and Angle Sensor Angle Sensor Resolution 15-bit (32,768 PPR) Brake Feel Adjustability Supported by swapping the included 2 elastomer sets or using the optional Kit Throttle Adjustability 2-step preload adjustment Clutch Adjustability 2-step preload adjustment Pedal Angle
