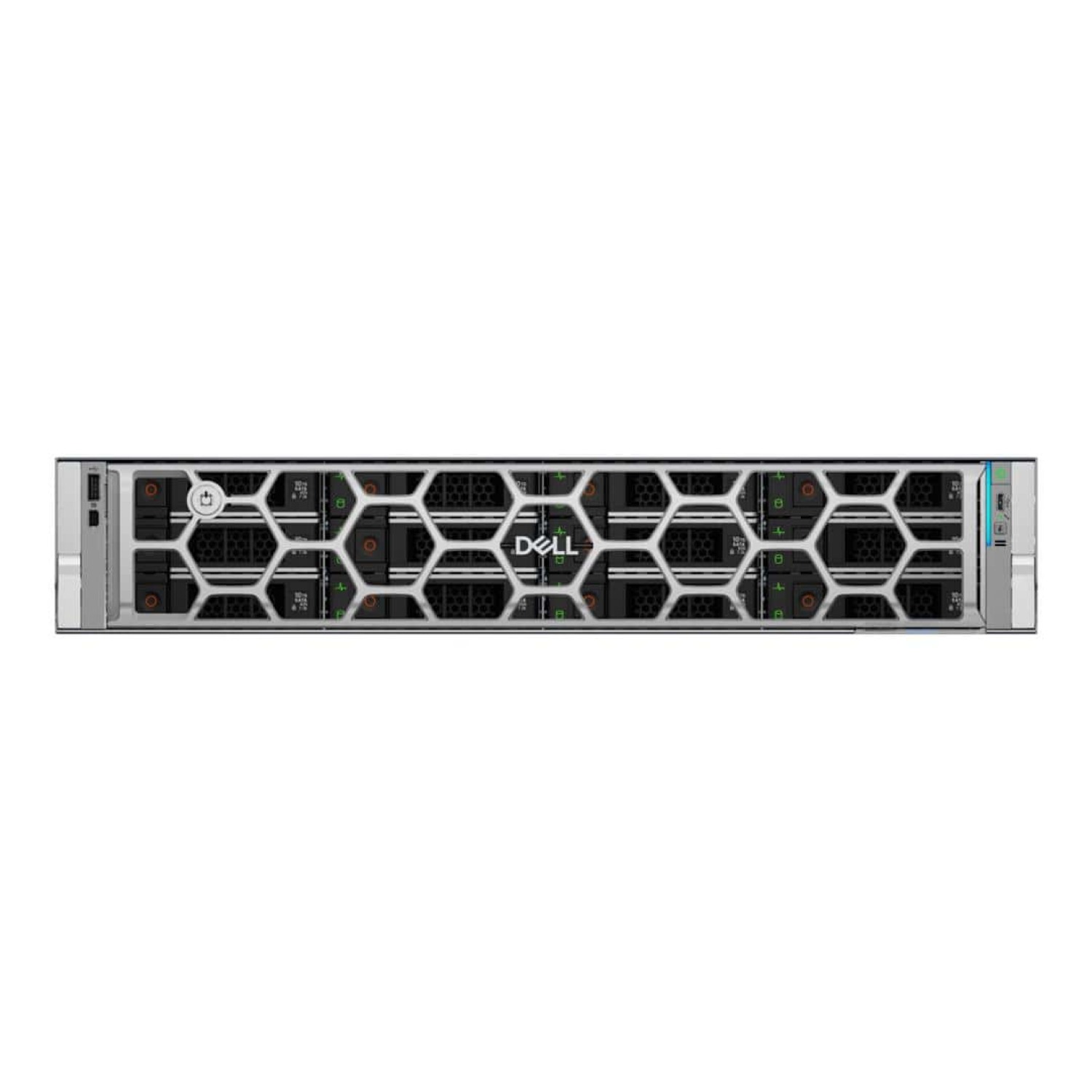

Dell Poweredge R570 2U Rack Server - Intel Xeon 6511P 1.92TB SSD 32GB RAM 2X 1000W

Features

Description

Dell PowerEdge R570 2U Rack Server - Intel Xeon 6511P 1.92TB SSD 32GB RAM 2x 1000W Important Notice: This product has multiple configuration options. Product specifications may vary. Please chat with one of our friendly sales consultants before you purchase. While we do our best to ensure accuracy, sometimes there might be slight differences between our listings and the actual product specs.

Thanks for your consideration. The Dell PowerEdge R570 is a scalable and power-efficient 2U, single-socket rack server designed for virtualisation, database, analytics, file services and general-purpose data-centre workloads. This configured system combines a 16-core Intel Xeon 6 Performance 6511P processor with 32 GB registered ECC DDR5 memory, dual 960 GB enterprise SATA solid-state drives, a PERC H965i hardware RAID controller and dual-port 10GbE networking.

Enterprise management and security features include iDRAC10 Enterprise, Dell Connectivity Client, Secure Enterprise Key Manager 3.0 and Secured Component Verification. Dual 1100 W Titanium hot-plug power supplies provide 1+1 redundancy, while the included 2U combination rails simplify rack installation.

Key Features 2U, single-socket Dell PowerEdge rack server Intel Xeon 6 Performance 6511P processor with 16 cores and 32 threads 2.3 GHz base frequency and up to 4.2 GHz maximum turbo frequency 32 GB 6400 MT/s registered ECC DDR5 memory 2 x 960 GB enterprise SATA read-intensive hot-plug SSDs Dell PERC H965i full-height hardware RAID controller Intel Ethernet E610-XAT2 dual-port 10GbE BASE-T OCP 3.0 adapter iDRAC10 Enterprise for secure remote server administration Dual 1100 W Titanium hot-plug power supplies with 1+1 redundancy 2U combination drop-in/stab-in rack rails included 3-year ProSupport with Next Business Day Onsite Service Built for Scalable Enterprise Workloads PowerEdge R570 provides a balanced platform for organisations consolidating infrastructure or deploying modern business applications.

Its Intel Xeon 6 architecture, ECC DDR5 memory, enterprise storage controller and Gen5 PCIe expansion capability support dependable performance today while leaving room for future memory, storage, networking and accelerator upgrades. Enterprise-Class Storage and RAID The configured 3.5-inch chassis supports up to 12 SAS or SATA drives and is supplied with two 960 GB SATA read-intensive SSDs in 3.5-inch hybrid carriers.

The PERC H965i hardware controller provides enterprise RAID functionality; this specific configuration is supplied with RAID left unconfigured so that the required storage policy can be applied during deployment. Secure Remote Management iDRAC10 Enterprise enables secure out-of-band monitoring, configuration and lifecycle management.

Dell Connectivity Client and the Dell Connectivity Module support proactive service connectivity, while Secure Enterprise Key Manager 3.0 and Secured Component Verification strengthen platform security and supply-chain assurance. Specifications and Images may vary depending upon region / model. Technical Specifications Specification Details Product Dell PowerEdge R570 Product Type Rack Server Form Factor 2U Processor Family Intel Xeon 6 Performance Processor Model 6511P Processor Frequency 2.3 GHz / Up to 4.2 GHz (72 MB Cache, 16 Cores, 32 Threads) Processors Installed 1 Maximum Processor Support 1 Internal Memory 32 GB 6400 MHz (1 x 32 GB, Dual Rank) Internal Memory Type Registered ECC DDR5 RDIMM Memory Configuration Performance Optimised Memory Slots 16 DIMM slots Max Memory Up to 4 TB RDIMM with supported Intel Xeon 6 P-core processor; up to 1 TB with supported E-core processor Total Storage Capacity 1.92 TB Installed Storage 2 x 960 GB SATA 6 Gbps Read-Intensive 512e 2.5-inch Hot-Plug SSDs in 3.5-inch Hybrid Carriers, 1 DWPD Storage Media SSD Drive Bays 3.5-inch chassis supporting up to 12 SAS4 / SATA drives Storage Controller Dell PERC H965i Adapter, Full Height RAID Configuration Unconfigured RAID Boot Mode UEFI BIOS Boot Mode with GPT Partition BIOS Profile Power Saving BIOS Settings Expansion Slots Riser Configuration 10: rear
