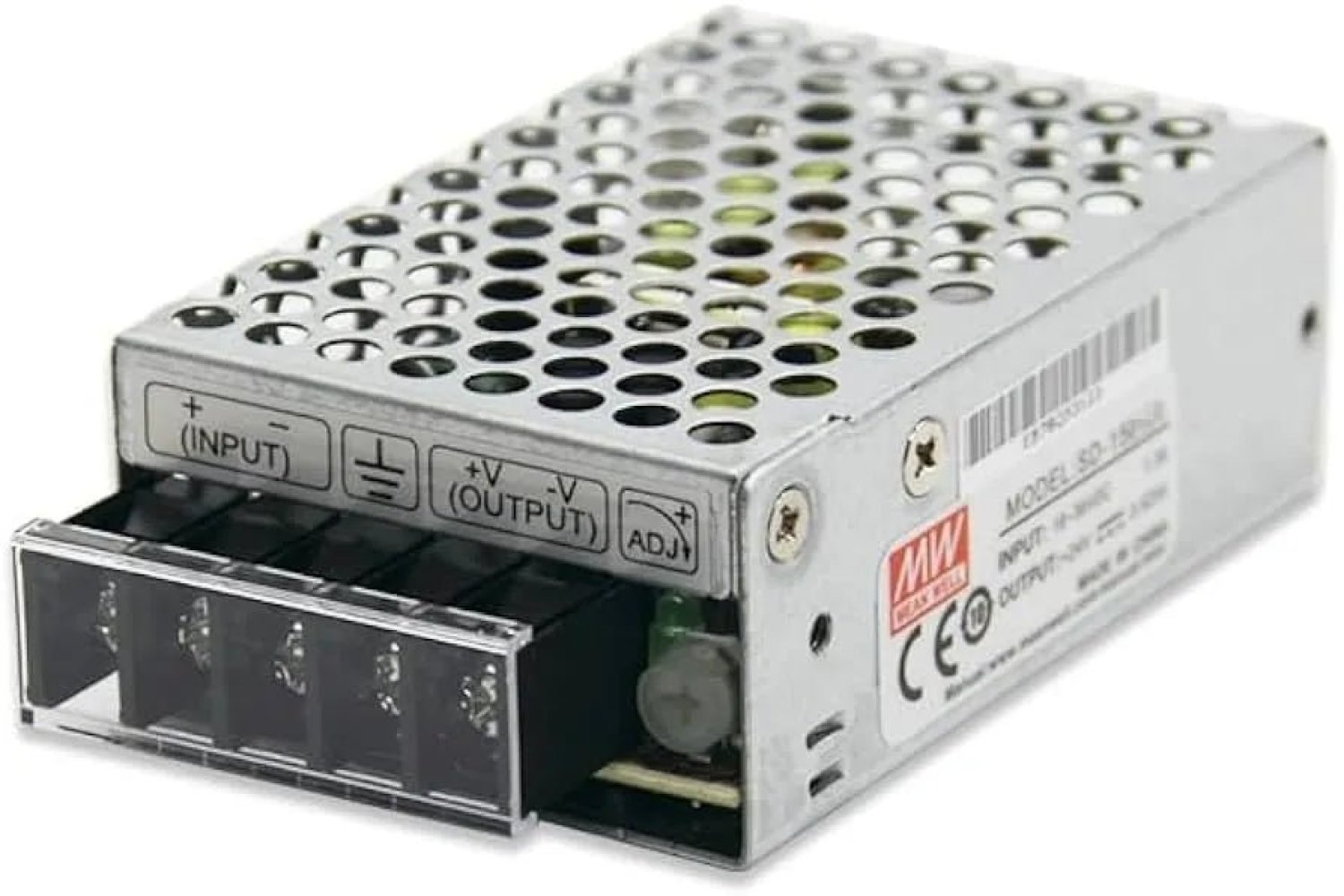

SD-15C-24 15W Dc-dc Converter

Reliable Power Conversion for Demanding Applications The Mean Well SD-15C-24 is a high-performance 15W single-output enclosed DC-DC converter engineered for reliability and efficiency. It expertly converts a wide DC input range of 36V to 72V into a stable, regulated 24VDC output, making it an ideal power solution for industrial automation, telecommunications, and railway applications.

With its robust design, it ensures consistent power delivery for sensitive electronics in challenging environments. Compliance with EN50155 and EN45545-2 railway standards underscores its suitability for transportation and other rugged systems. Comprehensive Protection and Features This compact converter is packed with essential protection features to safeguard both the unit and the connected load.

It includes safeguards against short circuits, overload, over-voltage, over-temperature, and input reverse polarity. Key features include 4000VDC I/O isolation, cooling by free air convection, and a built-in constant current limiting circuit. The use of 105C long-life electrolytic capacitors and a 100% full load burn-in test guarantees long-term dependability and a 3-year warranty provides peace of mind.

Technical Specifications Model: SD-15C-24 Output DC Voltage 24V Rated Current 0.625A Rated Power 15W Voltage Tolerance 1.0% Input Voltage Range 36 ~ 72VDC Efficiency (Typ.) 78% Protection Overload 105 ~ 150% rated output power Over Voltage 27.6 ~ 32.4V Environment Working Temperature -10 ~ +60C Safety & EMC I/O Isolation 4000VDC Safety Standards EN50155, EN45545-2 compliant Physical Dimensions (L x W x H) 78 x 51 x 28 mm Weight 0.18 kg
