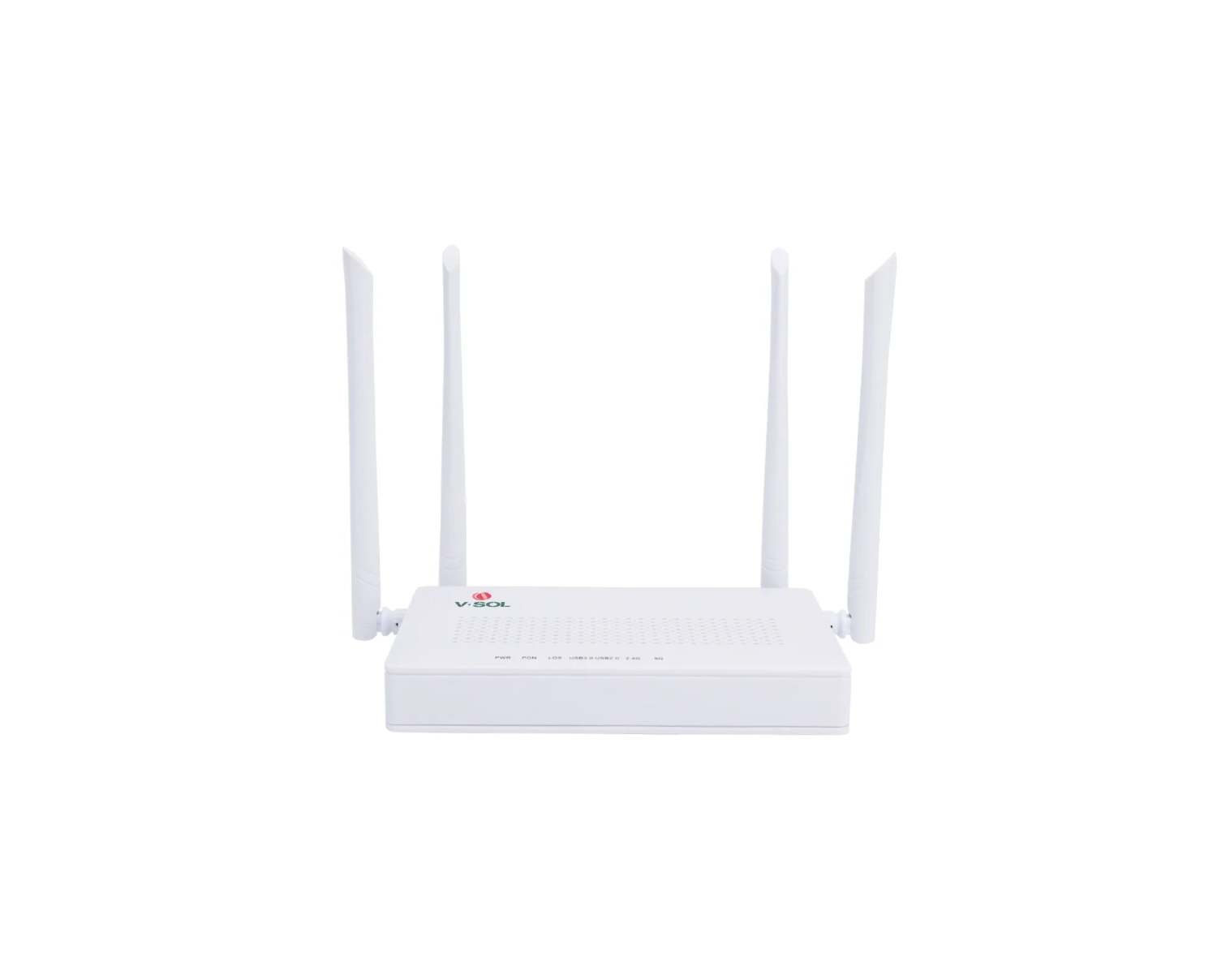

V2804AC-Z AC1200 Dual-band Gigabit Wifi 5 Xpon Ont router

Features

Description

High-Speed, Dual-Mode Fiber Gateway for Ultimate Connectivity Experience superior internet performance with the VSOL V2804AC-Z, a high-performance xPON Optical Network Terminal (ONT) designed for modern fiber-to-the-home (FTTH) applications. This device is engineered to meet the demands of fixed network operators and high-usage homes, supporting both EPON and GPON dual modes for wide compatibility with various OLTs, including those from Huawei, ZTE, and FiberHome.

Powered by a high-performance ZTE XPON and MTK Wi-Fi chipset, it delivers reliable, carrier-grade service for all your triple-play needs. AC1200 Dual-Band Wi-Fi & Gigabit Wired Speeds Unleash the full potential of your fiber connection. The V2804AC-Z features cutting-edge Wi-Fi 5 (802.11ac) technology, offering combined dual-band wireless speeds of up to 1200Mbps.

This ensures smooth 4K streaming, lag-free online gaming, and seamless connectivity for multiple devices simultaneously. Four powerful 5dBi external antennas provide wider, more reliable coverage throughout your space. For wired connections, four Gigabit Ethernet (GE) ports offer ultra-fast, stable links for high-demand devices like PCs, gaming consoles, and IPTV set-top boxes.

Versatile Connectivity with USB 3.0 Enhance your network's functionality with the integrated USB 3.0 port. This high-speed interface allows you to easily connect a USB storage device for network-wide file sharing or a printer for convenient access from any connected device, making it a perfect hub for a home or small office.

Advanced Management and Reliability The V2804AC-Z is designed for high reliability and easy management. It supports OAM/OMCI protocols, allowing for remote configuration and management via a VSOL OLT. With support for IPv4/IPv6 dual-stack, robust security features like firewall and flow control, and QoS guarantees, this ONT ensures a secure, stable, and high-quality connection for all your services.

Technical Specifications Hardware Parameters Dimensions (LWH) 205mm 140mm 37mm Net Weight 0.34 Kg Power Supply DC 12V/1A or 1.5A (External AC-DC Adapter) Power Consumption 10W Interfaces 1x XPON (SC/UPC), 4x GE LAN, 1x USB 3.0 Indicators PWR, PON, LOS, WAN, ETH1~4, 2.4G WiFi, 5G WiFi, WPS, USB PON Interface Standard EPON PX20+ and GPON Class B+ Wavelength TX 1310nm, RX 1490nm TX Optical Power 0 to +4dBm RX Sensitivity -27dBm Wi-Fi Interface Standard IEEE 802.11b/g/n/ac Frequency 2.4GHz & 5GHz Speed Up to 1.167Gbps (AC1200) Antenna 4x 5dBi External Antennas (2T2R MIMO for both bands) Function Data XPON Mode Dual mode (EPON/GPON), compatible with major OLT brands Layer 2 802.1D & 802.1ad bridge, 802.1p CoS, 802.1Q VLAN Layer 3 IPv4/IPv6, DHCP Client/Server, PPPoE, NAT, DMZ, DDNS Security Flow & Storm control, Loop Detection, Firewall (DDOS, ACL/MAC/URL Filtering) Management WEB/TELNET/OAM/OMCI
