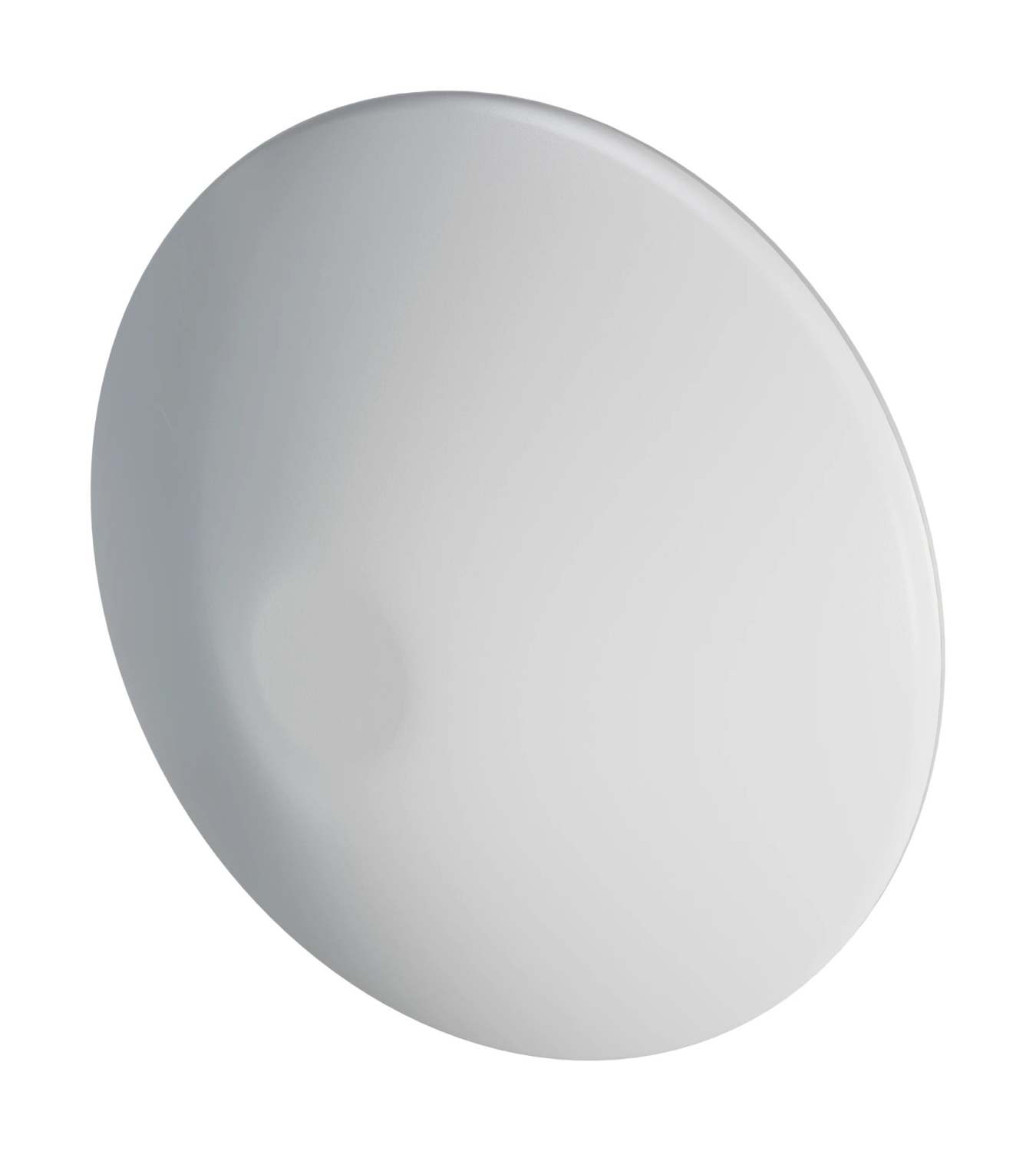

Atl LTE18 CAT18 4X4 Mimo Outdoor Cpe

Features

Description

Unlock Gigabit-Class LTE Speeds, Anywhere Break free from slow internet with the MikroTik ATL LTE18 kit, an advanced outdoor CPE designed to deliver exceptional connectivity in urban and rural locations. This device is engineered for those who need a fast and stable connection where traditional broadband is unavailable or unreliable.

Featuring a phenomenal Category 18 LTE modem, the ATL can achieve theoretical download speeds of up to 1.2 Gbps and upload speeds of 150 Mbps, eliminating bottlenecks for a seamless online experience. Advanced Antenna Technology for Superior Signal One of the standout features of the ATL LTE18 kit is its support for 4x4 MIMO (Multiple-Input, Multiple-Output).

This technology uses multiple antennas to enhance signal quality and speed. The device is equipped with four high-gain mid-band antennas (1.72.7 GHz) and two high-gain low-band antennas (700 MHz1 GHz). This powerful combination ensures you can connect even in remote areas, as it supports the popular 700/800 MHz LTE bands, known for their excellent long-distance wave propagation.

Built for the Harshest Environments The ATL LTE18 kit boasts a unique, futuristic design that is both compact and highly functional. Its shape is specifically engineered to prevent the accumulation of snow and water, which could otherwise freeze and disrupt the signal. This makes it an outstanding choice for reliable, year-round performance in regions with harsh weather, from snowy mountains to coastal areas.

With a tested ambient operating temperature of -40C to 70C, it's built to endure the elements. Powerful, Efficient, and Easy to Install At its core, the ATL LTE18 kit is powered by a modern dual-core ARM CPU, 256 MB of RAM, and runs on the highly versatile RouterOS v7. It features a single Gigabit Ethernet port that supports 802.3af/at PoE-in, allowing a single cable to provide both power and data to the unit, simplifying installation.

This future-proof CPE is the ultimate solution for achieving fast, stable internet access for your home or business, no matter the location. Technical Specifications Product Details Product Code ATLGM&EG18-EA (MT-RBATL-LTE18-KIT) Architecture ARM 64bit CPU 88F3720 Dual-Core 800 MHz Size of RAM 256 MB Storage 16 MB FLASH Operating System RouterOS v7, License Level 3 Mobile Connectivity LTE Category 18 (1.2 Gbps Downlink, 150 Mbps Uplink) 3G Category R8 (42.2 Mbps Downlink, 11.2 Mbps Uplink) MIMO DL 4x4 LTE FDD Bands 1 (2100MHz), 3 (1800MHz), 5 (850MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz), 28 (700MHz) LTE TDD Bands 38 (2600MHz), 40 (2300MHz), 41 (2500MHz) 3G Bands 1 (2100MHz), 3 (1800MHz), 5 (850MHz), 8 (900MHz) SIM Slot 1 Micro SIM Ethernet & Power 10/100/1000 Ethernet Ports 1 Number of DC Inputs 1 (PoE-IN) PoE In 802.3af/at PoE In Input Voltage 12-57 V Max Power Consumption 8 W Physical & Environmental Dimensions 315 x 315 x 170 mm Tested Ambient Temperature -40C to +70C IP Rating IP54 Included Parts 24V 0.8A power adapter, Gigabit PoE injector, 2x Hose clamps
