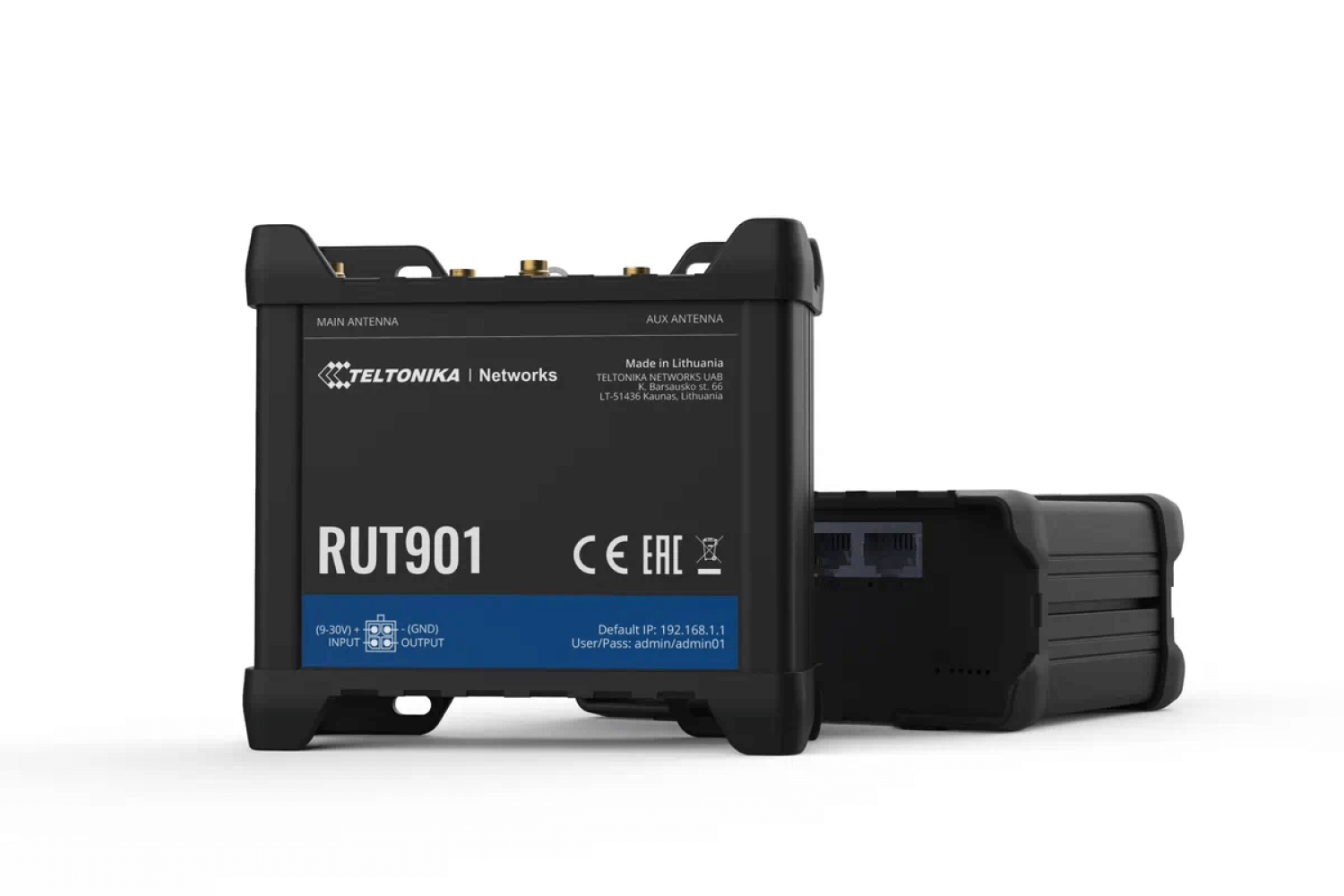

RUT901 Industrial 4G LTE Dual-sim Router

Features

Description

Unbreakable Connectivity for Professional Applications The Teltonika RUT901 is a high-performance industrial cellular router engineered for mission-critical M2M and IoT applications. Building on the robust legacy of the RUT950 and RUT951, the RUT901 delivers powerful 4G LTE Cat 4 connectivity, ensuring reliable, high-speed data transfer with speeds up to 150 Mbps.

Its core strength lies in its Dual-SIM functionality with automatic failover, which guarantees seamless network continuity by instantly switching to a backup SIM if the primary connection fails due to weak signal, data limits, or network issues. This eliminates downtime and provides a stable connection you can depend on.

Built for the Harshest Environments Designed for professional industrial use, the RUT901 is housed in a durable aluminum casing and is built to withstand extreme conditions. It operates flawlessly in a wide temperature range, from -40C to 75C, making it the perfect solution for deployment in challenging industrial settings.

The router also features a wide input voltage range of 9-30 VDC with reverse polarity and surge protection, adding another layer of resilience for industrial power systems. Versatile and Secure Networking The RUT901 is more than just a cellular router; it's a complete networking solution. It comes equipped with four 10/100 Mbps Ethernet ports (configurable as 1 WAN and 3 LAN), 802.11b/g/n Wi-Fi with Access Point and Station modes, and digital I/O for versatile integration.

Security is paramount, and the RUT901 delivers with a pre-configured firewall and support for numerous VPN services, including OpenVPN, IPsec, PPTP, L2TP, and DMVPN. Compatibility with the Teltonika Remote Management System (RMS) allows for easy monitoring and management of your entire fleet of routers from a single platform.

Mobile Mobile Module 4G (LTE) Cat 4 up to 150 Mbps DL, 50 Mbps UL; 3G Up to 42 Mbps; 2G Up to 236.8 kbps SIM Switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection Status Signal strength (RSSI), SINR, RSRP, RSRQ, Bytes sent/received, connected band, IMSI, ICCID Wireless Wireless Mode IEEE 802.11b/g/n, Access Point (AP), Station (STA) Wi-Fi Security WPA2-Enterprise, WPA3-SAE, WPA-PSK, WPA2-PSK, OWE; AES-CCMP, TKIP, Auto Cipher modes Wi-Fi Users Up to 100 simultaneous connections Ethernet WAN 1 x WAN port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX LAN 3 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX Hardware & System CPU Mediatek, 580 MHz, MIPS 24KEc RAM 128 MB, DDR2 FLASH Storage 16 MB, SPI Flash Operating System RutOS (OpenWrt based Linux OS) Input Voltage Range 9 30 VDC, reverse polarity protection; surge protection Power Consumption < 7 W Max Connectors 1 x 4-pin DC, 4 x Ethernet, 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi Inputs/Outputs 1 x Digital Input, 1 x Digital Output on 4-pin power connector Physical & Environmental Casing Material Aluminum housing with plastic panels Dimensions (W x H x D) 110 x 50 x 100 mm Operating Temperature -40 C to 75 C Operating Humidity 10% to 90% non-condensing Ingress Protection Rating IP30
