GPEN21 Poe Injector & Repeater With Sfp

Features

Description

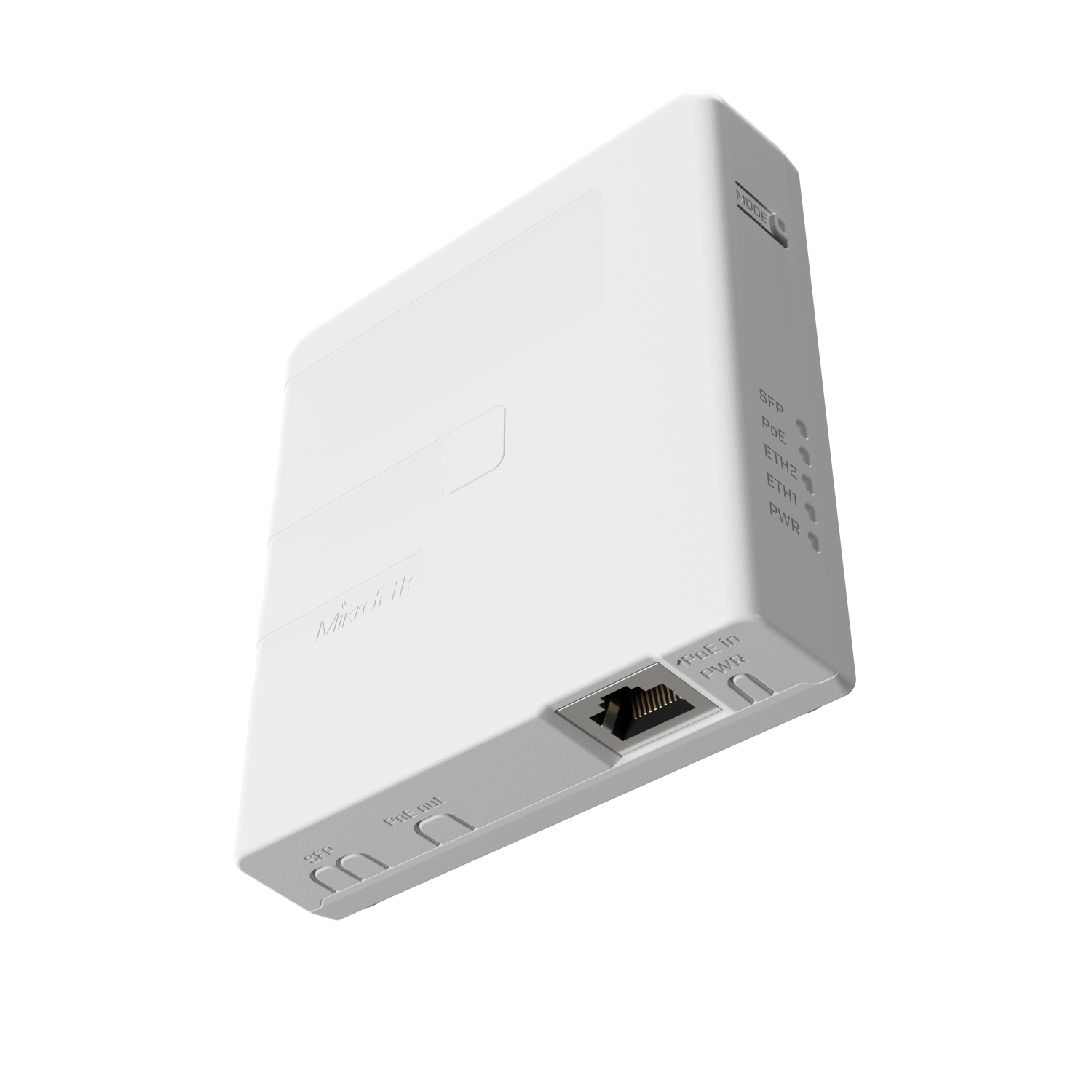

Revolutionize Your Network with the Smart PoE Injector & Repeater Introducing the MikroTik GPEN21, a sophisticated and smart power injector that doubles as an advanced, software-controlled repeater. Designed as a superior, cost-effective alternative to traditional GPON installations, the GPEN21 is a pivotal component of the Gigabit Passive Ethernet Network (GPEN) concept.

It's engineered not just to power your uplink devices via Power over Ethernet (PoE), but also to enhance your network with a suite of powerful software features. With both Gigabit Ethernet and SFP ports, it offers flexible connectivity for copper or fiber uplinks, making it an indispensable tool for any modern network infrastructure.

Intelligent Features and Versatile Connectivity The GPEN21 is more than a simple power injector; it's a smart device running SwitchOS Lite, providing robust network management capabilities. You can take control of your network with features like interface management and monitoring, GPEN link fault detection, comprehensive VLAN support, SNMP reporting, and even basic traffic shaping.

This allows for a granular level of control and monitoring previously unavailable in such a compact device. Whether you need to power an optical module for a fiber uplink or provide PoE to an Ethernet uplink for devices like MikroTik's GPeR and netPower products, the GPEN21 offers the flexibility you need.

Robust Design for Professional Deployments Built for professional environments, the GPEN21 features a secure, wall-mountable design. Its clever casing allows for versatile cable routing'either through the bottom opening for a clean look or directly into the wall for a completely concealed installation.

It accepts a wide input voltage range of 12-57V through a standard DC jack or via PoE-in (802.3af/at), and provides passive PoE output to power upstream devices. Engineered to perform in demanding conditions, it operates in temperatures from -20C to 70C, ensuring reliability when it matters most. Technical Specifications General Product Code GPEN21 Operating System SwitchOS Lite Switch Chip Model 88E6341 Dimensions 92 x 104 x 24 mm Tested Ambient Temperature -20C to 70C MTBF Approximately 100,000 hours at 25C Powering Number of DC Inputs 2 (DC jack, PoE-IN) DC Jack Input Voltage 12-57 V PoE In 802.3af/at PoE In Input Voltage 12-57 V Max Power Consumption 30 W Max Power Consumption (without attachments) 3 W Cooling Type Passive PoE Out PoE-out Ports Ether2 PoE Out Passive PoE up to 57V Max Out per Port (Input < 30 V) 850 mA Max Out per Port (Input > 30 V) 625 mA Max Total Out 850 mA Connectivity 10/100/1000 Ethernet Ports 2 Number of 1G Ethernet ports with PoE-out 1 SFP Ports 1
