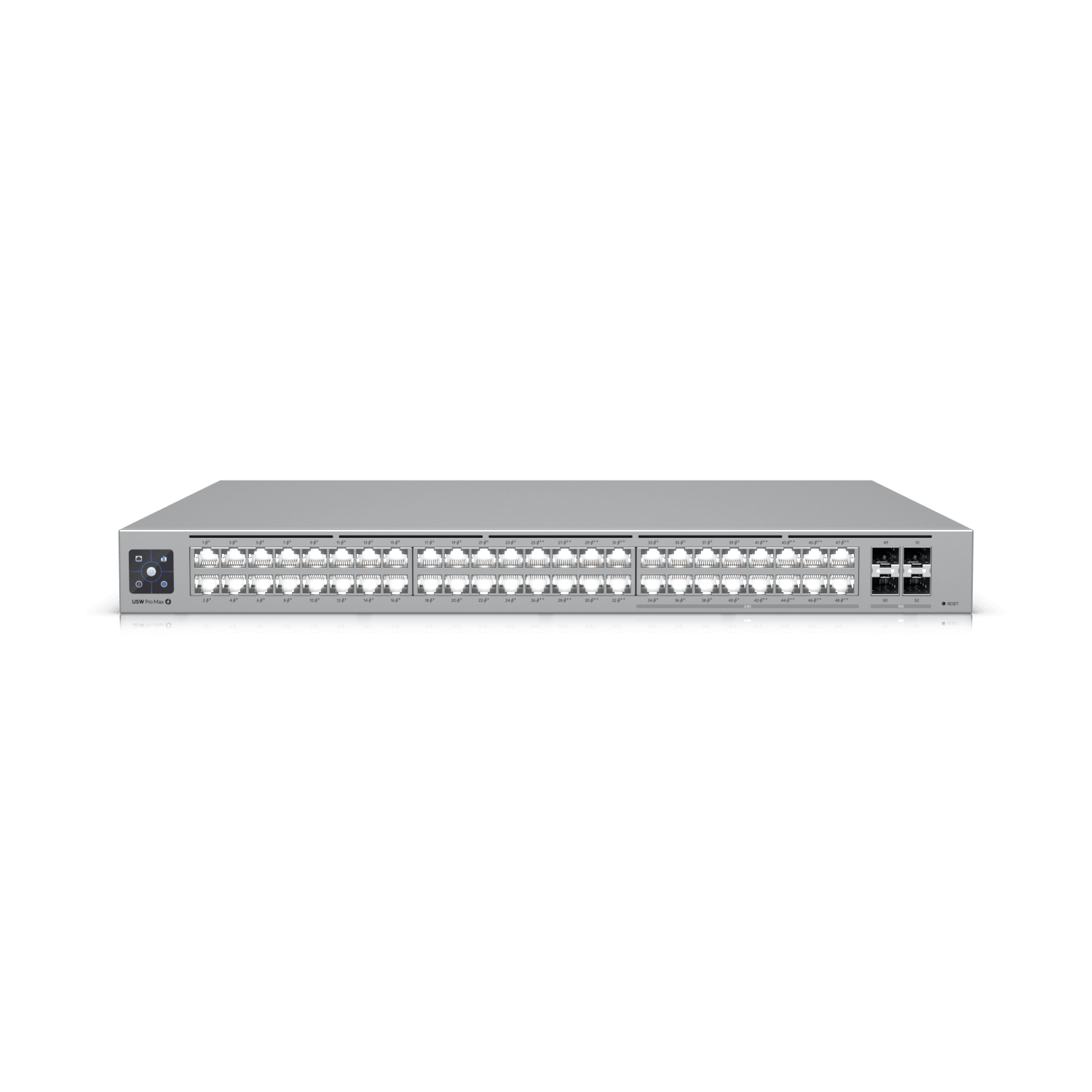

Ubiquiti Unifi Pro Max 48 48-PORT 2.5G Poe++ Layer 3 Switch

Features

Description

Next-Generation Performance for Demanding Networks Elevate your network infrastructure with the Ubiquiti UniFi Pro Max 48 PoE, a high-density, Layer 3 switch engineered for unparalleled performance and intelligent management. This switch is the ultimate solution for powering high-performance access points, advanced IP cameras, and other PoE-dependent devices.

It combines multi-gigabit speeds, a massive 720W PoE budget, and innovative Etherlighting technology to handle the most demanding enterprise environments. High-Density, High-Power Connectivity The USW-Pro-Max-48-PoE is equipped with 48 ports to connect your entire network. It features 16 ports running at 2.5 GbE for your most bandwidth-intensive devices, while the other 32 ports provide reliable Gigabit Ethernet.

With a mix of high-power 60W PoE++ and 30W PoE+ across both gigabit and multi-gigabit ports, you have the flexibility to power a wide array of devices. Four 10G SFP+ uplink ports ensure you have high-speed fiber connectivity to your network core, eliminating bottlenecks. Innovative Etherlighting for Simplified Management Revolutionize port identification and diagnostics with Ubiquiti's groundbreaking Etherlighting technology.

These ports illuminate to instantly indicate location, speed, link status, and native VLAN configuration, dramatically simplifying troubleshooting and network administration. When paired with UniFi Etherlighting Patch Cables, you get an optimally bright and clear visual representation of your network connections.

Robust and Ready for Anything Beyond its impressive port capacity, the Pro Max 48 PoE is a feature-rich Layer 3 switch, offering inter-VLAN routing, static routing, and DHCP services to build a scalable and efficient network. It boasts a 224 Gbps switching capacity and a 112 Gbps total non-blocking throughput, ensuring smooth data transfers under heavy load.

For maximum reliability, it includes a DC power backup input, ready to connect to the UniFi Power Backup system for uninterrupted operation. Comprehensive Specifications Mechanical Dimensions 442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7") Weight Without mounting brackets: 6.2 kg (13.7 lb)With mounting brackets: 6.3 kg (13.9 lb) Enclosure Material SGCC Steel Hardware Networking Interfaces (32) GbE RJ45 Ports(16) 1/2.5 GbE RJ45 Ports(4) 1/10G SFP+ Ports PoE Interfaces (24) PoE+ GbE Ports(8) 60W PoE++ GbE Ports(8) PoE+ 2.5 GbE Ports(8) 60W PoE++ 2.5 GbE Ports Management Interface Ethernet In-Band Total Non-Blocking Throughput 112 Gbps Switching Capacity 224 Gbps Forwarding Rate 166.656 Mpps Power Method (1) Universal AC input, 100-240V AC(1) USP-RPS DC input Power Supply AC/DC, Internal, 820W Total Available PoE 720W Max.

PoE Wattage per Port PoE+: 30WPoE++: 60W Max. Power Consumption 100W (Excluding PoE output) Display (1) 1.3" LCM Touchscreen Operating Temperature -5 to 40 C (23 to 104 F) Certifications CE, FCC, IC Software Management Application UniFi Network (Version 8.0.24 and later) Layer 2 Features IGMP snooping, STP/RSTP, Port isolation, Storm control, Voice VLAN, Port mirroring, LACP aggregation, 802.1X control, Jumbo Frames, and more.

Layer 3 Features Inter-VLAN routing, Static routing, DHCP relay, DHCP server.
