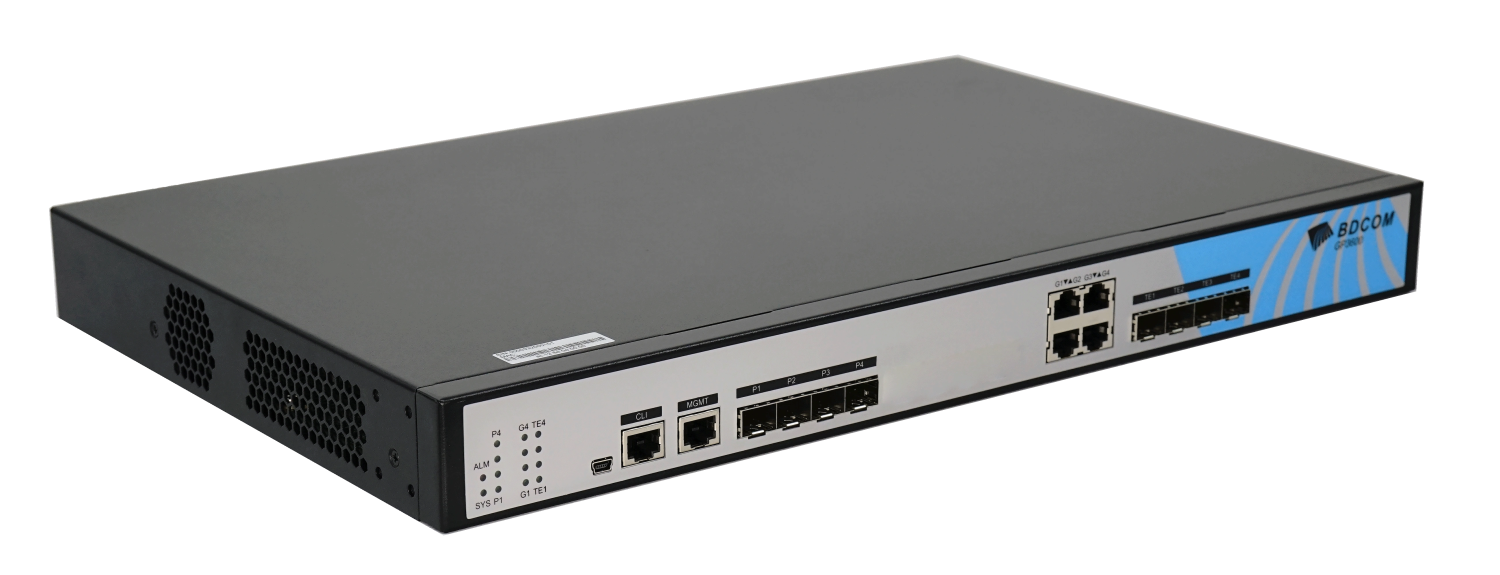

GP3600-04-2AC 4-PORT Gpon Olt With 10GE Uplinks And Redundant Ac Power

High-Performance Fiber Optic Headend for Modern Networks The BDCOM GP3600-04-2AC is a compact, high-performance 4-port GPON Optical Line Terminal (OLT) designed for scalable and reliable Fiber-to-the-x (FTTx) applications. Housed in a 1U rack-mountable chassis, this OLT is an ideal solution for internet service providers and enterprises looking to deliver high-speed broadband services.

It features a robust 126Gbps backplane and a powerful combination of uplink ports, including four Gigabit RJ45 ports and four 10GE SFP+ ports, ensuring flexible and high-capacity connectivity to your core network. With built-in dual AC power supplies, it provides essential redundancy for uninterrupted operation and maximum network uptime.

Key Features: High-Density GPON Ports: Equipped with 4 fixed GPON ports, supporting a high splitting ratio of up to 1:128 per port. Versatile Uplink Options: Offers 4x GE RJ45 ports and 4x 10GE SFP+ ports for flexible network integration and future-proofing. Built-in Redundancy: Features dual internal 100-240V AC power supplies for enhanced reliability and continuous service.

Standards Compliance: Fully compliant with ITU-T G.984/G.988 standards, ensuring interoperability with third-party ONUs. Advanced Layer 2/3 Functions: Supports a rich set of features including VLAN, Spanning Tree (STP/RSTP/MSTP), QoS, and multicast support for efficient network management. Robust Security: Provides comprehensive security features like ACLs, MAC limiting, port isolation, packet storm control, and data encryption to protect your network.

Comprehensive Management: Easily manage the device through various interfaces including CLI, Telnet, SSH, HTTP, SSL, and SNMP. Technical Specifications Category Specification Model GP3600-04-2AC Service Interface 4 x GPON SFP Ports 4 x GE RJ45 Uplink Ports 4 x 10GE SFP+ Uplink Ports PON Standard ITU-T G.984/G.988 Splitting Ratio 1:128 System Capacity Backplane Bandwidth: 126Gbps DRAM: 512MB Flash: 32MB MAC Table 64K Management Ports 1 x RJ45 Console Port, 1 x Mini-USB Console Port, 1 x Out-of-Band Management Port Layer 3 Functions Static routing, RIPv1/v2, OSPF Power Supply Dual Internal AC Power Supplies, 100-240V Max Power Consumption 50W Physical Form Factor: 1U Rack-mountable Dimensions (W x D x H): 440.5mm x 280mm x 44.5mm Weight: 3.8 kg Environmental Operating Temperature: 0C to 45C Storage Temperature: -40C to 70C Operating Humidity: 10% to 85% (non-condensing)
