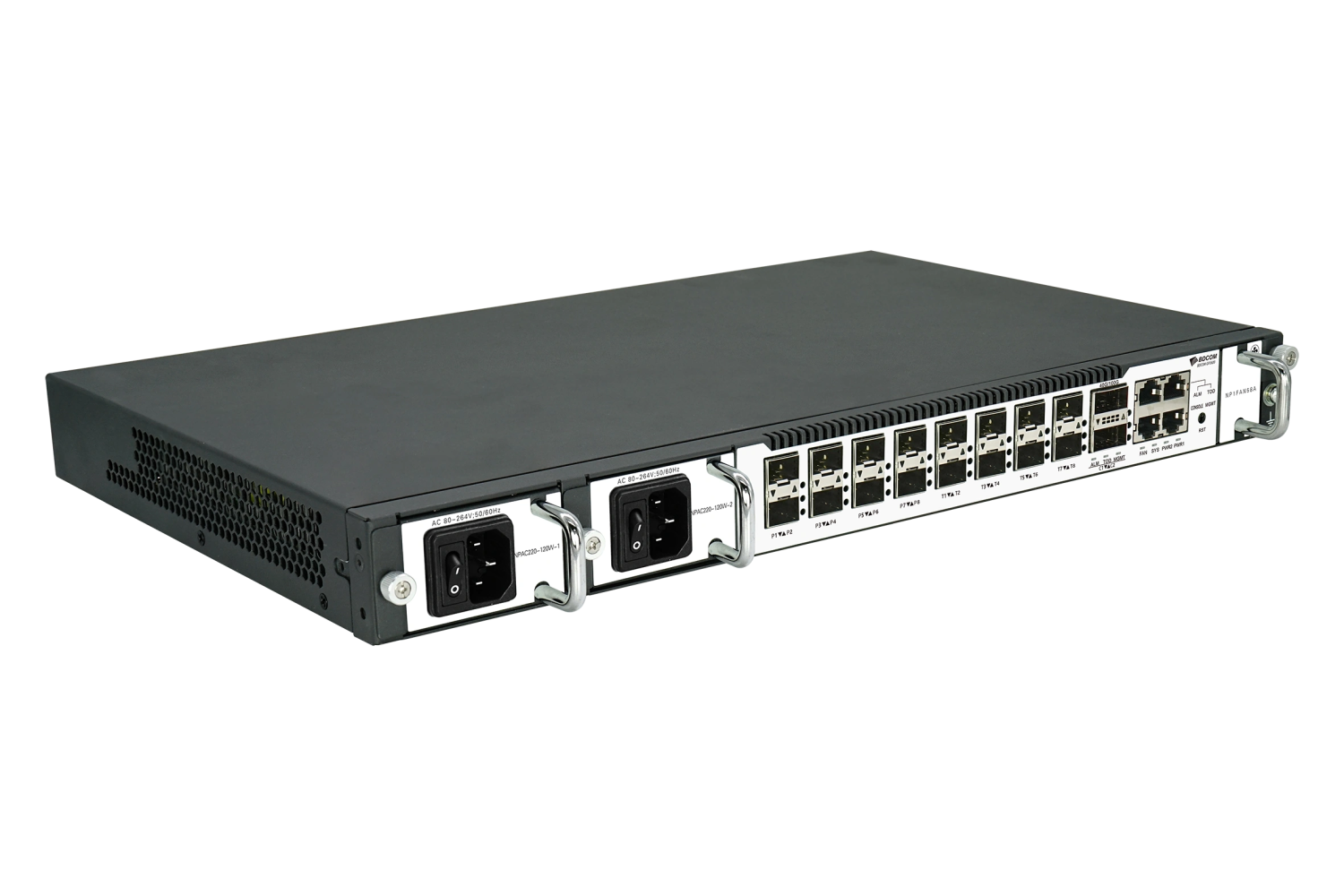

GP3600-8CGP 8-PORT Xgs-pon gpon Combo L3 Olt Headend

Unlock Next-Generation Fiber Speeds with a Versatile and Powerful OLT Future-proof your network with the BDCOM GP3600-8CGP, a high-performance 8-port XGS-PON/GPON combo Layer 3 OLT headend. This compact, 1U rack-mounted unit is engineered for flexibility and scalability, allowing for a seamless transition from GPON to the blazing-fast speeds of XGS-PON.

It's an ideal solution for service providers looking to deliver next-generation broadband services, as well as for enterprise and campus networks demanding robust and reliable fiber connectivity. The GP3600-8CGP supports a hybrid network of GPON, XG-PON, and XGS-PON ONUs, minimizing your initial investment while providing a clear upgrade path.

High-Capacity and Feature-Rich The BDCOM GP3600-8CGP is not just about speed; it's also packed with advanced features for superior network management and quality of service. It complies with ITU-T G.984/G.987/G.988 standards and fully supports the CTC2.0 standard, ensuring interoperability with a wide range of third-party ONUs.

This OLT offers a comprehensive suite of Layer 2 and Layer 3 functions, including static routing, RIPv1/v2, OSPF, and BGP. Advanced QoS capabilities, such as DBA and SLA, allow for granular control over bandwidth and service levels. Security is also a top priority, with features like L2~4 ACL, MAC limitation, and anti-DDoS attack mechanisms to protect your network from threats.

Comprehensive Specifications Feature Specification PON Ports 8 x XGS-PON/GPON Combo Ports Uplink Ports 8 x 10G/1G SFP+ Ports, 2 x 100G/40G QSFP28 Ports Management Ports 1 x RJ45 Console Port, 1 x Out-of-Band Management Port Standards Compliance ITU-T G.984/G.987/G.988, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3ad, China Telecom GPON Technical Requirement CTC2.0 Layer 3 Functions Static Route, RIPv1/v2, OSPF, BGP VLAN Port/IP/Protocol/MAC-based VLAN, 4K VLAN, QinQ, Flexible QinQ Multicast L2 Multicast, IGMP Snooping, MLD Snooping, Fast-leave QoS IEEE 802.1p CoS, WRR, SP, FIFO, DBA, SLA Security L2~4 ACL, Flow-based ACL, MAC limitation, Port isolation, Packet storm control, Anti-DDoS attack Management CLI, Telnet, SSH, HTTP, SSL, SNMP Power Supply AC: 100~240V, DC: 36~72V, 2 Power Slots Max Power Consumption 100W Dimensions (WxDxH) 440 x 270 x 44 mm Weight (empty) 4.3 kg Operating Temperature -10C to 50C Operating Humidity 10% to 95% (non-condensing) Certifications CE, FCC, ROHS
