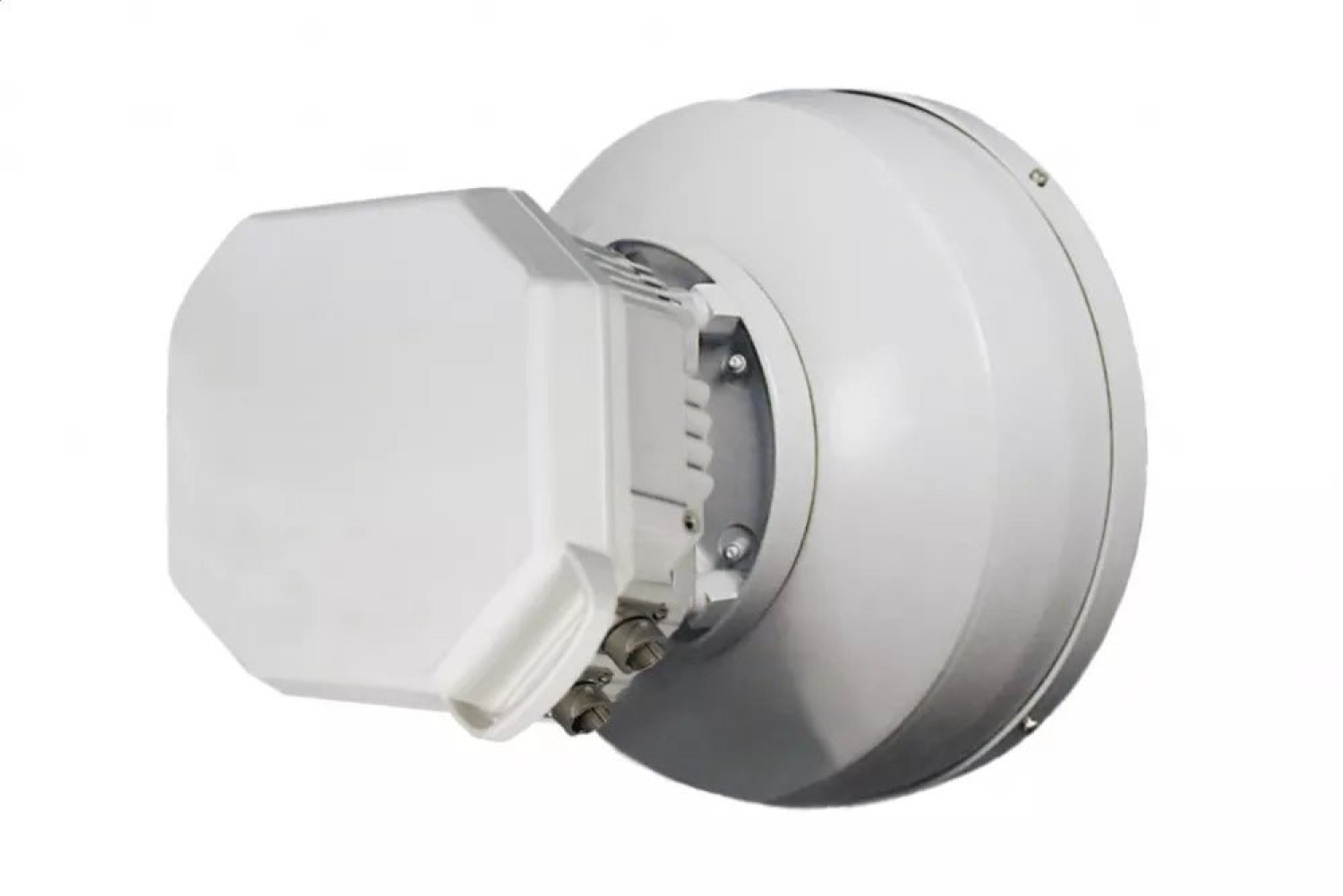

Siae Alfoplus 17GHZ Microwave Radio Link

Features

Description

High-Performance, Future-Proof Backhaul Solution The SIAE ALFOplus 17GHz is a carrier-grade, full-outdoor microwave radio link designed for high-performance IP backhaul networks. This zero-footprint solution is engineered for rapid rollout of 3G and LTE networks, offering an optimal blend of performance, compactness, and low power consumption.

Initially configured for 100Mbps throughput, this link provides a seamless, pay-as-you-grow upgrade path to 500Mbps, ensuring your network can scale with demand. The ALFOplus is optimized for TCP/IP transport and supports advanced packet synchronization techniques, making it an ideal choice for mobile backhaul, high-capacity LAN-to-LAN connections, and last-mile fiber extensions.

Advanced Features for Ultimate Reliability Engineered by SIAE Microelectronics, the ALFOplus series is renowned for its reliability and efficiency. This system supports high modulation schemes up to 1024 QAM to maximize spectral efficiency and data capacity. The hardware features a versatile interface configuration on each Outdoor Unit (ODU), including one SFP port for fiber connectivity and one copper port for standard Ethernet, providing flexibility in network design and deployment.

Its full-outdoor design minimizes infrastructure requirements and simplifies installation. Key Benefits: Scalable Capacity: Start with 100Mbps and easily upgrade via software license to 500Mbps as your network traffic grows. Carrier-Grade Performance: Delivers best-in-class performance with high modulation (1024 QAM) and low power consumption.

Flexible Connectivity: Each unit is equipped with both SFP and Copper Ethernet ports for versatile network integration. Zero Footprint: The full-outdoor design eliminates the need for indoor shelter space, reducing total cost of ownership. Optimized for IP Networks: Ideal for Any-G mobile backhaul and compliant with LTE traffic needs.

Comprehensive Technical Specifications Radio & Transmission Frequency Band 17 GHz (Unlicensed/License-Exempt Band) Initial Capacity 100 Mbps (Full Duplex) Maximum Capacity Up to 500 Mbps (via software license upgrade) Modulation Schemes 4 QAM to 1024 QAM, Adaptive Channel Bandwidth 7 to 56 MHz Interfaces & Networking Ports per ODU 1x 10/100/1000BaseT (RJ-45), 1x SFP (Optical 1000Base-LX/SX) Management In-band Ethernet channel, HTTPS, SNMP v1/v2c/v3 Ethernet Features 802.1p QoS, VLAN (802.1Q with QinQ), Jumbo Frames up to 10K Power & Environmental Power Supply Power over Ethernet (PoE Injector included) Power Consumption ~26W (Typical for unlicensed frequencies) Operating Temperature -33C to +55C (-27F to +131F) Physical Design Full Outdoor Unit (ODU) Dimensions (approx.) 23 x 23 x 8 cm (Radio only, without antenna)
